2-24 Core GYXTW Uni-Tube Outdoor Fiber Optic Cable for Communication
2-24 Core GYXTW Uni-Tube Outdoor Fiber Optic Cable for Communication
2-24 Core GYXTW Uni-Tube Outdoor Fiber Optic Cable for Communication
2-24 Core GYXTW Uni-Tube Outdoor Fiber Optic Cable for Communication
Specifications
Brand Name :
KNOFC
Model Number :
GYXTW 2-24 Core
Certification :
ISO9001/CE
Place of Origin :
China
MOQ :
1km
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
200000M/Week
Delivery Time :
8-10 working days
Packaging Details :
Wooden drum
Fiber type :
G652D or as your request
Fiber brand :
YOFC / Corning or as your request
Fiber count :
2-24 core
Strength member :
Steel wire
Outer sheath material :
HDPE
Application :
Aerial / Duct
Life expectancy :
more than 30 years
Operating Temperature :
-40°C to+70°C
Description

2-24 Core GYXTW Uni-Tube Outdoor Fiber Optic Cable for Communication

Description:

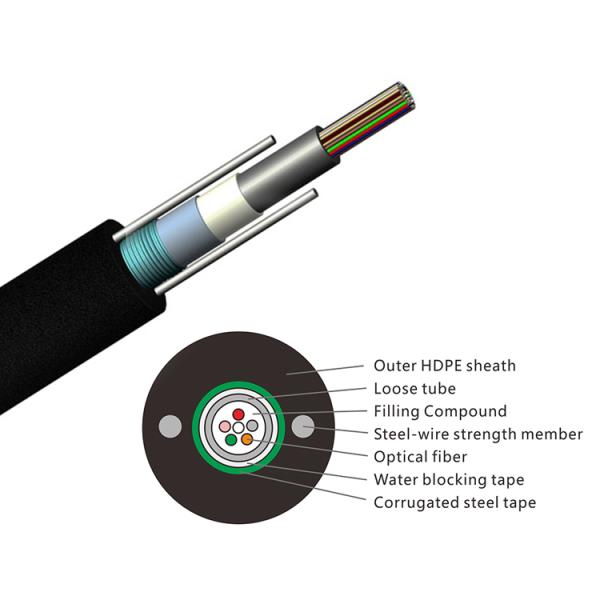

The fibers are positioned in a loose tube made of a high modulus plastic.The tubes are filled with a waterresistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.

Characteristics:

1. Good mechanical and temperature performance.

2. High strength loose tube that is hydrolysis resistant.

3. Special tube filling compound ensure a critical protection of fiber.

4. Crush resistance and flexibility.

5. PSP enhancing moisture-proof.

6. Two parallel steel wires ensure tensile strength.

7. Small diameter, light weight and friendly installation.

8. Long delivery length.

Application:

1. Adopted to outdoor distribution.

2. Suitable for aerial, pipeline laying method.

3. Long distance and local area network communication.

Optical Fiber Characteristic:

2-24 Core GYXTW Uni-Tube Outdoor Fiber Optic Cable for Communication

Cable Mechanical characteristic:

Cable type Diameter (mm) Weight (kg/km) Tensile strength
Long/short term (N)		 Crush Resistance Long/Short Term(N/100mm) Bending radius
Dynamic/static (mm)		 Storage temperature ( ℃ )
GYXTW-2~24 8 70 600/1500 300/1000 20D/10D -20~+70

2-24 Core GYXTW Uni-Tube Outdoor Fiber Optic Cable for Communication
