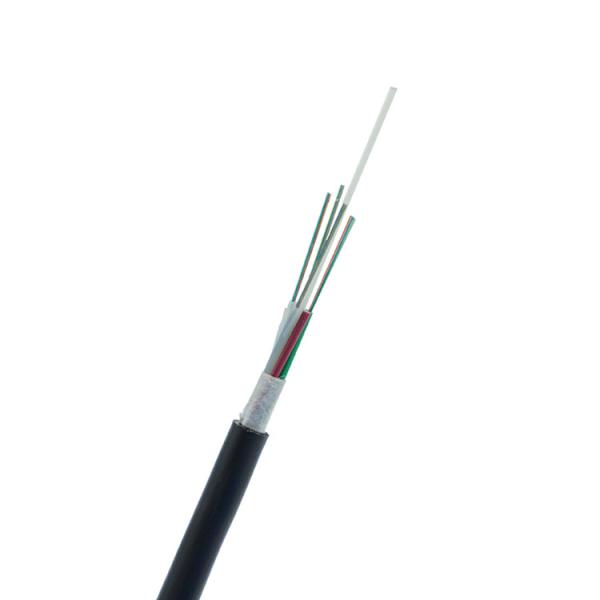

Non metal Loose Tube FRP Central Strength Member GYFTY Fiber Cable 72 Core
Non metal Loose Tube FRP Central Strength Member GYFTY Fiber Cable 72 Core
Specifications
Brand Name :
KNOFC
Model Number :
GYFTY 72 Core
Certification :
ISO9001/CE
Place of Origin :
China
MOQ :
1km
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
200000M/Week
Delivery Time :
8-10 working days
Packaging Details :
Wooden drum
Fiber type :
G652D or as your request
Fiber brand :
YOFC / Fiberhome / Corning
Fiber count :
2-288 core
Strength member :
FRP
Protective layer :
Water blocking tape
Outer sheath material :
HDPE
Application :
Aerial / Duct
Life expectancy :
more than 30 years
Operating Temperature :
-40°C to+70°C
Description

Non metal Loose Tube FRP Central Strength Member GYFTY Fiber Cable 72 Core

Description:

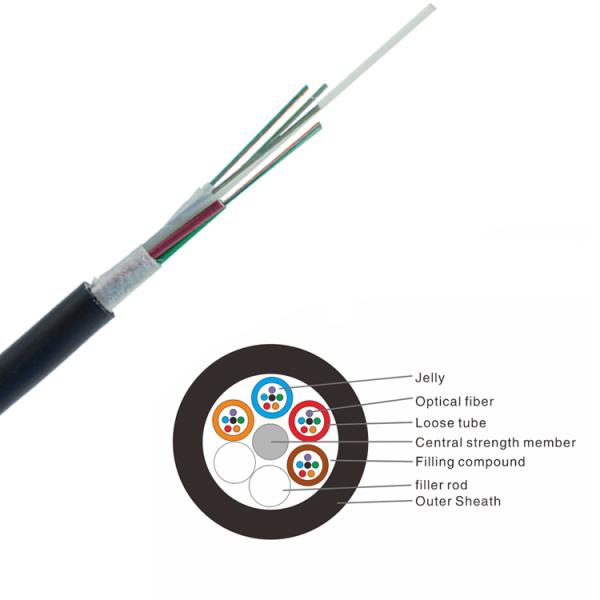

The fibers,250um,, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a waterresistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. The cable core is wrapped with the water blocking tape to protect it from water ingress,,the cable is completed with a PE sheath.

Characteristics:

1. Good mechanical and temperature performance.
2. High strength loose tube that is hydrolysis resistant.
3. Special tube filling compound ensure a critical protection of fiber
4. Crush resistance and flexibility.
5. The following measures are taken to ensure the cable watertight:
a.Single Fiber Reinforced Plastic as the central strength member
b. Loose tube filling compound
c. 100% cable core filling

Application:

1. Adopted to outdoor distribution.
2. Suitable for aerial, pipeline laying method.
3. Long distance and local area network communication.

Optical Fiber Characteristic:

Fiber Type G.652D,125.0+-1.0μm
Mode Field Diameter 9.2+-0.2μm at 1310 nm
Cladding Diameter 125+-1μm
Cladding Non-Circularity <=1%
Coating Diameter 245+-10μm
Attenuation Coefficient <=0.38dB/km at 1310nm,<=0.22dB/km at 1550nm
Chromatic Dispersion <=3.5ps/nm/km at1285-1330nm,<=18ps/nm/km at 1550nm
Zero Disperson Wavelength 1300-1322nm
PMD Coefficient <=0.2ps/√km

Cable Mechanical characteristic:

Cable type Diameter (mm) Weight (kg/km) Tensile strength
Long/short term (N)		 Crush Resistance Long/Short Term(N/100mm) Bending radius
Dynamic/static (mm)		 Storage temperature ( ℃ )
GYFTY-2~60 9.0 85 600/1500 300/1000 20D/10D -20~+70
GYFTY-62~72 10 95
GYFTY-74~96 11 110
GYFTY-98~120 13 125
GYFTY-122~144 15 145
