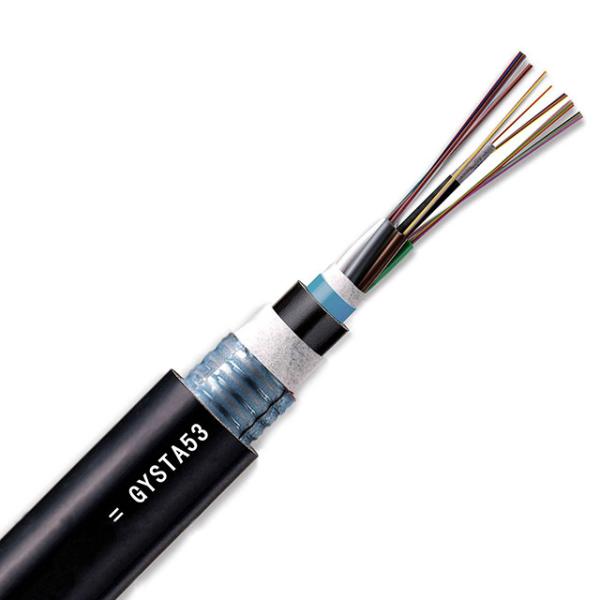

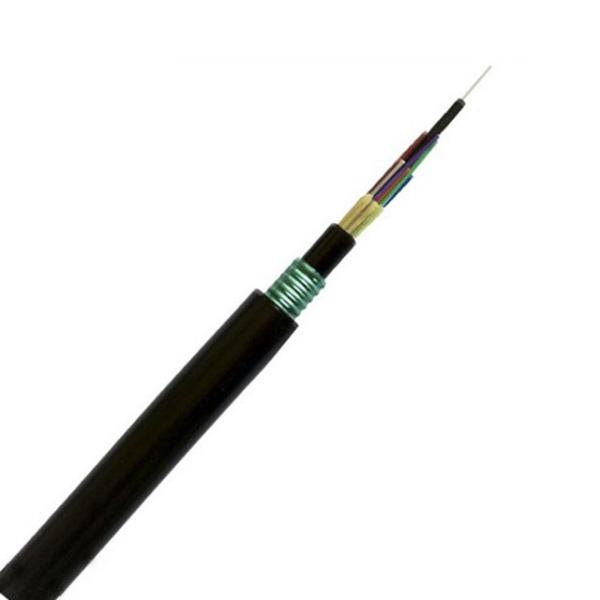

GYTA53 Outdoor Fiber Optic Cable With PE Sheath Direct Burial
GYTA53 Outdoor Fiber Optic Cable With PE Sheath Direct Burial
GYTA53 Outdoor Fiber Optic Cable With PE Sheath Direct Burial
GYTA53 Outdoor Fiber Optic Cable With PE Sheath Direct Burial
GYTA53 Outdoor Fiber Optic Cable With PE Sheath Direct Burial
GYTA53 Outdoor Fiber Optic Cable With PE Sheath Direct Burial
GYTA53 Outdoor Fiber Optic Cable With PE Sheath Direct Burial
GYTA53 Outdoor Fiber Optic Cable With PE Sheath Direct Burial
GYTA53 Outdoor Fiber Optic Cable With PE Sheath Direct Burial
GYTA53 Outdoor Fiber Optic Cable With PE Sheath Direct Burial
GYTA53 Outdoor Fiber Optic Cable With PE Sheath Direct Burial
GYTA53 Outdoor Fiber Optic Cable With PE Sheath Direct Burial
Specifications
Place of Origin :
Guangdong, China
Brand Name :
HYG
Model Number :
G-039
Supply Ability :
100000 Meter/Meters per Day
Packaging Details :
International Standard package
MOQ :
1000 Meter/Meters
Price :
$1.00 - $300.00 / Meter
Model name :
GYTA53/GYTY53
Type :

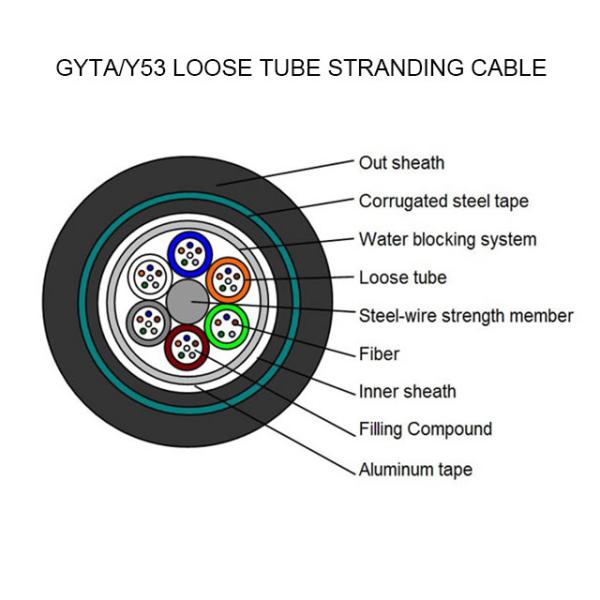

Loose tube stranding cable
Outer sheath :
PE
COLOR :
black
Application :
Direct-burial
Fiber Core :
Up to 288 fibers
Port :
SHENZHEN
Description

GYTA53 Underground Outdoor Armored Direct Buried Fiber optical cable

Technical Parameters:
Cable Count Out sheath
Diameter		 Weight Minimum allowable Tensile Strength
(N)		 minimum allowable Crush Load
(N/100mm)		 Minimum Bending Radius
(MM)		 Storage
temperature
(MM) (KG) short term long term short term long term short term long term (℃)
24 14.5 210.00 3000 1000 3000 1000 20D 10D -40+60
36 14.5 210.00 3000 1000 3000 1000 20D 10D -40+60
42 14.5 210.00 3000 1000 3000 1000 20D 10D -40+60
48 15.5 245.00 3000 1000 3000 1000 20D 10D -40+60
60 15.5 245.00 3000 1000 3000 1000 20D 10D -40+60
72 15.5 245.00 3000 1000 3000 1000 20D 10D -40+60
144 19.0 395.00 1500 600 1000 300 20D 10D -40+60
288 25.0 620.00 1500 600 1000 300 20D 10D -40+60

Application:

1.Long-distance communication,

2.LAN

3.Moisture-proof and rodent-proof

HYG Optical Fiber Cable:

1. Low dispersion and attenuation.
2. Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties.
3. Anti-electromagnetism ability.
4. Use high intensity aramid yarn as anti-pulling component, strong, light and small cable diameter, suitable for different climatic situation and installation span.
5. Special AT (Anti-Track) outer sheath protection, strong anti-electro-corrosion ability.

Company Information

GYTA53 Outdoor Fiber Optic Cable With PE Sheath Direct BurialGYTA53 Outdoor Fiber Optic Cable With PE Sheath Direct Burial

After-Sales Service

GYTA53 Outdoor Fiber Optic Cable With PE Sheath Direct Burial

OEM & ODM is accepted, any questions welcome to contact us.

Sales Manager: Joyce Tan

Phone: 86 13066935405

Tel: 86 755 29467029

Email: hyglink[a]hyglink.com

Skype: joycetan75

Weichat: tan_aihua
