ADSS Multimode Outdoor Fiber Optic Cable 2 - 288 Cores Self - Support Type
ADSS Multimode Outdoor Fiber Optic Cable 2 - 288 Cores Self - Support Type
ADSS Multimode Outdoor Fiber Optic Cable 2 - 288 Cores Self - Support Type
ADSS Multimode Outdoor Fiber Optic Cable 2 - 288 Cores Self - Support Type
Specifications
Brand Name :
Haiyu Optical
Model Number :
HYG-FOC-Out-ADSS-005
Certification :
CE, ISO9001, Rohs
Place of Origin :
China
MOQ :
1km
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram, L/C
Supply Ability :
100KM per day
Delivery Time :
3-5 working days
Packaging Details :
Wooden roll, 2km/roll
Product Name :
Outdoor Multimode Fiber Optic Cable
Fiber type :
G652D,single mode or multi mode
Type :
All-dielelectric Self-Support cable
Fiber count :
2-288 core
Installation :
Self-support Aerial
Sheath material :
PE
Application :
Long distance communication, LAN
Length :
1 km 2km 3km per drum
Description

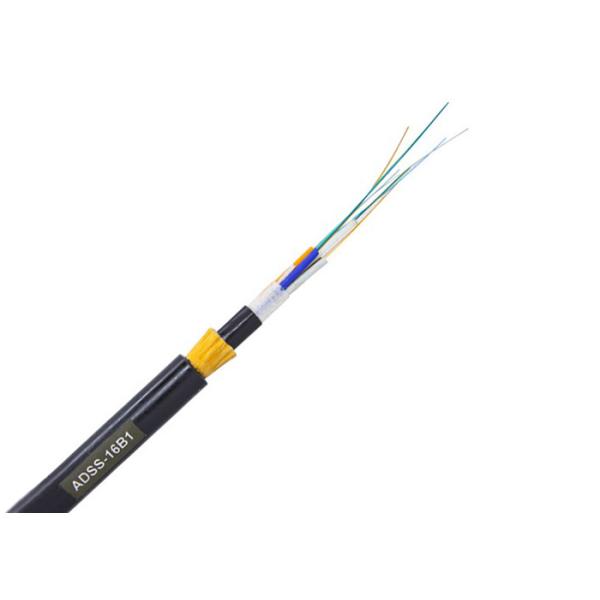

ADSS All-dielelectric Self-Support Outdoor Multimode Fiber Optic Cable

Description:

This ADSS All-dielelectric Self-Support cable has small diameter, light weight, max reach to 1500m span and good insulated performance. It is apply for long distance communication and LAN.

Specification:

Technical Parameters:
Cable Count Out sheath
Diameter		 Weight Minimum allowable Tensile Strength
(N)		 minimum allowable Crush Load
(N/100mm)		 Minimum Bending Radius
(MM)		 Storage
temperature
(MM) (KG) short term long term short term long term short term long term (℃)
4 12.5 125.00 1500 600 1000 300 20D 10D -40+70
24 14.5 175.00 1500 600 1000 300 20D 10D -40+70
48 15.5 190.00 1500 600 1000 300 20D 10D -40+70
96 17.2 236.00 1500 600 1000 300 20D 10D -40+70
144 17.9 249.00 1500 600 1000 300 20D 10D -40+70

The parameters designed according to detailed requirement

Features:

  1. Loose tube
  2. Non-metallic strength member
  3. High flexible amaid yarn
  4. Can work at electric field ≤25KV/m in a long period.

Application:

  1. Self-support aerial.
  2. Long distance and local area network communication (LAN).

ADSS Multimode Outdoor Fiber Optic Cable 2 - 288 Cores Self - Support Type
