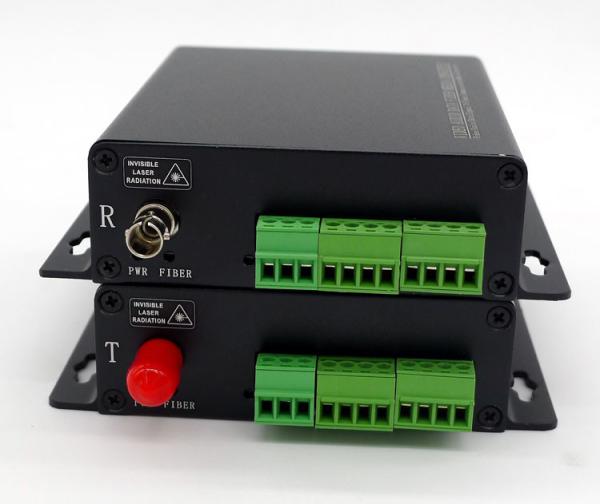

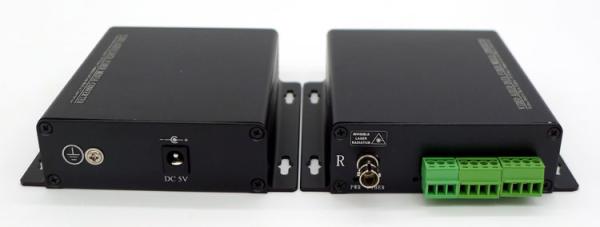

Audio fiber extender,2-ch BIDI Balanced audio over fibe extender,balanced audio over a singlemode ST fibre
Audio fiber extender,2-ch BIDI Balanced audio over fibe extender,balanced audio over a singlemode ST fibre
Audio fiber extender,2-ch BIDI Balanced audio over fibe extender,balanced audio over a singlemode ST fibre
Audio fiber extender,2-ch BIDI Balanced audio over fibe extender,balanced audio over a singlemode ST fibre
Specifications
Brand Name :
Beyondopto or Neutraity
Model Number :
BY-2AAB
Certification :
CE, FCC
Place of Origin :
ShenZhen,China
MOQ :
1 pairs
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
1000 pairs per month
Delivery Time :
1-3 working days
Packaging Details :
paper box packing for export,including 1 x transmitter,1 x receiver,1 x user manual,2 xpower adapter
Wavelength :
1310nm&1470nm~1610nm
Optic fiber :
50/125u multimode，62.5/125u multimode，9/125u single mode
Optical connector :
FC、ST、SC (optional)
Distance :
0~2KM (MM) / 0~20KM/40KM/60KM/80KM (SM)
Dimensions: :
175mm x 154mmx 30mm
Shipping Weight: :
1.5kg
Description

Specifications

Opitcal:

Wavelength 1310nm&1470nm~1610nm
Output Power -14~ -8dBm / -5~0dBm
Optic fiber 50/125u multimode,62.5/125u multimode,9/125u single mode
Rx sensitivity -30dBm
Optical connector FC,ST,SC (optional)
Distance 0~2KM (MM) / 0~20KM/40KM/60KM/80KM (SM)

Balanced Audio

Number of Channels 4
Connector Standard terminal lead
Input / Output Impedance 10K Ohm
Input capacitance LINE inputs 10 pF
Max input/output voltage 3.0Vp-p
Frequency Response 10 Hz～24kHz @±3dB
Sample Rates From 48kHz
SNR > 80dB

Electrical & Mechanical

Input Power Requirements: DC 5V@2A
Power Adapter: AC 90V~240V
Power Consumption: < 3W
Stand-Alone Dimensions:

175mm × 154mm × 30mm
Shipping Weight: (include Transmitter & Receiver ) 1.5kg

Environmental

Operating Temperature: -20°C ~ +75°C
Storage Temperature: -40°C ~ +85°C
Relative Humidity: 0% ~ 95% (non-condensing)
MTBF: >100,000 hours

System connection diagram:

Audio fiber extender,2-ch BIDI Balanced audio over fibe extender,balanced audio over a singlemode ST fibre
