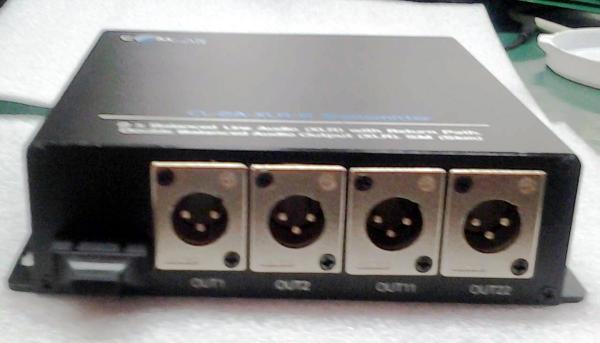

Banlanced/unbanlanced broadcast line-level audio to fiber converter
Banlanced/unbanlanced broadcast line-level audio to fiber converter
Specifications
Place of Origin :
ShenZhen
Brand Name :
beyond
Certification :
CE,FCC
Model Number :
BY-AUDIO-SM001
MOQ :
1 pair
Price :
Negotiable
Packaging Details :
standard packing for export
Delivery Time :
7 working days after payment
Payment Terms :
T/T,100% payment before production
Supply Ability :
10000 pairs per month
Description
Banlanced broadcast Independent Audio over one Fiber

Banlanced/unbanlanced broadcast line-level audio to fiber converte digitally transmits four independent audio channels over one multimode or single mode fiber at 850, 1310 or 1550 nm. It is ideal for Rental, Staging, Education and Broadcast applications.

Features:
No adjustments; pure digital processing and transmission
24 bit/96 kHz sampling; maximum audio level +24 dBu 20 Hz to 20 kHz frequency response
Line level, balanced or unbalanced audio operation Indicator
LEDs monitor audio signals and power
Wide range power supply allows operation from low voltage AC and DC sources
Card version fills one slot in 6000A card cage
System consists of transmitter and receiver unit; card or box version. Each end, plus power supply, must be purchased separately
RoHS Compliant
Audio Specifications:
Number of audio Channels 4,banlanced or unbanlanced
Frequency Response +0/-0.5 db,20HZ-20kHZ
Bits-per-Sample/Sampling Rate 24 bits; 96 kHz
Maximum Audio Level +24 dBu
SNR (A-Weighted) 95 dB
Channel Phase Differential +0.1o
System Latency
200 uS + fiber cable propagation
delay (typically 5 uS/km of fiber)
Crosstalk Min. 95 dB (1 kHz)
Input Impedance
600 Ohms terminated;
>24 k Ohms unterminated
Output Impedance 50 Ohms
Audio Connectors 3-pin XLR connectors
LED Indicators Power; Audio Present (per channel);
Power Requirements* 9-24 volts AC or DC, 5 watts
Operating Temperature Range -35o to +60o C
Optical Connectors ST/FC/SC optional
