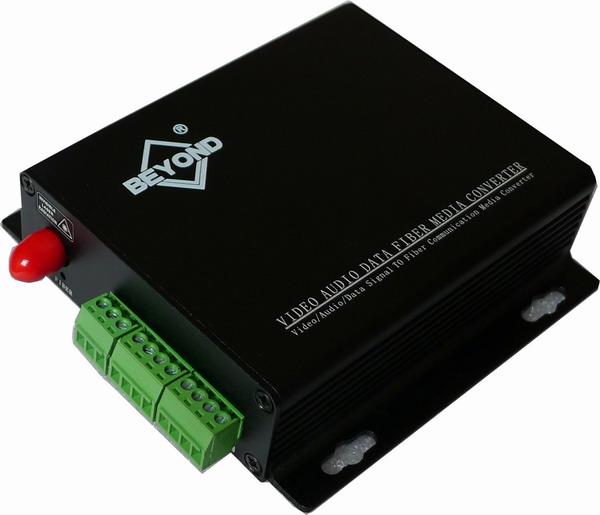

Broadcast 8 channel Fiber Optic Audio Multiplexer,8-CH BI-DI audio to fiber converter,-8-CH Audio over fiber
Broadcast 8 channel Fiber Optic Audio Multiplexer,8-CH BI-DI audio to fiber converter,-8-CH Audio over fiber
Specifications
Place of Origin :
shenzhen
Brand Name :
beyond
Model Number :
BY-audio-SM008
Certification :
ISO9001
Price :
Negotiable
Packaging Details :
STANDRED PACKAGE
Delivery Time :
3 Working days
Payment Terms :
T/T
Supply Ability :
10000 PER MONTH
MOQ :
1 Pair
Description

Description

8 channel simplex or 4 channel duplex Audio Multiplexer

Beyondopto Audio over Fiber series support 1~32 Channel simplex or 16 channel duplex 24-bit digitally encoded broadcast quality audio over one multi-mode or single-mode optical fiber. These fiber optic transmitter and fiber optic receiver are typically used in applications for Rental, Staging, Theater, Stadiums, Theme Parks, Broadcast/Studio, CCTV audio and Professional AV applications, etc, and are available for stand-alone or rack-mount installations. FC, ST or SC optical connectors is optional.
Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status.

Specifications

Audio

Input/output Impedance

600ohm(unbalance)

Max input/output voltage

3.0Vp-p

Frequency Response

10 Hz～29kHz @±3dB

SNR

> 70dB

Connector

Standard terminal lead

Electrical & Mechanical

Input Power Requirements:

DC 5V@2A

Power Adapter:

AC 90V~240V

Power Consumption:

< 3W

Stand-Alone Dimensions:

104mm × 104mm × 28mm

Shipping Weight:

(include Transmitter & Receiver ) 0.8kg

Environmental

Operating Temperature:

-20°C ~ +75°C

Storage Temperature:

-40°C ~ +85°C

Relative Humidity:

0% ~ 95% (non-condensing)

MTBF:

>100,000 hours

Ordering Information & Optical Specifications

Model

Fiber Mode

Connecter

Audio

Channel

Optical Power Budget

Max Transmission

Distance

Transmitter

Receiver

BAT010XX

BAR010XX

SM

FC/ST/SC

1

18dB

25km

BAT020XX

BAR020XX

SM

FC/ST/SC

2

18dB

25km

BAT040XX

BAR040XX

SM

FC/ST/SC

4

18dB

25km

BAT080XX

BAR080XX

SM

FC/ST/SC

8

18dB

25km

BAT0H0XX

BAR0H0XX

SM

FC/ST/SC

16

18dB

25km

Note:
• The Optical Power Budget data fit Mulit-mode(62.5/125 μm),Single-Mode(9/125 μm).
• When using 50/125 μm multimode fiber, subtract 3 dB from the optical power budget.
• Optical transmission distance is limited to optical loss of the fiber and any additional loss introduced by connectors, splices and patch panels.
• Maximum transmission distance is also limited by fiber bandwidth.
• Power adapter is manufactured by third party and is supplied with fitted screw-terminal output cables.Power adapter included (for standalone) US, European, UK or Australian power plug.
• Please feel free to consult factory for any special requirement and customization.

• Due to continuous improvement, all fiber optic transmission systems and video over fiber product specifications are subject to change without further notice.
