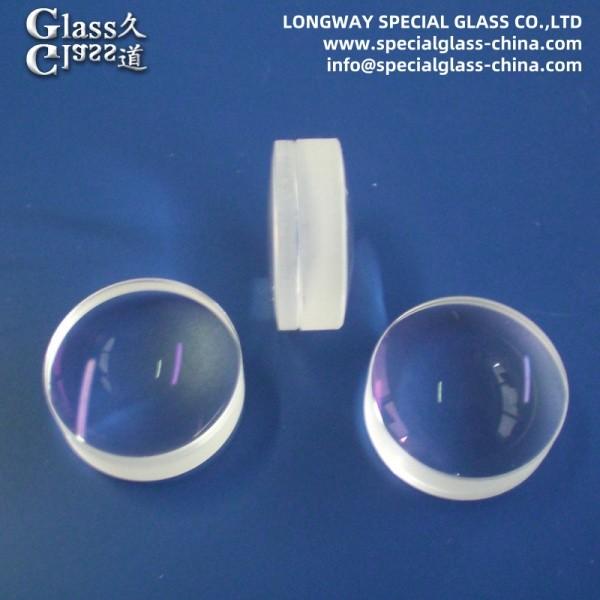

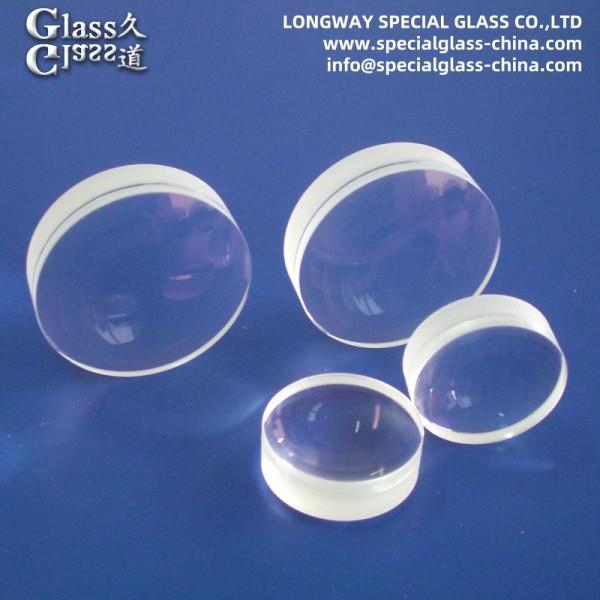

Precision AR-coating Achromatic Glass Lenses For Color-corrected Binoculars

• Material:

  • Achromatic Doublet: Precisely bonded pair of optical glass elements.

  • Crown Glass (Low Dispersion): Typically types like BK7, K5, or specialty low-dispersion glasses (e.g., Schott N-BK7, Ohara S-BSL7). Possesses a low Abbe number.

  • Flint Glass (High Dispersion): Typically types like F2, SF2, or specialty flints (e.g., Schott N-SF2, Ohara P-SFHT53). Possesses a high Abbe number.

  • Cement: High-purity, transparent optical adhesive with matching refractive index and thermal stability.

• Key Properties:

  • Chromatic Aberration Correction: The primary function. Combines crown and flint glasses to bring two primary wavelengths (typically red & blue) to a common focus, drastically reducing color fringing (e.g., purple halos).

  • High Transmission & Contrast: Multi-layer Anti-Reflective (AR) coatings applied to all air-glass surfaces. Minimizes surface reflections (<0.5% per surface typical), maximizing light throughput (>99% total possible), enhancing image brightness and contrast, especially in low light.

  • Precision Figure & Surface Quality: Tightly controlled spherical surfaces (often λ/4 or better wavefront error) and low surface roughness (<5Å RMS) minimize scatter and distortion.

  • Accurate Centration & Alignment: Critical for sharp imagery; elements cemented and mounted with minimal decenter and tilt error.

  • Durability: Hard, environmental AR coatings resist abrasion, humidity, and cleaning.

• Core Function:

  • To provide sharp, high-contrast, color-accurate images in binocular objectives or eyepieces.

  • Achromatism: Corrects longitudinal chromatic aberration across the visible spectrum.

  • AR Coating: Maximizes light transmission, minimizes ghosting/flare from internal reflections, and boosts contrast.

• Primary Applications:

  • High-Quality Binoculars: Essential for premium birding, hunting, astronomy, marine, and general-use binoculars demanding sharp, bright, color-neutral views.

  • Spotting Scopes & Telescopes: Used in objectives and eyepieces for terrestrial and astronomical viewing.

  • Riflescopes & Optical Sights: Critical for clear target acquisition and color fidelity.

  • Precision Optical Instruments: Microscopes, surveying equipment, specialized imaging systems requiring color correction and high light throughput.

  • Photographic Lenses (Historical/Specialized): Found in some classic or specialized lenses where chromatic correction and transmission were paramount.

• Manufacturing Considerations (Precision Aspect):

  • Precision Glass Selection: Matching Abbe numbers and partial dispersion is crucial for effective correction.

  • Precision Surfacing & Cementing: Ultra-fine grinding/polishing and meticulous alignment during cementing are mandatory.

  • Advanced AR Coating: Precise deposition of multiple dielectric layers tailored for broadband visible light performance (e.g., "V-coating" for deep transmission valleys). Coating uniformity is vital.

  • Strict Tolerances: Tight control on radii, thickness, centration, wedge, and surface quality throughout the process.

In essence: Precision AR-coated achromatic glass lenses are the cornerstone of high-performance visual optics like binoculars. By combining two specific glass types into a doublet, they correct chromatic aberration for true color rendition. Advanced multi-layer AR coatings applied to all surfaces dramatically increase light transmission, boost contrast, and eliminate distracting reflections. This synergy delivers the bright, sharp, color-faithful, and high-contrast images demanded by discerning users in nature observation, sports, astronomy, and professional applications.
