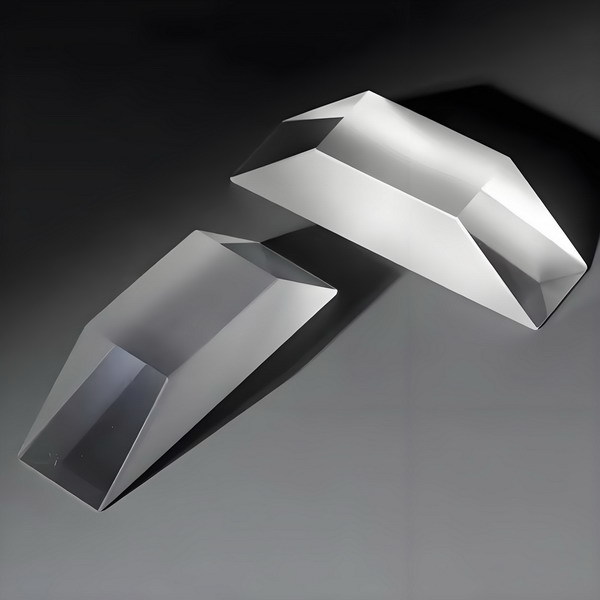

Durable Optical Dove Prism In High-power Laser Systems
Durable Optical Dove Prism In High-power Laser Systems
Specifications
Brand Name :
Longway Glass
Model Number :
LW16042863
Certification :
ISO9001
Place of Origin :
Shanghai, China
MOQ :
1000 pieces
Price :
NEGOTIATION
Payment Terms :
T/T,Western Union
Supply Ability :
31000 Pieces per Month
Packaging Details :
electrolytic capacitor paper,foam,carton
Structure :
Prism
Material :
Optical glass
Surface :
Polished
Transmission :
over 90%
Coating :
available
Processing :
grinding and polishing
Application :
Optics and laser
OEM :
available
Description



Durable Optical Dove Prism In High-power Laser Systems


Material‌
1.High-grade optical glass‌ (e.g., N-BK7, fused silica) for thermal stability and low absorption.
2.Robust coatings‌: Anti-reflective (AR) or dielectric coatings to enhance durability and minimize energy loss in high-power laser environments.


Properties‌
1.Thermal resistance‌: Withstands high-power laser beams without deformation.
2.Precision-polished surfaces‌: λ/10 surface flatness for minimal wavefront distortion.
3.Low coefficient of thermal expansion (CTE)‌: Ensures dimensional stability under thermal stress.
4.High laser-induced damage threshold (LIDT)‌: Resists degradation from intense laser exposure.


Function‌
1.Image rotation‌: Rotates images by 180° without altering parity, critical for beam steering and alignment.
2.Beam displacement‌: Maintains beam path direction while offsetting spatial position.
3.Polarization preservation‌: Minimizes birefringence effects for coherent laser systems.


Applications‌
1.Laser machining‌: Beam delivery in industrial cutting/welding systems.
2.Medical lasers‌: Endoscopic imaging and surgical laser alignment.
3.Defense & aerospace‌: Target designation and LIDAR systems.
4.Scientific research‌: Interferometry and spectroscopy setups.


Item Optical Prism
Material Optical glass, Qurartz glass, borosilicate glass,
Diameter Tolerance +0/-0.15 mm
Thickness Tolerance +/-0.15mm
Processed by grinding, polishing
Surface Quality 80/50,60/40,40/20
Material Quality no scratches and air bubble
Transmission above 90%
Chamfer 0.1-0.5 mm x 45°
Surface Coating Available
