50X-1000X Polarizing Metallurgical Microscope For Material Analysis Petrology Research And Coating Analysis
50X-1000X Polarizing Metallurgical Microscope For Material Analysis Petrology Research And Coating Analysis
50X-1000X Polarizing Metallurgical Microscope For Material Analysis Petrology Research And Coating Analysis
50X-1000X Polarizing Metallurgical Microscope For Material Analysis Petrology Research And Coating Analysis
50X-1000X Polarizing Metallurgical Microscope For Material Analysis Petrology Research And Coating Analysis
50X-1000X Polarizing Metallurgical Microscope For Material Analysis Petrology Research And Coating Analysis
Specifications
Brand Name :
Phidix
Model Number :
M14105
Certification :
IATF16949，CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000 PCS/Month
Delivery Time :
15-20 Work Days
Packaging Details :
1 PC/Carton
Color :
White
Customization :
OEM, ODM
Packing :
1 PC/Carton
Warranty :
1 year
Drawtube :
Trinocular
Theory :
Metallurgical Microscope
Lead-time :
15-20 Work Days
Eyepiece :
PL10X
Application :
Industrial Inspection
Magnification :
50X-1000X
Optical system :
Infinite Optical System
Illumination :
100W halogen lamp or LED
Camera :
Optional
Description

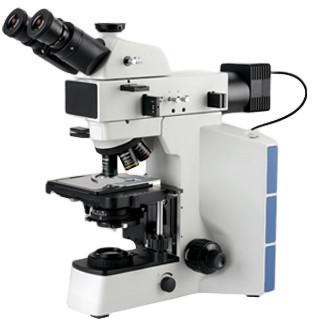

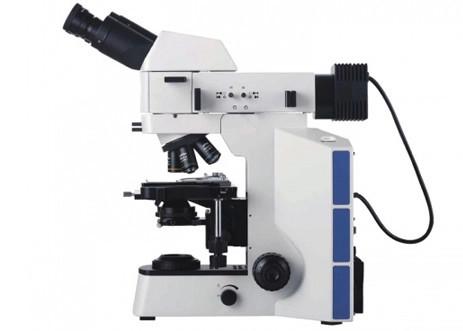

50X-1000X Polarizing Metallurgical Microscope for Material Analysis Petrology Research and Coating Analysis

M14105 is special designed for PCB cross section analysis, layer thickness measurement, LCD checking, metal or nonmetal material analysis etc.

Features:

  • It is an upgrade cost-performance ratio microscope with excellent optical system.
  • Parfocality makes it easy to use.
  • It has large numerical aperture and higher brightness, higher light transmittance.
  • Polarizer and analyzer can realize polarization.

Item Description / Value M14105
Observation: Bright field, polarizing. ●
Optical system: Infinity plan achromatic optical system ●
View tube:

Trinocular, 30° inclined, 360° rotating.

IPD adjustment: 54mm~75mm.

Diopter adjustment: ± 5 diopters.

Splitting ratio: 100:0 or 50:50.

 ●
Eyepiece: High eye level WF PL10X /22mm. ●

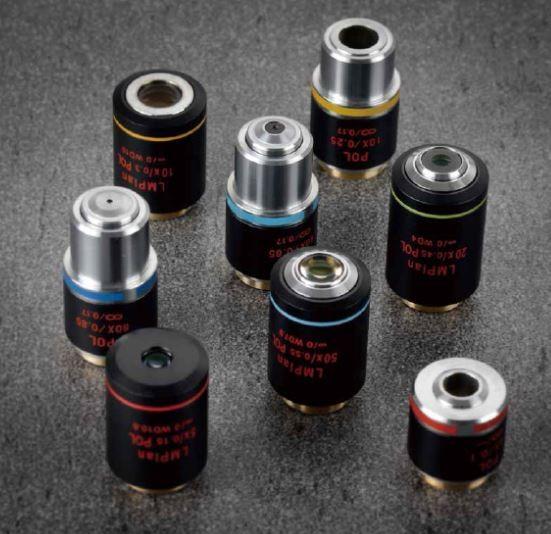

Objective: Infinity plan achromatic long working distance metallurgical objective: Standard: 5X, 10X, 20X, 50X； ●
Optional: 100X ○
Parfocal distance: 45mm ●
Nosepiece: Reversed Quintuple (5-position). ●
Stage:

Double layer mechanical stage: 175*145mm.

Moving range: 76mm*42mm, accurancy: 0.1mm.

Right hand gang control for X and Y direction.

Reflecting metal stage plate/Reflecting and transmission glass stage plate.

 ●
Focusing system:

Coaxial coarse and fine focusing system.

Tightness and height limitation of coarse regulation are adjustable.

Fine adjustment accuracy: 0.001mm.

Coarse adjustment: 28mm.

With focusing stopper to protect the objective and specimen.

 ●
Illumination:

Transmitted & reflected illumination, the two illuminations can work at the same time.

Reflected illumination: 5W LED, with presetting center and adjustable field stop and aperture stop.

Transmitted illumination: 5W warm light LED, with presetting center and adjustable field stop and aperture stop.

 ●
Condenser: Transmission condenser N.A 0.9, with aperture iris diaphragm. ●
Polarizing kit: Polarizer and analyzer. ●
Camera adapter: 0.5X or 1X C-Mount. ●
Digital camera: Optional. ○
Power supply: AC100-240V, 50/60Hz. ●

Note: ● means standard, ○ means optional

50X-1000X Polarizing Metallurgical Microscope For Material Analysis Petrology Research And Coating Analysis
