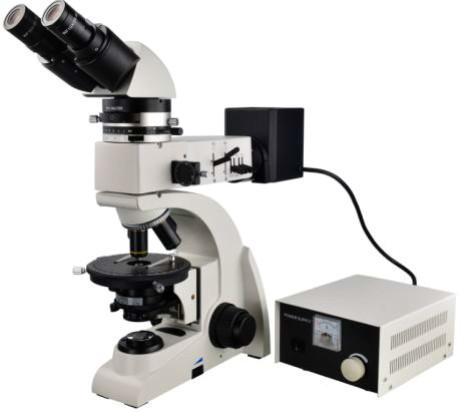

60X 800X Optical Polarizing Microscope Binocular Metallurgical Materials Science
60X 800X Optical Polarizing Microscope Binocular Metallurgical Materials Science
60X 800X Optical Polarizing Microscope Binocular Metallurgical Materials Science
60X 800X Optical Polarizing Microscope Binocular Metallurgical Materials Science
Specifications
Brand Name :
Phidix
Model Number :
M14110
Certification :
IATF16949，CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000 PCS/Month
Delivery Time :
15-20 Work Days
Packaging Details :
1 PC/Carton
Color :
White
Customization :
OEM, ODM
Warranty :
1 year
Drawtube :
Binocular
Theory :
Polarizing Metallurgical Microscope
Lead-time :
15-20 Work Days
Magnification :
40X-800X
Eyepiece :
WF10X/20mm
Focusing :
Coaxial Coarse & Fine
Nosepiece :
5-Positions
Objective :
4X, 10X, 40X, 60X
Description

40X-800X Binocular Trinocular Metallurgical Polarizing Microscope for materials science applications

M14110 40X-800X Binocular Trinocular Metallurgical Polarizing Microscope for materials science applications. M14110 Polarizing Microscopes for materials science applications have the specific objectives and other tools like incident illuminations, polarization and compensation filters. This allows precise observation of materials like metals, plastics, minerals, asbestos, glass, wood and chemical materials. M14110 is equipped with rotatable stages and stain-free objectives for polarized light observation.

Features:

  • Diversified binocular and trinocular view heads to choose.
  • Illumination system includes transmitted light and reflected light.
  • Rotatable stages.
  • Stain-free objectives for polarized light observation

Item Specification M14110A M14110B M14110C M14110D M14110E M14110F
Observation Tube: Binocular head inclined at 30° ● ● ●
Trinocular head inclined at 30° ● ● ●
Interpupillary distance: From 50-75mm ● ● ● ●
Eyepiece: WF10X/20mm eyepieces, WF10X/20mm reticule eyepiece ●● ●● ●● ●● ●● ●●
Objectives:

stain-free objectives

4X, 10X, 40X(spring), 60X(spring)

 ● ●

Plan metallurgical objectives

5X 10X, 20X, 50X(spring)

 ● ● ● ●
Stage: rotatable stage φ 140mm ● ● ● ● ● ●
Focusing: Coaxial focusing knob, fine focusing is graduated in increment of 1um ● ● ● ● ● ●
Condenser: Height adjustable Abbe N.A. 1.25 condenser with iris diaphragm and 360°- swing out - rotatable polarizer ● ● ● ● ● ●
Illumination: Transmitted light 6V 20W ● ●
Reflected light 12V 50W ● ●

Reflected light 12V 50W

Transmitted light 6V 20W

 ● ●
Power supply: 100-240V ● ● ● ● ● ●
Standard accessories: Dust cover, fuse, power cord ● ● ● ● ● ●
Optional accessories φ160mm rotatable stage ○ ○ ○ ○ ○ ○
80X plan metallurgical objective ○ ○ ○ ○ ○ ○
3W LED for transmitted light ○ ○ ○ ○ ○ ○
5W LED for reflected light ○ ○ ○ ○ ○ ○
C-mount adapter ○ ○ ○
digital camera adapter ○ ○ ○
3M/5M/10M/16M/HD camera ○ ○ ○

Note: ● means standard, ○ means optional

60X 800X Optical Polarizing Microscope Binocular Metallurgical Materials Science60X 800X Optical Polarizing Microscope Binocular Metallurgical Materials Science
