WF20X Forensic Comparison Microscope Binocular 5W Led Illumination Microscope
WF20X Forensic Comparison Microscope Binocular 5W Led Illumination Microscope
WF20X Forensic Comparison Microscope Binocular 5W Led Illumination Microscope
WF20X Forensic Comparison Microscope Binocular 5W Led Illumination Microscope
Specifications
Brand Name :
Phidix
Model Number :
M16105
Certification :
IATF16949，CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000 PCS/Month
Delivery Time :
15-20 Work Days
Packaging Details :
1 PC/Carton
Color :
White
Customization :
OEM, ODM
Warranty :
1 year
Head :
Binocular
Theory :
Comparison Microscope
Lead-time :
15-20 Work Days
Eyepiece :
WF10X/22mm, WF20X/12mm
Objective :
0.8X, 1.25X, 2X, 3.2X, 4.8X
Auxiliary Lens :
0.4X, 2.0X
Camera :
3.0M Digital
Adapter :
0.5X C-Mount
Magnification :
3.2X~288X
Nosepiece :
5-Position
Description

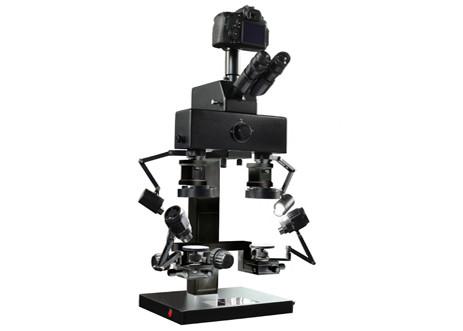

3.2X~288X Binocular Step Zoom Forensic Microscope

M16105 3.2X~288X Binocular Step Zoom Forensic Microscope. M16105 comparison microscope is very convenient for the criminal investigation application.

Features:

- Flexible holder for easy positioning.

- Halogen 12V50W fan cooling light source and LED 5W source.

- Widely used in the field of judicial identification.

Item Description / Value
Head: Binocular 45° inclined, 48-75mm
Magnification: 3.2X~288X
Eyepiece: High eye level WF10X/22mm, WF20X/12mm
Objective: Step Zoom Lens 0.8x,1.25x,2x,3.2x,4.8x
Auxiliary Lens: 0.4X, 2.0X
View Field: Full Left, Full Right, Split Image, Overlapping Image, 2mm-60mm
Nosepiece: 6-Position
Working distance: 101mm
View Field: 2.3~62mm
Stage:

*Moving Range: X-55mm, Y-55mm, Z-65mm, 0°-45° Inclination Adjustable;

* Joint Left/Right Moving Range 62mm, Joint Up/Down Range 80mm;

* Round Stage, 360° Rotating;

* Bullet Holder 2 Sets;
Light source:

*5W LED+12V/50W Halogen+108 LEDS Ring Light;

* UV Filter, Filter Red/Blue/Yellow/Green
View Field: Full Left, Full Right, Split Image, Overlapping Image, 2mm-60mm
Camera: Built-in 3.0M High Resolution Color CCD Camera
Adapter:

*0.5x C-Mount;

* Photo Adapter For Cannon SLR
Function Panel: Touch Type, User-Friendly Design, Easy To Operate And Accurate
Power: Power Supply 80-240V

WF20X Forensic Comparison Microscope Binocular 5W Led Illumination Microscope
