1000X Trinocular Binocular Forensic Comparison Microscope Criminal Investigation Material
1000X Trinocular Binocular Forensic Comparison Microscope Criminal Investigation Material
1000X Trinocular Binocular Forensic Comparison Microscope Criminal Investigation Material
1000X Trinocular Binocular Forensic Comparison Microscope Criminal Investigation Material
Specifications
Brand Name :
Phidix
Model Number :
M16110
Certification :
IATF16949，CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000 PCS/Month
Delivery Time :
15-20 Work Days
Packaging Details :
Carton
Color :
White
Customization :
OEM, ODM
Warranty :
1 year
Drawtube :
Trinocular
Theory :
Fluorescence Microscope
Eyepiece :
WF10X /18mm
Lead-time :
15-20 Work Days
Magnification Ratio :
40X-1000X
Objective :
4X/10X/40X/100X
Fluorescence Filter :
CHROMA B/G(USA brand)
Light Source :
12V 50W halogen lamp
Description

Binocular Trinocular Comparison Microscope For Criminal Investigation Material Evidence Identification And Teaching

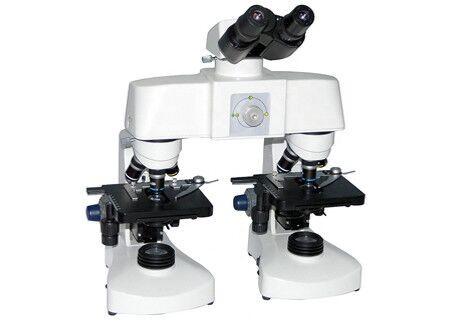

M16110 Binocular Trinocular Comparison Microscope For Criminal Investigation Material Evidence Identification And Teaching. The M16110 comparison microscope can observe the images of the left and right objects in the same way, so that the two objects can be enlarged and compared by docking and overlapping, and the tiny swallow differences between them can be distinguished, such as bullet marks, tool marks, fingerprints, seals, words, coins, printed matter, etc. It is an ideal instrument for the public security technical department to make criminal investigation material evidence, document identification and teaching. And it is also suitable for other departments that need to compare and identify objects.

Features:

  • The comparison head has many different observable states: all left images, all right images, some left and right images, overlapping left and right images, etc.
  • The comparison head is provided with a right magnification fine-tuning compensation mechanism.
  • The total magnification of comparison head is 1x.
  • The field of view of comparison head is larger than 20mm, and the comparison head is suitable for 195 objective lens.
  • The objective lens and magnification of the head-mounted biological microscope can be 4X, 10X, 20X, 40X, 50X, 60X and 100X.
  • The comparison head can be monocular head, binocular head and trinocular head.

Item Specification M16110A M16110B
Observation Tube: Binocular head inclined at 30° ●
Trinocular head inclined at 30° ●
Eyepiece: WF10X/22mm, WF20X/11mm, WF30X/6mm ●● ●●
Objectives: 0.64X-4.5X, zoom ratio 1: 6.5, objective lens: 2X ● ●
Bridge magnification: 1.2X ● ●
magnification of photographic interface More than 2X ● ●
Illumination: 12V50W air-cooled strong light source, 8mm diameter hard optical fiber cold light source ● ●
working distance: 100mm ● ●
Stage: Stage size: 135X135mm, Moving range: X/51mm Y/51mm Z/54mm ● ●
Horizontal linkage range of stage: 50mm, two stages can scan synchronously. ● ●
Coarse lifting range: 50mm ● ●
Power supply: 220V AC input, 24V DC regulated output, in line with international safety standards. ● ●
Optional accessories: Embedded digital color camera system with 3 million pixels and resolution of 1024X768, supports USB digital or VGA/AV/DAI output, and is equipped with digital camera interface. ○

Note: ● means standard, ○ means optional
