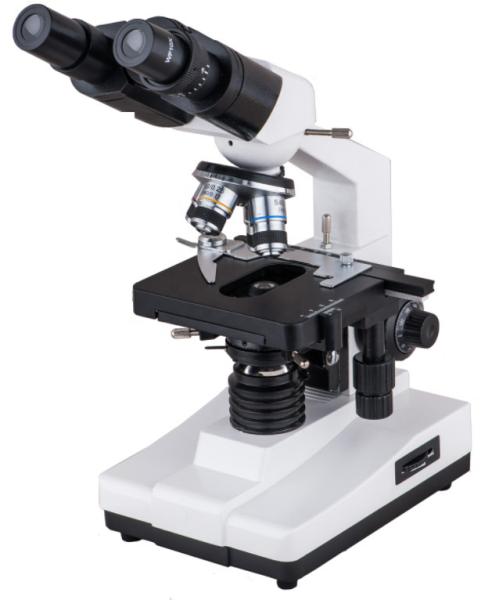

40-1600X Biological Lcd Screen Microscope With Video Output Bright Field
40-1600X Biological Lcd Screen Microscope With Video Output Bright Field
40-1600X Biological Lcd Screen Microscope With Video Output Bright Field
40-1600X Biological Lcd Screen Microscope With Video Output Bright Field
Specifications
Brand Name :
Phidix
Model Number :
M12108
Certification :
IATF16949，CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000 PCS/Month
Delivery Time :
15-20 Work Days
Packaging Details :
1 PC/Carton
Color :
White
Customization :
OEM, ODM
Packing :
1 PC/Carton
Warranty :
1 year
Drawtube :
Binocular
Theory :
Biological Microscope
Lead-time :
15-20 Work Days
Application :
Hospital, education & research
Eyepiece :
WF10X or 16X
Objective :
4X/10X/40X/100X
Magnification :
40X1600X
Illumination :
6V/20W Halogen Lamp or LED Lamp
Optical System :
160mm Plan Achromatic Optical System
Description

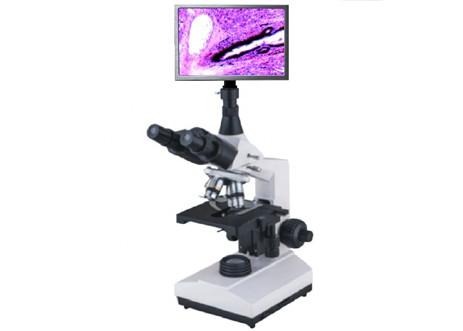

LCD Screen Biological Microscope 40-1600X Bright Field

M12108, brand new ergonomic design, stable and reliable system structure, easier and more comfortable operation are suitable for various working environments.

Features:

- Well equipped with LCD Screen, easy use for basic research and teaching experiments.

- Halogen lamp or LCD cold light, brightness adjustable.

Model Specification/Value M12108A M12108B
Optical system Achromatic correction system. ● ●
View tube

Binocular tube, 30° inclined, 360° rotating.

Adjustable ocular diopter, IPD adjustment: 55-75mm.

 ●

Trinocular tube, 30° inclined, 360° rotating.

Adjustable ocular diopter, IPD adjustment: 55-75mm.

 ●
Magnification 40-1000x, Max 1600x. ● ●
Eyepiece WF10X/18mm. ● ●
WF16X ○ ○
Nosepiece 4-position/quadruple revolving nosepiece. ● ●
Objective

Achromatic objective lens:

4X/ 0.1, 10X/0.25, 40X/0.65(spr.), 100X/1.25(spr., oil).

 ● ●
Focusing Coaxial coarse & fine adjusting knobs on both sides. Coaxial adjustment: 25 mm. Increments 0.002 mm. ● ●
Illumination Transmission illumination system, high light LED lamp, intensity adjustable. ● ●
Condenser Abbe condenser with iris diaphragm, NA1.25. ● ●
Stage

Fixed Mechanical double layer, stage size: 115x120mm.

X-Y moving range: 60×30mm, Moving precision: 0.2mm.

2 clicks for fix samples.

 ● ●
LCD 13 inch HD LCD monitor. ●
Accessories Dust cover, manual. ● ●
Power supply AC 100-240V, 50/60Hz. ● ●

Note: ● means standard, ○ means optional

M12108A

40-1600X Biological Lcd Screen Microscope With Video Output Bright Field
