LCD Microscopy Biology Discussion WF10X 400X Bright Field Microscope Biology Discussion
LCD Microscopy Biology Discussion WF10X 400X Bright Field Microscope Biology Discussion
LCD Microscopy Biology Discussion WF10X 400X Bright Field Microscope Biology Discussion
LCD Microscopy Biology Discussion WF10X 400X Bright Field Microscope Biology Discussion
Specifications
Brand Name :
Phidix
Model Number :
M12117
Certification :
IATF16949，CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000 PCS/Month
Delivery Time :
15-20 Work Days
Packaging Details :
1 PC/Carton
Color :
White
Customization :
OEM, ODM
Packing :
1 PC/Carton
Warranty :
1 year
Drawtube :
Trinocular
Theory :
Biological Microscope
Lead-time :
15-20 Work Days
Eyepiece :
WF10X
Illumination System :
Transmission And Reflection LED And Halogen Lamp
Description

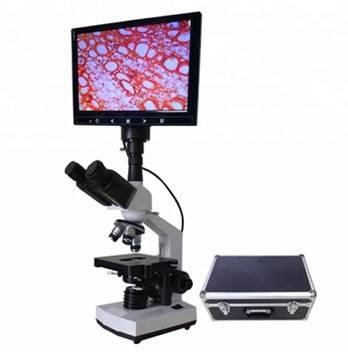

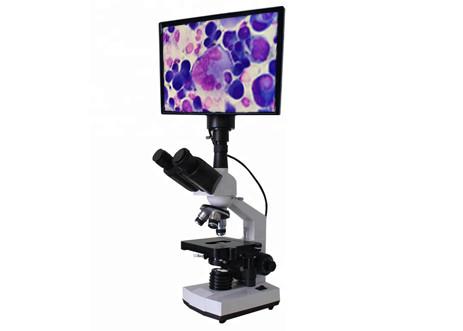

LCD Microscope Biological Lab Microscope

M12117 is mainly designed for student experiment, such as hospital school and research institution etc.

Features:

- Simple structure and easy to observe.

- LCD panel on the front of the microscope can display the using status of the microscope.

- Competent for hospital schools and research institutions.

Model Specification/Value M12117
Magnification: 40X-400X ●
View tube:

Trinocular, 30° inclined, 360°rotated.

With LCD monitor and built-in camera.

 ●
Eyepiece: WF10X / 18mm. ●
Objective: Plan Achromatic objective 4X/0.1, 10X/0.25, 40X/0.65 Spr. ●
Optional: 100X/1.25 Spr. Oil ○
Nosepiece: 3-position nosepiece, revolver with rotation on ball bearings. ●
Stage: Size: 110x120mm, move range: 30-60mm ●
Focusing:

Coaxial coarse and fine focusing.

Movement by roller guider (Roller and pinion).

Rubber grip around fine and coarse adjust knob.

 ●
Illumination: LED cold light, 1W, brightness adjustable. ●
LCD display: 9 inch HD LCD monitor. ●
Condenser: Removable Abbe condenser, NA1.25 with aperture iris diaphragm. ●
Package: Portable box. ●

Note: ● means standard, ○ means optional

Product with box

LCD Microscopy Biology Discussion WF10X 400X Bright Field Microscope Biology Discussion
