WF10X 40X 100X 1000X Computer Lab Biological Microscope Digital Camera
WF10X 40X 100X 1000X Computer Lab Biological Microscope Digital Camera
WF10X 40X 100X 1000X Computer Lab Biological Microscope Digital Camera
WF10X 40X 100X 1000X Computer Lab Biological Microscope Digital Camera
Specifications
Brand Name :
Phidix
Model Number :
M12110
Certification :
IATF16949，CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000 PCS/Month
Delivery Time :
15-20 Work Days
Packaging Details :
1 PC/Carton
Color :
White
Customization :
OEM, ODM
Packing :
1 PC/Carton
Warranty :
1 year
Drawtube :
Trinocular
Theory :
Biological Microscope
Lead-time :
15-20 Work Days
Eyepiece :
WF10X
Magnification :
40X-1000X
Nosepiece :
Backward Quadruple Nosepiece
Objective :
Plan Achromatic 4X/10X/40X/100X
Condenser :
Abbe N.A. 1.25(Iris Diaphragm)
Focusing :
Fine and Coarse Adjustment Focusing
Illumination :
3W LED
Camera :
Optional
Description

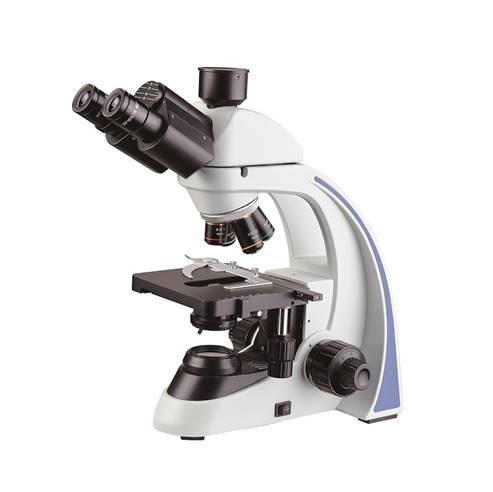

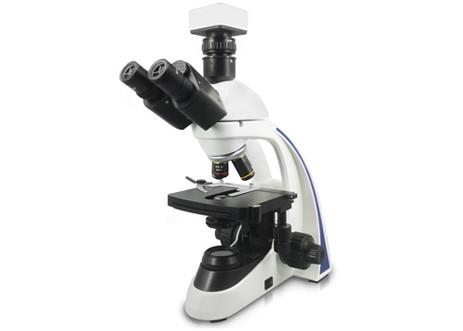

High Quality 1000X Trinocular Biological Microscope With Digital Camera Connect To Computer

M12110 High Quality 1000X Trinocular Biological Microscope With Digital Camera Connect To Computer It’s with a stable and reliable system structure, easier and more comfortable operation are suitable for various working environments.

Features:

  • Teaching trinocular microscope with an inbuilt camera.
  • Ideal for teaching purposes, Designed for observing and projecting specimens in 3D.
  • Compatible to data projectors, Suitable for histology, microbiology, botany, virology and routine research applications.
  • Quality optics for showing the detail and color of any specimen.
  • Connectible to computer, television and projector (USB and HDMI)

Item Description / Value M12110
Theory: Biological microscope ●
Body: Ergonomics designed rigid frame. With handle for carry. All metal material with cover. Anti-fungi, anti-bacteria. ●
Optical system: Plan achromatic optical system ●
Observation method: Bright field ●
View tube:

Binocular/Trinocular head, 30 ° incling, 360°rotating.

Diopter adjustment on the left eyepiece.

Adjustment of inter-pupillary distance 50-75mm.

 ●
Eyepiece: Wide field WF10X / 18 ●
Optional 16X ○
Objective: Plan Achromatic Plan 4X/0.10, 10X/0.25, 40X/0.65(Spring loaded), 100X/1.25(Spring loaded and oil immersion) ●
Nosepiece: Quadruple reversed angle nosepiece, revolver with rotation on ball bearings ●
Illumination: White LED lamp illuminator. LED power: 3W, Color temperature: 6300K ●
Focusing mechanism:

Coaxial positioning system. Movement by roller guider (Roller and pinion). Rubber grip around fine and coarse adjust knob.

Tension adjustment of coarse regulation knob.

Upper limit stopper for protecting the lens and sample.

 ●
Stage:

Mechanical double layer stage, platinum with overhang, dimensions 155x145 mm.

Moving range: 76mm ×52mm.

Vernier scale on both axes of movement with an accuracy of 0.1mm.

 ●
Condenser: Removable Abbe condenser, NA1.25 with aperture iris diaphragm. ●
Camera:

5MP digital camera for microscope with USB and HDMI ports.

Connectible to computer, television and projector.

Software for win7/win10.

 ○
Accessories: Manual, dust cover, power cord of local standard. ●
Power supply: AC100-240V, 50/60Hz. ●

Note: ● means standard, ○ means optional

Packaging: 48.5*30.5*55.5CM

Weight: 7kg
