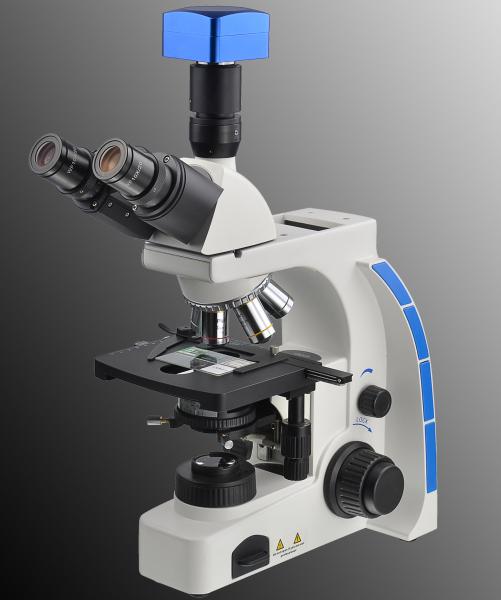

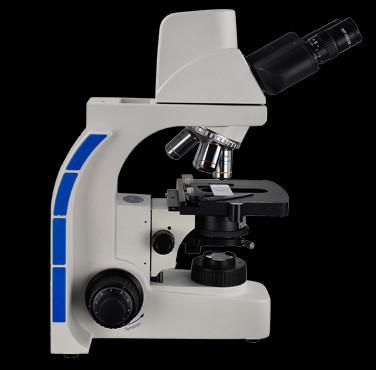

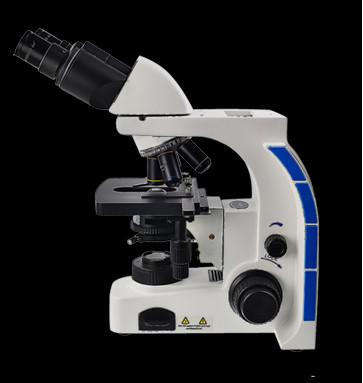

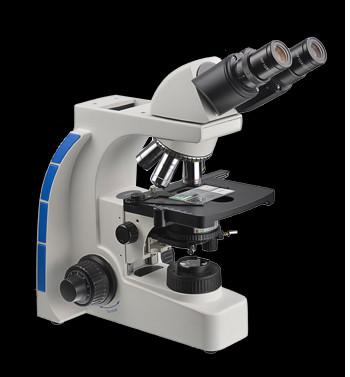

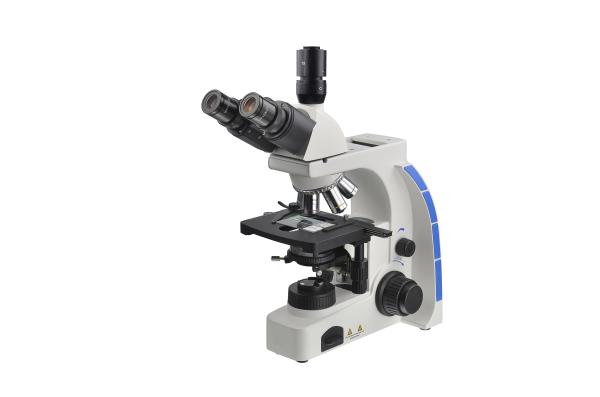

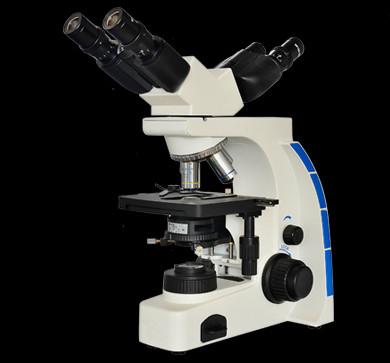

Trinocular Biological Lcd Wireless Microscope Digital WF10X 20mm Phase Contrast
Trinocular Biological Lcd Wireless Microscope Digital WF10X 20mm Phase Contrast
Trinocular Biological Lcd Wireless Microscope Digital WF10X 20mm Phase Contrast
Trinocular Biological Lcd Wireless Microscope Digital WF10X 20mm Phase Contrast
Trinocular Biological Lcd Wireless Microscope Digital WF10X 20mm Phase Contrast
Trinocular Biological Lcd Wireless Microscope Digital WF10X 20mm Phase Contrast
Trinocular Biological Lcd Wireless Microscope Digital WF10X 20mm Phase Contrast
Trinocular Biological Lcd Wireless Microscope Digital WF10X 20mm Phase Contrast
Trinocular Biological Lcd Wireless Microscope Digital WF10X 20mm Phase Contrast
Trinocular Biological Lcd Wireless Microscope Digital WF10X 20mm Phase Contrast
Trinocular Biological Lcd Wireless Microscope Digital WF10X 20mm Phase Contrast
Trinocular Biological Lcd Wireless Microscope Digital WF10X 20mm Phase Contrast
Trinocular Biological Lcd Wireless Microscope Digital WF10X 20mm Phase Contrast
Trinocular Biological Lcd Wireless Microscope Digital WF10X 20mm Phase Contrast
Specifications
Brand Name :
Phidix
Model Number :
M12126
Certification :
IATF16949，CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000 PCS/Month
Delivery Time :
15-20 Work Days
Packaging Details :
1 PC/Carton
Color :
White
Customization :
OEM, ODM
Warranty :
1 year
Drawtube :
Trinocular
Theory :
Biological Microscope
Lead-time :
15-20 Work Days
Magnification :
40X-1000X
Eyepiece :
WF10X/20mm
Nosepiece :
4-Position
Viewing Head :
360 Rotatable
Stage :
Double Layers Mechanical Stage
Focusing :
Coaxial Coarse
Illumination :
3W LED Lamp
Description

Professional Laboratory Biological Microscope Digital Microscope With LCD Screen


M12126 Professional Laboratory Biological Microscope Digital Microscope With LCD Screen. This series biological microscope is designed for the rigors of daily routine work in the demanding applications of universities, clinics, labs and many other life science or medical applications requiring quality optical performance. It provides good illumination for even the most demanding samples. Additional contrast methods like phase contrast, polarization and dark field and discussion/teaching devices ensure that this model will offer long term functionality to all user levels.
a student is observing a cell under the microscope

Features:

- Phase contrast, polarization and dark field can be supportable.

- Double layers mechanical stage, size 156*138mm, moving range 76*54mm.

- Infinity optical system.

- 11.6" LCD screen built-in 16M pixel camera.

ItemDescription / ValueM12126AM12126B
Body:Body (Choose the power cord please)●●
View head:Binocular, Interpupillary distance 52-75mm●
Binocular, Interpillary distance 48- 75mm○
Trinocular, Interpuillary distance 52-75mm(100:0) ○
Trinocular. Interpillary distance 52-75mm(20:80) ●
Trinocular, Interpupillary distance 48-75mm(20:80) ○
Trinocular, Interpupillary distance 52-75mm(50:50) ○
Eyepiece:High type-point plan eyepiece WF10X/20mm●●●●
High eye point plan eyepiece WF10X/22mm○○○○
Plan eyepiece WF16X/13mm○○○○
High eye point plan eyepiece WF10X/20mm (pointer)○○
High eye point plan eyepiece WF10X/22mm (pointer)○○
Reticule Eyepiece Cross WF10X/20mm○○
Objectives:Infinity Economical Plan Achromatic Objective 4X○○
Infinity Economical Plan Achromatic Objective 10X○○
Infinity Economical Plan Achromatic Objective 40X (S)○○
Infinity Economical Plan Achromatic Objective 100X (S) (Oil)○○
Infinity Plan Achromatic Objective 2X○○
Infinity Plan Achromatic Objective 4X●●
Infinity Plan Achromatic Objective 10X●●
Infinity Plan Achromatic Objective 20X○○
Infinity Plan Achromatic Objective 40X(S)●●
Infinity Plan Achromatic Objective 60X(S)○○
Infinity Plan Achromatic Objective 100X (S) (Oil)●●
Stage:Mechanical Stage, Right handed 156X138mm, movement range 76* 54mm●●
Mechanical Stage, Right handed 185X177mm, movement range 75*50mm○○
Nosepiece:Quadruple Nosepiece, inward facing●●
Quintuple Nosepiece, inward facing○○
Condenser:Abbe condenser NA1.25●●
Dark Field Condenser (dry)○○
Dark Field Condenser (oil)○○
Illumination:6V 20W Halogen Lamps●●
6V 30W Halogen Lamps○○
3W LED Electric Device (with Rechargeable Batteries)○○
3W LED Electric Device○○
Bracket:05X C-Mount ○
1X C-Mount ●
0.25X C-Mount ○
C-Mount ○
FilterBlue Filter (φ38) (LED Lamp without Filter)●●
Focusing:Coaxial coarse and find adjustment, fine division 1μm●●
Camera:11.6" LCD screen built-in 16M pixel camera ○

Note: ● means standard, ○ means optional
