Multi Head WF10X Lab Biological Microscope For Medical Students Achromatic Optical
Multi Head WF10X Lab Biological Microscope For Medical Students Achromatic Optical
Specifications
Brand Name :
Phidix
Model Number :
M12118
Certification :
IATF16949，CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000 PCS/Month
Delivery Time :
15-20 Work Days
Packaging Details :
1 PC/Carton
Color :
White
Customization :
OEM, ODM
Packing :
1 PC/Carton
Warranty :
1 year
Drawtube :
Tinocular
Theory :
Biological Microscope
Lead-time :
15-20 Work Days
Head Number :
5 Heads
Eyepiece :
WF10X
Magnification :
40X-1600X
Illumination :
Halogen Lamp Or LED Lamp
Objective :
4X/10X/40X/100X
Camera :
Optional
Description

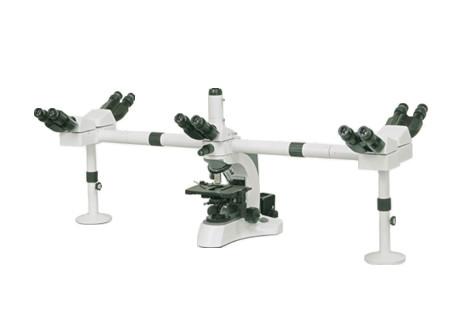

Multi Head Biological Microscope 5 Heads Microscope

M12118 Multi Head Biological Microscope 5 Heads Microscope. M12118 is mainly designed for 5 people to observe at the same time. It’s meaningful in co-working area, for example, teaching demonstration.

Features:

- Equipped with 5 Heads for 5 persons observing at the Same Time.

- Infinite Optical System.

- It is widely used in Clinic, Research and Teaching Demonstration.

Item Description / Value
Optical system:

Infinity Plan Achromatic optical system.

Standard: Bright field

Optional: Dark field, phase contrast, fluorescence, polarizing.
View Tube: 30°inclined binocular head / trinocular head. 360° rotatable.
Eyepiece: WF 10X/22mm.
Objective: Infinity Plan achromatic objectives: 4X/0.1, 10X/0.25, 40X/0.65(Spr), 100X/1.25(Oil, Spr.).
Nosepiece: QUADRUPLE Nosepiece.
Stage:

Built-in double layer mechanical stage. Rectangular size 180 × 160mm.

X & Y travel range: 80x50mm. Moving accuracy: 0.1mm
Condenser: Kohler type N.A. 1.25 condenser with Iris diaphragm.
Focusing mechanism: Coaxial coarse & fine focusing mechanism. Stopper to protect slides and objectives from damage.
Light source: 12V/100W halogen lamp or LED light.
Power supply: Input AC100V-250V, 50Hz/60Hz.
