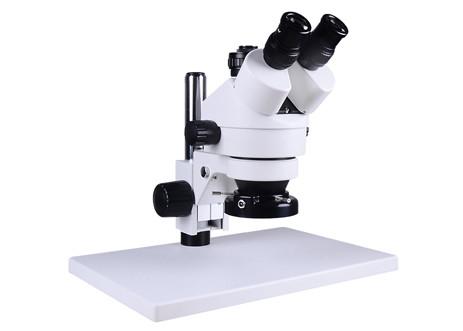

Electronics Zoom Stereo Microscope 270X 4.5X Soldering 45 Degree Inclined Eyepiece
Electronics Zoom Stereo Microscope 270X 4.5X Soldering 45 Degree Inclined Eyepiece
Specifications
Brand Name :
Phidix
Model Number :
M19116
Certification :
IATF16949，CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000 PCS/Month
Delivery Time :
15-20 Work Days
Packaging Details :
1 PC/Carton
Color :
White
Customization :
OEM, ODM
Packing :
1 PC/Carton
Warranty :
1 year
Drawtube :
Trinocular
Theory :
Stereo Microscope
Lead-time :
15-20 Work Days
Eyepiece :
WF10X
Zoom Lens :
0.7X-4.5X
Zoom Ratio :
1:6.5
Magnification :
7X-45X, Up To 3.5X-270X
Working Distance :
100mm, With Auxiliary Objectives 30~165mm
Field Of View :
1~95.2mm
Description

6.7X-45X 45 Degree Inclined Eyepiece Tube Stereo Zoom Microscopes For Electronics Inspection

M19116 6.7X-45X 45 Degree Inclined Eyepiece Tube Stereo Zoom Microscopes For electronics inspection, it’s able to enlarge small objects and form a positive three-dimensional image. Stereo microscopes are widely used in the electronics industry and the inspection, assembly, and repair of small precision parts, as well as biological anatomy and jewelry inspection.

Features:

- 10X wide angle eyepiece, made of all metal materials, using FMC anti-reflection coating.

- High light transmittance, high reflective index lens diameter 25.5mm.

- Diopter is adjustable. The pupil-distance adjustment range is 55-75mm.

Item Description / Value
Head: Hinged trinocular head
Eyepiece: Standard WF10X20, high angle wide angle eyepiece, provide convenience for observers wearing glasses
Optional eyepiece: WF10X20mm,WF15X15mm,WF20X10mm,WF25X9mm,WF30X8mm
Magnification: Standard 7X---45X, optional and auxiliary lenses can be extended to 2.1X---270X, continuous doubling
Objective: 0.7X-4.5X zoom range, objective magnification ratio 1:6.4, ensure image alignment
Auxiliary Lens: 0.3X, 0.5X, 0.7X, 1X, 1.5X ,2X for option
Working Distance: 100mm
Focus arm: 76mm diameter, 32mm pole size
Base: B3 column type big flat base(Standard), other base can be selected, see the base series for details
Illumination: Optional LED Illumination, see LED light source series diagram for details
Plate: Black/White plate
