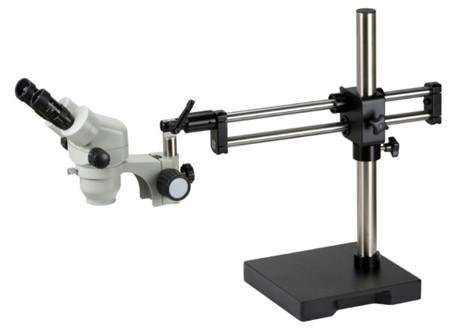

7X 45X Zoom Stereo Microscopes Flexible Arm Binocular Industry
7X 45X Zoom Stereo Microscopes Flexible Arm Binocular Industry
Specifications
Brand Name :
Phidix
Model Number :
M19100
Certification :
IATF16949，CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000 PCS/Month
Delivery Time :
15-20 Work Days
Packaging Details :
Carton
Color :
Gray
Customization :
OEM, ODM
Packing :
1 PC/Carton
Warranty :
1 year
Drawtube :
Binocular
Theory :
Stereo Microscope
Magnification :
7X-45X
Stand :
Flexible arm
Application :
Industry
Light source :
Adjustable LED Lights
Description

7X-45X Zoom Stereo Microscopes

M19100 7X-45X Zoom Stereo Microscopes The product could be widely used in various industrial applications with perfect performance.

Item Description / Value
Eyepiece: Wide field and high eye point eyepiece SWH10X(Φ23mm), with U3 boom stand base size:254×254×40mm, the height of post: 475mm; diameter: Φ37mm; the length of double rails: 460mm,diameter: Φ19.05mm.
Standard Magnification: 7X-45X, Zoom ratio 6.4:1.
Objectives: 0.37X, 0.5X, 0.7X, 1.5X, 2X.
Max. working distance: 118mm.
Magnification: 7X-270X.
Inter-pupillary distance adjustment range: 52mm~76mm.
Diopter adjustment: ±6°(left drawtube).
The range of adjusting the focus: 50mm(the square post is 100mm).
The diameter of the round post: Φ25mm.
The measurement to match between the support and the main body: Φ76mm.
The distance between from the post center to the main body center: 140mm.
The diameter of the centerworking stage: Φ95mm.
Trinocular/Binocular drawtubes horizontal inclined 45°and main body can be rotated: 360°.
eyepieces, auxiliary illuminators and kinds of stands and universal stands to be selected: 15X, 20X, 30X.
