5MP USB 7 Inch Lcd Digital Usb Microscope Video 4.5X Measurement Software
5MP USB 7 Inch Lcd Digital Usb Microscope Video 4.5X Measurement Software
5MP USB 7 Inch Lcd Digital Usb Microscope Video 4.5X Measurement Software
5MP USB 7 Inch Lcd Digital Usb Microscope Video 4.5X Measurement Software
Specifications
Brand Name :
Phidix
Model Number :
M20118
Certification :
IATF16949，CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000 PCS/Month
Delivery Time :
15-20 Work Days
Packaging Details :
1 PC/Carton
Color :
Black
Customization :
OEM, ODM
Packing :
1 PC/Carton
Warranty :
1 year
Drawtube :
Monocular
Theory :
Biological Microscope
Lead-time :
15-20 Work Days
Magnification :
14X-180X
Lens :
0.7X-4.5X
Illumination :
LED Ring Light
Pixel :
5MP
Description

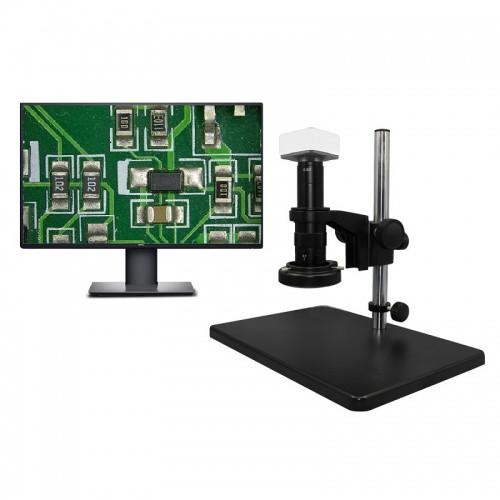

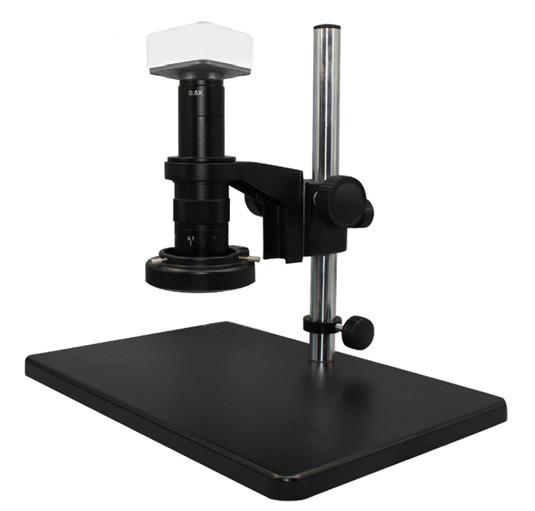

5MP USB LCD Digital Microscope With Measurement Software Can Take Photo Record Video

M20118 is a universal type video microscope with various applications in the industrial fields.

Features:

- It’s convenient to take photo and record with the aid of measurement software.

- User can set the Menu according to requirement.

Item Description / Value M20118
Magnification: 14X-180X ●
Lens: 0.7-4.5X ●
Resolution/Pixels: 5 mega pixels ●
Moving distance: 100mm ●
Camera port: USB2.0 ●
Camera features: Image capture, video recording, measurement ●
Measurement soft:

For operation system under WIN10 (64bit).

Measure:

Circle: radius, circumference, squre; Distance from center of a circle to a line, to a point, to another center of a circle

Arc: radius, arc length, radian; Rectangle: length, width, square and perimeter; Polygon: primeter and square; Elipse: primeter and square; Length, angle; Distance from point to line, distance between 2 lines, etc.

 ●
Stage: 380*260mm ●
Illumination: High intensity LED ring light, brightness adjustable. ●
Camera: 5MP ●
6.3MP ○
Auxiliary lens: 0.5X or 2X ○

Note: ● means standard, ○ means optional
