Specifications
Brand Name :
Phidix
Model Number :
M20103
Certification :
IATF16949,CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000 PCS/Month
Delivery Time :
15-20 Work Days
Packaging Details :
1 PC/Carton
Customization :
OEM, ODM
Lead-time :
15-20 Work Days
Packing :
1 PC/Carton
Warranty :
1 Year
Drawtube :
Monocular
Theory :
Digital Microscope
Working distance :
100MM
Color :
Black
Zoom Lens :
0.7-4.5X
Description

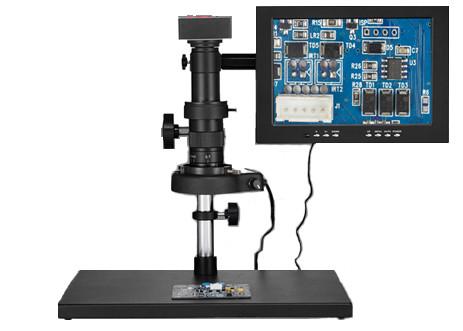

Video Digital 3D 4K Electronic Soldering Microscope With Camera

The video microscope M20103 is suitable for the inspection of electronic industry production lines, the verification of printed circuit boards, the verification of soldering defects (printing misalignment, collapse, etc.) in printed circuit components, the verification of single-board PCs, the verification of vacuum fluorescent display VFD, and In Forestry Academy’s plant epidermis observation, beauty industry skin inspection, etc., it magnifies the actual image and displays it on the microscope screen, and can be taken into a picture or video for further analysis and processing, and the picture can also be saved, enlarged, and printed. Configure measurement software to measure various data.

Item Specification M20103
Optical lens: 0.7-4.5X zoom objective 0.5X eyepiece,1X objective lens(outfit)
Working distance: 100mm
Display: 12 inch color monitor, resolution 640*480,OSD menu, with cross-line function
Digital Camera: 5MP CMOS, 1/3 Sensor chip,800TVL(PAL)OSD menu
Output Interface: HDMI
VGA Interface(Can be customized according to customer needs)
Magnification: 13-120X(Customized magnification is available according to customers' need)
Function: Real time observation, measurement, storage, photo taking, comparison
Base bracket: Various base brackets are available
Accessories: DC 12V 2A power supply, USB cable, CD-ROM, LED ring light

Note: ● means standard, ○ means optional
