HDMI Optical Digital Microscope PCB Video 0.7-4.5X LED Ring Light
HDMI Optical Digital Microscope PCB Video 0.7-4.5X LED Ring Light
Specifications
Brand Name :
Phidix
Model Number :
M20117
Certification :
IATF16949，CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000 PCS/Month
Delivery Time :
15-20 Work Days
Packaging Details :
1 PC/Carton
Color :
Black
Customization :
OEM, ODM
Packing :
1 PC/Carton
Warranty :
1 year
Drawtube :
Monocular
Theory :
Digital Microscope
Lead-time :
15-20 Work Days
Magnification :
14X-180X
Lens :
0.7-4.5X
Illumination :
LED Ring Light
Power Supply :
AC100V~240V, 50/60Hz
Description

Optical HDMI-Compatible Digital Video Microscope Industrial Measurement PCB Inspection

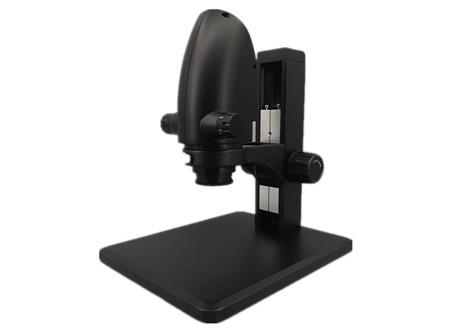

M20117 Optical HDMI-Compatible Digital Video Microscope Industrial Measurement PCB Inspection. M20117 is a video microscope specially designed for PCB inspection.

Features:

- One screen compare: to compare living image with a saved picture on one screen.

- Parfocal: focusing is easy with different zoom times.

- Cross line: up to 0-99 cross lines, with scale or without scale.

- Auto conversion of length unit: the system will automatically change measure unit between mm, mil, μm.

- Menu setting is viable. User can set the Menu according to requirement.

Item Description / Value
Magnification: 14-180X
Function: Take photo, record video, measure.
Sensor: Sony CMOS 1/2”.
Resolution/Pixels: 2 mega pixels, 1920*1080P
Lens zoom: 0.7X-4.5X.
Output: USB for memory and mouse control. HDMI for monitor.
Memory: USB flash disk.
Control: Camera settings by USB mouse for white balance, exposure time, contrast, RGB, etc.
Working distance: 100mm
Illumination: LED ring light. Brightness adjustable.
Measurement: Length, distance from point to line, distance between 2 lines, diameter and radius of circle, center of a circle to a line, center of a circle to a point, length of an arc, circumference of a circle, angle, radian, distance of centers of circles, rectangle square and perimeter, perimeter and square of eclipse etc.
Power supply: AC100V~240V, 50/60Hz.
Monitor(Optional): 19-32 inch.
