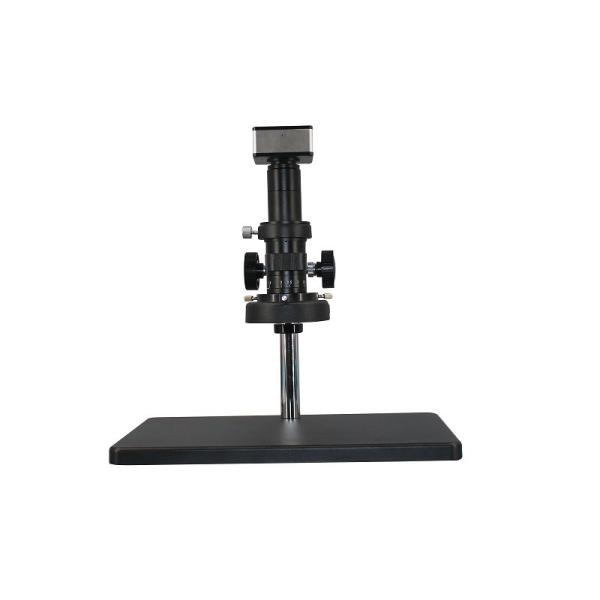

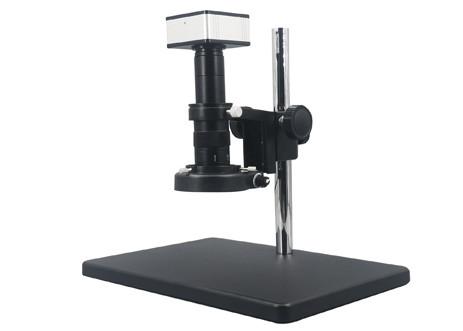

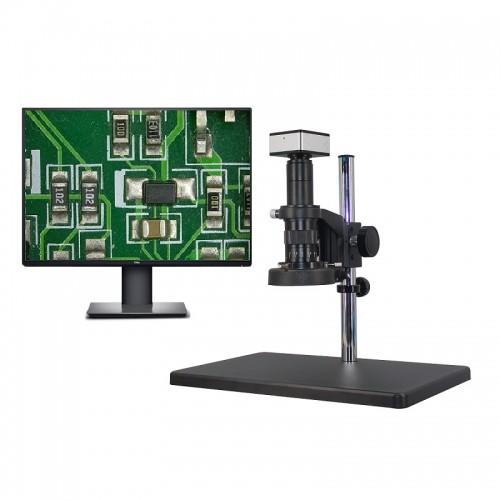

HDMI Output Digital Electronic Binocular Microscope Measurement 2MP 1920x1080P
HDMI Output Digital Electronic Binocular Microscope Measurement 2MP 1920x1080P
HDMI Output Digital Electronic Binocular Microscope Measurement 2MP 1920x1080P
HDMI Output Digital Electronic Binocular Microscope Measurement 2MP 1920x1080P
HDMI Output Digital Electronic Binocular Microscope Measurement 2MP 1920x1080P
HDMI Output Digital Electronic Binocular Microscope Measurement 2MP 1920x1080P
Specifications
Brand Name :
Phidix
Model Number :
M20114
Certification :
IATF16949，CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000 PCS/Month
Delivery Time :
15-20 Work Days
Packaging Details :
1 PC/Carton
Color :
Black
Customization :
OEM, ODM
Packing :
1 PC/Carton
Warranty :
1 year
Drawtube :
Monocular
Theory :
Digital Microscope
Lead-time :
15-20 Work Days
Magnification :
14X-180X
Light Source :
LED Ring Lights
Pixel :
2MP
Resolution :
1920*1080P
Description

HDMI Output Digital Electronic Binocular Microscope Measurement 2MP 1920x1080P

M20114 is mainly designed for image capturing, video recording and measuring etc.

Features:

- This serial measurement microscope is digital measurement microscope with HDMI camera.

- It can be connected to a display screen directly, no need computer. Especially fit for factories.

- With 2 USB ports, USB mouse and USB flash card can be attached to it and do measurement, image capture and video record.

Item Description / Value M20114
Magnification: 14X-180X ●
Lens: 0.7-4.5X, Zoom ratio: 1:6.4 with 1X CCD video adapter lens. ●
0.5X, 2X ○
Field range: 2-35mm ●
Moving distance: 65mm ●
Stage: 380*260mm ●
Illumination: High intensity LED ring light, brightness adjustable. ●
Camera:

2MP

** High Resolution HDMI Color CMOS Camera.

** Resolution: 1920*1080.

** 1/2 inch Full HD color CCD sensor.

** 60fps frame rate.

** Support USB flash disk for Image Capture.

** Cross lines overlay with adjustable position & color.

** Camera settings by Mouse for white balance, exposure, contrast, RGB, etc.

** Output: HDMI port.

 ●
Camera features: Image capture, video recording, measurement ●
Measurement soft:

For operation system under WIN10 (64bit).

Measure:

Length, distance from point to line, distance between 2 lines, diameterand radius of circle, center of a circle to a line, center of a circle to a point, length of a arc, circumference of a cicle, angle, radian, distance of centers of circles, rectangle square and perimeter, primeter and square of elipse, etc.

 ●
Monitor: 12~22 inch HDMI monitor. ○
Memory: USB flash disk 256M~32G ○
Power supply: AC100-240V, 50/60Hz. ○

Note: ● means standard, ○ means optional
