Fig-8 2 Core FTTH Drop Cable Self Supporting Aerial Fiber Drop Cable
Fig-8 2 Core FTTH Drop Cable Self Supporting Aerial Fiber Drop Cable
Fig-8 2 Core FTTH Drop Cable Self Supporting Aerial Fiber Drop Cable
Fig-8 2 Core FTTH Drop Cable Self Supporting Aerial Fiber Drop Cable
Specifications
Brand Name :
PUNAISGD
Model Number :
GJYXCH-1B1.3
Certification :
CE/ROHS/ISO9001
Place of Origin :
Guangdong, China
MOQ :
1km
Price :
negociate
Payment Terms :
T/T,Western Union
Supply Ability :
1000000km/month
Delivery Time :
7days
Packaging Details :
woode drum
Keyword :
FTTH Drop Cable
Type :
GJYXCH
Net Weight :
0.8kg/km, add 0.05kg/km
Steel :
0.45mm
Installation Style :
Aerial
Cladding Diameter :
125±0.7um
Jacket Sheath :
LSZH
Model :
GJXH-1G657A
Operation Temperature :
-20℃-+60℃
Fiber :
G652D/G657A1/g657A2
Steel Wires :
1mm, 0.45mm*2pcs
Outer Sheath :
LSZH,LSOH
Installation Method :
Indoor/Outdoor
Description

Fig-8 2 Core FTTH Drop Cable


  • Product Model

    Self-supporting Fig-8 Aerial Drop Cable


    Product Description

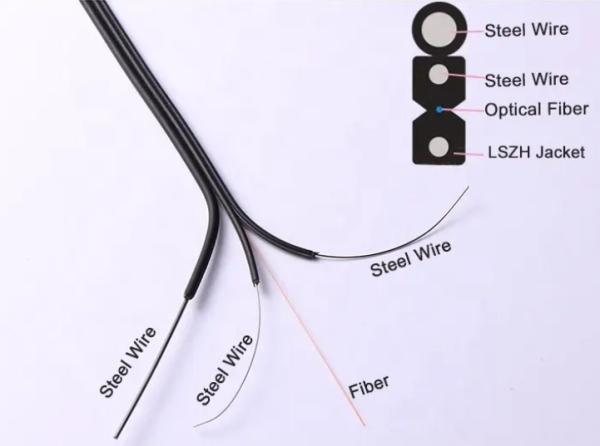

    The compact, self-supporting fig 8 aerial fiber optical drop cable was developed to interconnect optical equipment indoors and outdoors in FTTH network branches, it is an enhanced performance FTTH solution. The cable constructed with 2 core single mode bend sensitive fibers (ITU-T G657A/G652D), protected by two strength member and a messenger wire. This cable is very light and easy to install and strip.



1.1 Speicification

tem Fig-8 aerial drop cable
Cable Type GJYXFCH
Fiber Type G657A,G652D
Number of Fiber 1,2,4
Cable Size(mm) 2.0*5.0
Cable Weight(Ref) 21kg/km
Attenuation(Db/km) ≤0.3 at 1310nm,≤0.4 at 1550nm
Short Tensile Strength 80N
Long Tensile Strength 40N
Sheath Color Black or White
Sheath Material LSZH,PVC
Crush Resistance(N/100mm) 500
Min.Bending Radius(G657A) 30nm(dynamic) 15mm(static)
Min.Bending Radius(G652D) 60nm(dynamic) 15mm(static)
Transport/Storage/Operating temperature From -20℃ to + 60℃
Installation temperature From -5℃ to + 50℃

2.2 Fiber Specifications
Fiber style Unit SM
G652D		 SM
G657A1		 SM
G657A2
condition nm 1310/1550 1310/1550 1310/1550
attenuation dB/km ≤0.36/0.23 ≤0.35/0.21 ≤0.35/0.21
Dispersion 1310nm Ps/(nm*km) ≤18 ≤18 ≤18
1550nm Ps/(nm*km) ≤22 ≤22 ≤22
Zero dispersion wavelength nm 1312±10 1312±10 1300-1324
Zero dispersion slope ps/(nm²×Km) ≤0.091 ≤0.090 ≤0.092
PMD Maximum Individual Fiber [ps/√km] ≤0.2 ≤0.2 ≤0.2
PMD Design Link Value ps/(nm²×Km) ≤0.08 ≤0.08 ≤0.08
Fiber cutoff wavelength λc nm >=1180,≤1330 >=1180,≤1330 >=1180,≤1330
Cable cutoff wavelength λcc nm ≤1260 ..... .....
MFD 1310nm um 9.2±0.4 9.0±0.4 9.8±0.4
1550nm um 10.4±0.8 10.1±0.5 9.8±0.5
Step(mean of bidirectional measurement) dB ≤0.05 ≤0.05 ≤0.05
Irregularities over fiber length and point discontinuity dB ≤0.05 ≤0.05 ≤0.05
Difference backscatter coefficient dB/km ≤0.03 ≤0.03 ≤0.03
Attenuation uniformity dB/km ≤0.01 ≤0.01 ≤0.01
Cladding diameter um 125.0±0.1 124.8±0.1 124.8±0.1
Cladding non-circularity % ≤1.0 ≤0.7 ≤0.7
Coating diameter um 242±7 242±7 242±7
Coating/chaffinch concentrically error um ≤12.0 ≤12.0 ≤12.0
Coating non circularity % ≤6.0 ≤6.0 ≤6.0
Core/cladding concentricity error um ≤0.6 ≤0.5 ≤0.5
Curl(radius) um ≥4 ≥4 ≥4

2.3 Standard Color Identification of Fiber
No. 1 2 3 4
Color Blue Orange Green Brown
