1-2 Core FTTH Flat Drop Cable Fiber Optic Aerial Installation With 1km / 2km

Specifications

Brand Name :

PUNAISGD

Model Number :

GJYXCH-2A

Certification :

CE/ROHS/ISO9001

Place of Origin :

Guangdong, China

MOQ :

1km

Price :

negociate

Payment Terms :

T/T,Western Union

Supply Ability :

1000000km/month

Delivery Time :

7days

Packaging Details :

woode drum

Type :

GJYXCH-2A

Model :

GJXH-1G657A

Keyword :

FTTH Flat Drop Cable

Jacket Sheath :

LSZH

Net Weight :

0.8kg/km, add 0.05kg/km

Steel :

0.45mm

Installation Style :

Aerial

Fiber :

G652D/G657A1/g657A2

Steel Wires :

1mm, 0.45mm*2pcs

Installation Method :

Indoor/Outdoor

Description

1-2 Core Flat Drop FTTH Optic Fiber Cable with 1km or 2km

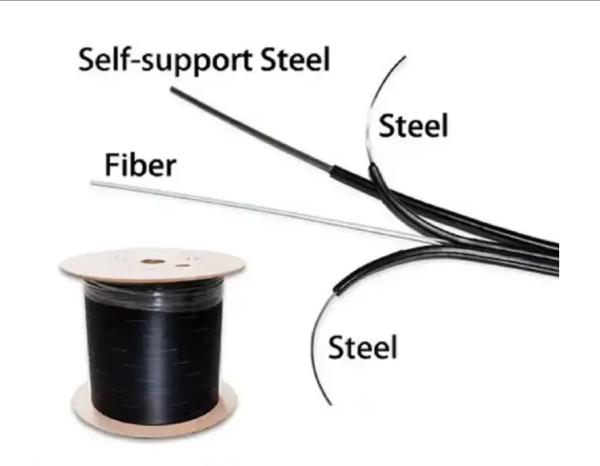

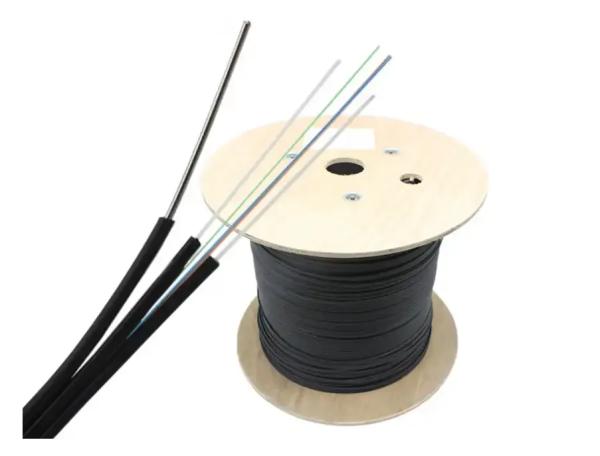

The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP/KFRP/STEEL) are placed at the two sides. A steel wire as the additional strength member is also applied. Then the cable is completed with a black or colored LSZH sheath.

· Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;
· Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber;
· Single steel wire or messenger as the additional strength member ensures good performance of tensile strength;
· Simple structure, light weight and high practicability;
· Novel flute design, easily strip and splice, simplify the installation and maintenance;
· Low smoke, zero halogen and flame retardant sheath.

·Data Communication.
·Making connector.
·Located in where waterproofisn't strictly required.
·Patch cord, Pigtail & Indoor distribution.

1.1 Speicification

tem	Fig-8 aerial drop cable
Cable Type	GJYXFCH
Fiber Type	G657A,G652D
Number of Fiber	1,2,4
Cable Size(mm)	2.0*5.0
Cable Weight(Ref)	21kg/km
Attenuation(Db/km)	≤0.3 at 1310nm,≤0.4 at 1550nm
Short Tensile Strength	80N
Long Tensile Strength	40N
Sheath Color	Black or White
Sheath Material	LSZH,PVC
Crush Resistance(N/100mm)	500
Min.Bending Radius(G657A)	30nm(dynamic) 15mm(static)
Min.Bending Radius(G652D)	60nm(dynamic) 15mm(static)
Transport/Storage/Operating temperature	From -20℃ to + 60℃
Installation temperature	From -5℃ to + 50℃

2.2 Fiber Specifications

Fiber style		Unit	SM G652D	SM G657A1	SM G657A2
condition		nm	1310/1550	1310/1550	1310/1550
attenuation		dB/km	≤0.36/0.23	≤0.35/0.21	≤0.35/0.21
Dispersion	1310nm	Ps/(nm*km)	≤18	≤18	≤18
Dispersion	1550nm	Ps/(nm*km)	≤22	≤22	≤22
Zero dispersion wavelength		nm	1312±10	1312±10	1300-1324
Zero dispersion slope		ps/(nm²×Km)	≤0.091	≤0.090	≤0.092
PMD Maximum Individual Fiber		[ps/√km]	≤0.2	≤0.2	≤0.2
PMD Design Link Value		ps/(nm²×Km)	≤0.08	≤0.08	≤0.08
Fiber cutoff wavelength λc		nm	>=1180,≤1330	>=1180,≤1330	>=1180,≤1330
Cable cutoff wavelength λcc		nm	≤1260	.....	.....
MFD	1310nm	um	9.2±0.4	9.0±0.4	9.8±0.4
MFD	1550nm	um	10.4±0.8	10.1±0.5	9.8±0.5
Step(mean of bidirectional measurement)		dB	≤0.05	≤0.05	≤0.05
Irregularities over fiber length and point discontinuity		dB	≤0.05	≤0.05	≤0.05
Difference backscatter coefficient		dB/km	≤0.03	≤0.03	≤0.03
Attenuation uniformity		dB/km	≤0.01	≤0.01	≤0.01
Cladding diameter		um	125.0±0.1	124.8±0.1	124.8±0.1
Cladding non-circularity		%	≤1.0	≤0.7	≤0.7
Coating diameter		um	242±7	242±7	242±7
Coating/chaffinch concentrically error		um	≤12.0	≤12.0	≤12.0
Coating non circularity		%	≤6.0	≤6.0	≤6.0
Core/cladding concentricity error		um	≤0.6	≤0.5	≤0.5
Curl(radius)		um	≥4	≥4	≥4

2.3 Standard Color Identification of Fiber

No.	1	2	3	4
Color	Blue	Orange	Green	Brown
