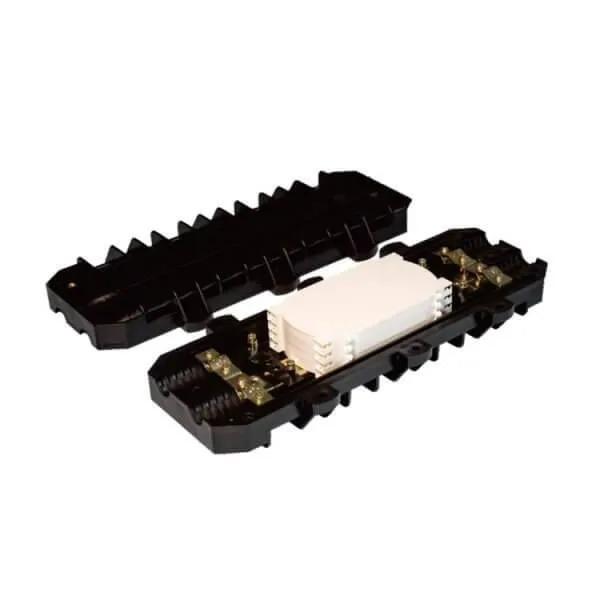

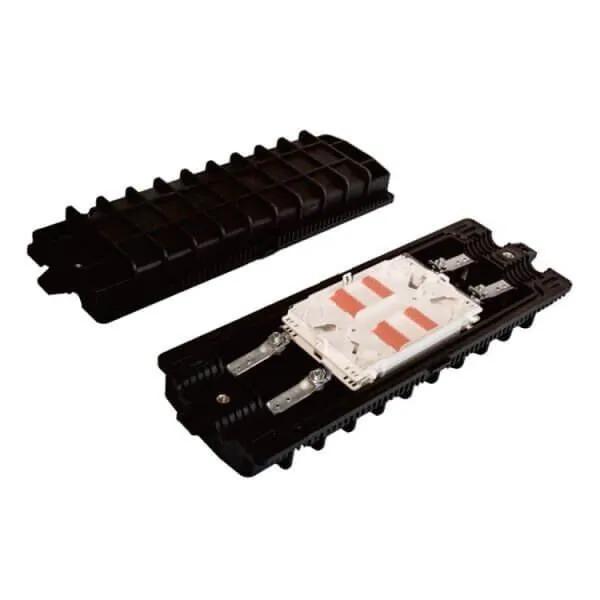

Horizontal Splice Closure 24 core 48 core 96 core Fiber Optic Splice Case
Horizontal Splice Closure 24 core 48 core 96 core Fiber Optic Splice Case
Horizontal Splice Closure 24 core 48 core 96 core Fiber Optic Splice Case
Horizontal Splice Closure 24 core 48 core 96 core Fiber Optic Splice Case
Specifications
Brand Name :
PUNAISGD
Model Number :
Joint splice case
Certification :
CE/ROHS/ISO9001
Place of Origin :
Guangdong, China
MOQ :
1km
Price :
negociate
Payment Terms :
T/T,Western Union
Supply Ability :
1000000
Delivery Time :
7days
Packaging Details :
wooden drum
Type :
Horizontal Splice Closure
fibers :
48cores/96cores/24cores
Splice Mode :
single fiber
Return Loss :
55dB
Attenuation Accuracy :
±0.5dB
Mounting Method :
Wall Mount
Packing :
100 Pcs/Box
Using Temperature :
-40～+60℃
Working Temperature :
-10°C ~ 50°C
Length :
148mm
Ip Rating :
IP65/IP66
Description

Splice Closure Horizontal Fiber Cable Joint Splice Case


Horizontal splice closure are suitable for optical cables of 10mm ~ 23mm diameter. The case are made of high quality alloy plastic and mechanically sealed with filling material. The external components and fastening parts are all made of stainless steel. It can be re-opened without changing the sealing material.

The splice closure is used for the protective connection and optical fiber distribution between 2 or more fiber cables. It’s one of the commonly used equipment for user access point. It mainly completes the connection of the distribution optical cable and the household FTTH drop cable outdoors. In addition, the splice case can be equipped with splice tray or splitter according to the field application.


Horizontal Splice Closure 24 core 48 core 96 core Fiber Optic Splice Case

Application

Aerial, duct and direct buried

Features
      • Horizontal for aerial, duct or direct buried fiber cable branching and splicing
      • Case of high quality alloy plastic materials, can used in harsh environment
      • Multiple reuse and function of capacity expansion
      • Stackable splice tray for easy operation and maintenance
      • Anti impact and anti corrosion enclosure
      • Stainless steel installation instruments
      • Mechanical or heat shrinkable seal available
