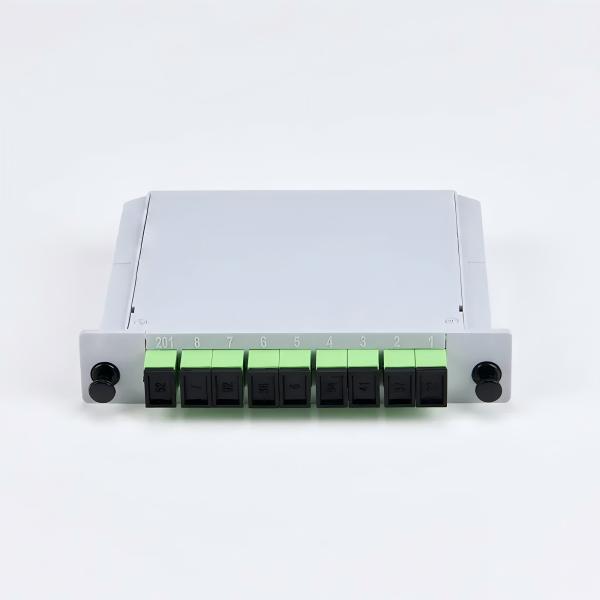

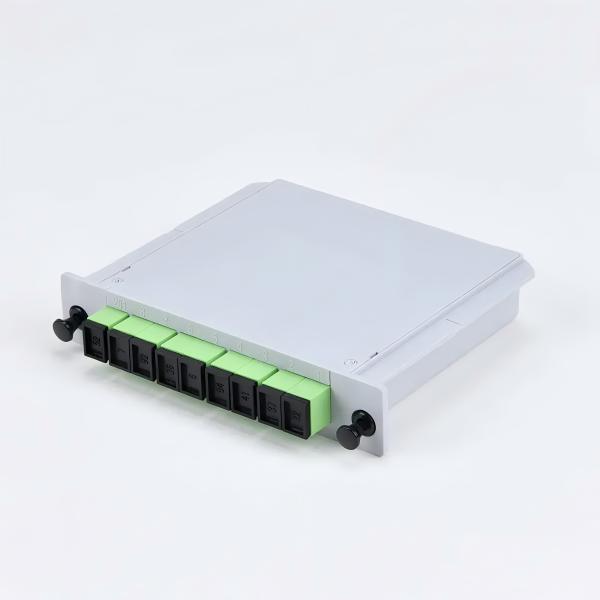

Optic Fiber PLC Splitter Insert Cassette Type Splitter
Optic Fiber PLC Splitter Insert Cassette Type Splitter
Optic Fiber PLC Splitter Insert Cassette Type Splitter
Optic Fiber PLC Splitter Insert Cassette Type Splitter
Optic Fiber PLC Splitter Insert Cassette Type Splitter
Optic Fiber PLC Splitter Insert Cassette Type Splitter
Optic Fiber PLC Splitter Insert Cassette Type Splitter
Optic Fiber PLC Splitter Insert Cassette Type Splitter
Specifications
Brand Name :
PUNAISGD
Model Number :
PLC splitter
Certification :
CE/ROHS/ISO9001
Place of Origin :
Guangdong, China
MOQ :
1km
Price :
negociate
Payment Terms :
T/T,Western Union
Supply Ability :
1000000
Delivery Time :
7days
Packaging Details :
wooden drum
Type :
PLC splitter
adapter :
1×16 SC APC
type :
box PLC
Fiber :
SM G657A1
Wavelength :
1260-1650nm
Application :
FTTH FTTB FTTX Network
Description
Optic Fiber PLC Splitter Insert Cassette Type Splitter
Fiber optic PLC splitter, also known as a beam splitter, is an integrated waveguide optical power distribution device based on a quartz substrate. It is similar to a coaxial cable transmission system. The optical network system also requires an optical signal to be coupled to the branch distribution. The fiber optic splitter is one of the most important passive devices in the optical fiber link. It is an optical fiber tandem device with many input terminals and many output terminals. It is especially applicable to a passive optical network (EPON, GPON, BPON, FTTX, FTTH, etc.) to connect the ODF and the terminal equipment and to achieve the branching of the optical signal.

Key features include:

  • Compatible with 1310nm, 1490nm, and 1550nm wavelengths
  • Ideal for EPON Ethernet passive optical networks (FTTP systems)
  • Passive optical device requiring no power
  • Available in various port configurations (1×2 to 1×64)
  • High-quality Corning SMF-28e fiber or customized options
  • Wide operating temperature range (-40°C to +85°C)

Specifications

1×N (N>2) PLC (With connector) Optical parameters
Parameters 1×2 1×4 1×8 1×16 1×32 1×64
Operation Wavelength (nm) 1260-1650
Insertion Loss (dB) Max 4.2 7.4 10.7 13.8 17.4 21.2
Return Loss (dB) Min 55 55 55 55 55 55
50 50 50 50 50 50
PDL (dB) Max 0.2 0.3 0.3 0.3 0.3 0.5
Directivity (dB) Min 55 55 55 55 55 55
WDL (dB) 0.4 0.4 0.4 0.5 0.5 0.5
Pigtail Length (m) 1.2 (±0.1) or customer specified
Fiber Type SMF-28e with 0.9mm tight buffered fiber
Operation Temperature (℃) -40~85
Storage Temperature (℃) -40~85
Module Dimension (L×W×H) (mm) 130×100x25 130×100x25 130×100x25 130×100x50 130×100×102 130×100×206

2×N (N>2) PLC (With connector) Optical parameters
Parameters 2×4 2×8 2×16 2×32
Operation Wavelength (nm) 1260-1650
Insertion Loss (dB) Max 7.7 11.4 14.8 17.7
Return Loss (dB) Min 55 55 55 55
50 50 50 50
PDL (dB) Max 0.2 0.3 0.3 0.3
Directivity (dB) Min 55 55 55 55
WDL (dB) 0.4 0.4 0.5 0.5
Pigtail Length (m) 1.2 (±0.1) or customer specified
Fiber Type SMF-28e with 0.9mm tight buffered fiber
Operation Temperature (℃) -40~85
Storage Temperature (℃) -40~85
Module Dimension (L×W×H) (mm) 130×100x25 130×100x25 130×100x50 130×100x102
