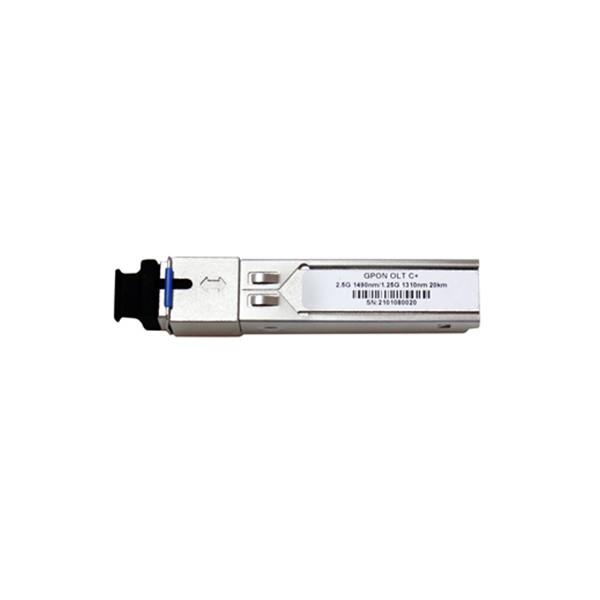

GPON OLT C++ PON Module, TX 1490nm 2.488Gbps RX 1310nm 1.244Gbps MAX 20KM distance huawei zte fiberhome compatible
GPON OLT C++ PON Module, TX 1490nm 2.488Gbps RX 1310nm 1.244Gbps MAX 20KM distance huawei zte fiberhome compatible
Specifications
Brand Name :
Opti-S
Model Number :
GPON OLT C++
Certification :
CCC;ISO90001
Place of Origin :
China
MOQ :
1PCS
Price :
negotiable
Payment Terms :
T/T
Launched Power :
7-8dBm
Distance :
Pon Module For SFP is 20km
Description
Product Description

GPON OLT C++ , 20km , TX 1490nm 2.488Gbps , RX 1310nm 1.244Gbps, SFP , BIDI SC/UPC

Product Features

  • Support ITU-T G.984.2 GPON OLT C++ application
  • Single fiber bi-directional data links with symmetric 2.488Gbps Tx and 1.244Gbps Rx
  • 1490nm continuous-mode transmitter with DFB LD
  • 1310nm burst-mode receiver with APD-TIA
  • 2-wire interface for integrated digital diagnostic Monitoring
  • Receiver RESET, Signal Detect, RSSI function indication (RESET, RX_SD, RSSI)
  • SFP package with SC/UPC receptacle optical interface
  • Single +3.3V power supply
  • Operation case temperature 0~70°C
  • RoHS6 compliance

Application
GPON OLT Class C+
FTTx


Operating Condition

Parameter Unit Min. Typical Max.
Storage Temperature °C -40 85
Operating Case Temp for C-temp °C 0 70
Operating Relative Humidity % 5 95
Power Supply Voltage V 3.15 3.3 3.45
Supply Current mA 600
Bit Rate for Tx Gbps 2.488
Bit Rate for Rx Gbps 1.244



Characteristics
All performance is specified at whole working temperature and conditions

Parameter Unit Min. Typical Max.
Transmitter
TX Central Wavelength nm 1480 1490 1500
Spectral Width (-20dB) nm 1
Side Mode Suppression Ratio (SMSR) dB 30
Mean Launched Power dBm 7 9
Mean Launched Power (TX Off) dBm -45
Extinction Ratio dB 8.2
Optical Return Loss Tolerance dB -12
Transmitter and dispersion Penalty dB 1
Transmitter Mask(PRBS223-1@2.488G) Compliant With ITU-T G.984.2
Receiver
Receive Wavelength nm 1290 1310 1330
Sensitivity
(PRBS223-1@1.244G,ER=10,BER<10-10)		 dBm -30
Overload
(PRBS223-1@1.244G,ER=10,BER<10-10)		 dBm -12
Receiver Burst Mode Dynamic Range dB 15
Damage Threshold for Receiver dBm 5
SD Assert Level dBm -33
SD De-assert Level dBm -45
SD Hysteresis dB 0.5 6
WDM Filter isolation to 1550nm dB 38
WDM Filter isolation to 1650nm dB 35
Electrical Interface Characteristics
Data Input Swing Differential/TX mV 200 - 2000
Data Output Swing Differential/RX mV 400 1600
Date Differential Impedance Ω 90 100 110
LVTTL Output High V 2.4 Vcc
LVTTL Output Low V 0 0.4
LVTTL Input High V 2.0 Vcc+0.3
LVTTL Input Low V 0 0.8
Timing Characteristics
Guard Time (Tg) ns 25.6
Reset Pulse Width (Tr) ns 12.8
Reset Delay (Trd) ns 12.8
Receiver Preamble Time (Tp) ns 140
SD Assert Time (TSDA) ns 100
SD De-assert Time (TSDD) ns 12.8
RSSI Trigger Delay (Ttd) ns 25
RSSI Trigger Pulse Width (Tw) ns 500
Internal I2C Delay (Twait) us 500
