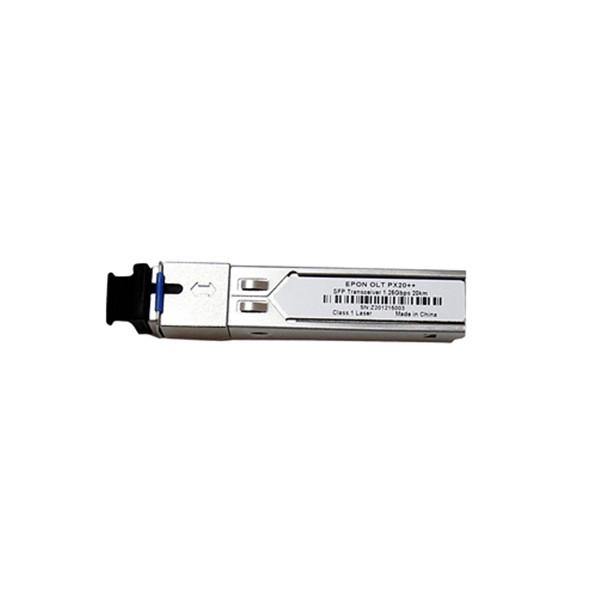

EPON OLT PX20+++ PON Module TX 1490nm1.244Gbps RX 1310nm 1.244Gbps huawei zte fiberhome compatible
EPON OLT PX20+++ PON Module TX 1490nm1.244Gbps RX 1310nm 1.244Gbps huawei zte fiberhome compatible
Specifications
Brand Name :
Opti-S
Model Number :
EPON OLT PX20+++
Certification :
CCC;ISO90001
Place of Origin :
China
MOQ :
1PCS
Price :
negotiable
Payment Terms :
T/T
Launched Power :
7-8dBm
Distance :
Pon Module For SFP is 20km
Standard :
Compatible IEEE 802.3ah
Description
Product Description

Product Features

  • Compatible IEEE 802.3ah 1000BASE-PX20+++ GEPON application
  • Applied to EPON OLT for a Single Fiber Bi-directional EPON System
  • SFP, Single SC connector, Digital Diagnostic Interface Compliant with SFF-8472
  • Burst Digital Receiving Signal Strength Indication (RSSI)
  • Single 3.3V power supply
  • Operation case temperature -10~70°C for commercial
  • RoHS-6 compliance

Applications:


Data services
Voice services
Video services
Monitoring service
FTTH

Absolute Maximum Ratings

ParameterUnitMin.TypicalMax.
Power SupplyV0 4.2
Storage Ambient Temperature°C-40 85
Operating Case Temperature°C-40 85
Operating Relative Humidity%5 95
Receiver Damaged ThresholddBm0

Operating Condition

ParameterUnitMin.TypicalMax.
Power SupplyV3.13.33.5
Operating Case Temp for C-temp°C-10 70
Operating Relative Humidity%5 95
Data Rate(TX/RX)Gbit/s 1.25


Optical Characteristics

ParameterUnitMin.Typ.Max.
TX Central Wavelengthnm1480 1500
Spectral Width (-20dB)nm 1
SMSRdB30
Mean Launched PowerdBm7 9
Mean Launched Power (TX Off)dBm -39
Extinction Ratio(Note 1)dB9
TX Total JitterUI 0.43
Rise/Fall Time (20%-80%)ps 260
RIN15OMAdB/Hz -115
Optical Return Loss TolerancedB -12
Transmitter and dispersion Penalty(20km G.652)dB 2.3
TX Optical Eye MaskCompliant With IEEE Std 802.3ah™-2004
Receive Wavelengthnm1260 1360
Sensitivity (Note 2)dBm -33
OverloaddBm-6
Dynamic RangdB25
Receiver Threshold Settling Timens 250
RX Dynamic Range(Note 3)dBm-30 -6
LOS-DeassertdBm -34
LOS-AssertdBm-45
SD HysteresisdB0.5 6
Receiver ReflectancedB -12
