60w Gigabit BT PoE Splitter12V 24V Adjustable Output IEEE802.3bt Standard
60w Gigabit BT PoE Splitter12V 24V Adjustable Output IEEE802.3bt Standard
60w Gigabit BT PoE Splitter12V 24V Adjustable Output IEEE802.3bt Standard
60w Gigabit BT PoE Splitter12V 24V Adjustable Output IEEE802.3bt Standard
60w Gigabit BT PoE Splitter12V 24V Adjustable Output IEEE802.3bt Standard
60w Gigabit BT PoE Splitter12V 24V Adjustable Output IEEE802.3bt Standard
60w Gigabit BT PoE Splitter12V 24V Adjustable Output IEEE802.3bt Standard
60w Gigabit BT PoE Splitter12V 24V Adjustable Output IEEE802.3bt Standard
60w Gigabit BT PoE Splitter12V 24V Adjustable Output IEEE802.3bt Standard
60w Gigabit BT PoE Splitter12V 24V Adjustable Output IEEE802.3bt Standard
60w Gigabit BT PoE Splitter12V 24V Adjustable Output IEEE802.3bt Standard
60w Gigabit BT PoE Splitter12V 24V Adjustable Output IEEE802.3bt Standard
Specifications
Ethernet Port :
10/100/1000Base-T auto-sensing
Operation Temperature :
-20°C~+55°C
Place of Origin :
China
Output Port :
1*10/100/1000M RJ45
Output Ripple :
100mV/Vp-p(max)
Certification :
CE, FCC, RoHS
Rated Input Voltage :
DC48-57V
Payment Terms :
T/T,Western Union
PoE Input :
90W bt PoE
Model Number :
ONV-PD3401G-12/24
MOQ :
1
Packaging Details :
Packaging dimensions: 170*150*50m, weight: 0.35kg, Carton dimensions: 480*430*352mm, 48 pcs/carton, weight: 18kg
Dimensions :
118*95*28mm
Delivery Time :
5-8 work days
DC Output :
12V/24V adjustable
Supply Ability :
500000pcs/month
Brand Name :
ONV
Input Port :
1*100/100/1000M bt PoE
Max Load Power :
60W
Description
Gigabit BT PoE Splitter
Overview

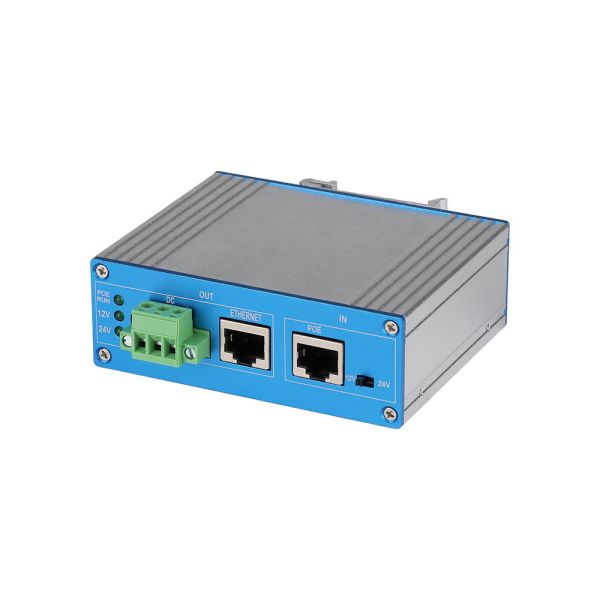

The ONV-PD3401G-12/24 is a Gigabit BT PoE splitter featuring advanced adaptive gigabit switching technology. It includes one 100/1000M BT PoE input port supporting IEEE802.3bt standard (compatible with af/at standards), one 10/100/1000M adaptive RJ45 port, and one adjustable DC output terminal.

Key advantages: Powerful power supply capability and flexible voltage configuration. Freely switch between 12V/24V DC output via dip switch, with maximum load power up to 60W, capable of driving various high-power terminal devices.

Ideal for high-definition PTZ network cameras, intelligent security equipment, high-power commercial wireless APs, IoT gateways, professional network audio equipment, multimedia systems, intelligent lighting systems, and PoE power supply terminals.

Plug-and-play operation with no configuration required. Separates network signals from power output while maintaining data transmission quality and providing stable power for traditional non-PoE devices.

Technical Specifications
Model ONV-PD3401G-12/24
Interface Characteristics

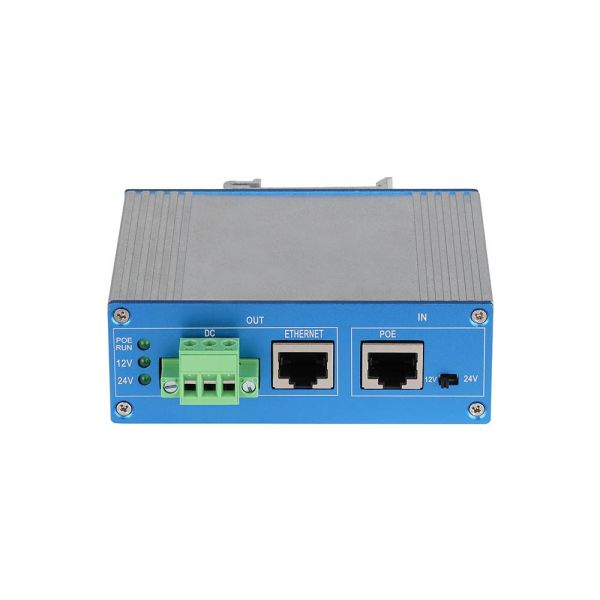

Fixed Port 1×3P plug-in output terminal
1×10/100/1000M uplink RJ45 port (Data)
1×10/100/1000M bt PoE power receiving RJ45 port (Data/Power)
Ethernet Port 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption
Network Protocol IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3x
Twisted Pair Transmission 10BASE-T: Cat3,4,5 UTP (≤100m)
100BASE-TX: Cat5 or later UTP (≤100m)
1000BASE-T: Cat5e or later UTP (≤100m)
LED Indicator Power: DC12V (Yellow), DC24V (Red), PoE: PoE (Green)
PoE Power Supply
PoE Port PoE port supports 90W bt PoE input, backward compatible with IEEE802.3af/at
Power Receiving Standard IEEE802.3af/at/bt, default 1/2(+)3/6(-) & 4/5(+)7/8(-)
Rated Input Voltage DC48-57V
Max Output Power/Voltage 60W/DC12V±0.5V or 60W/DC24V±0.5V
Power Consumption Standby <2W, Full load ≤60W
Efficiency ≥81.5%
Ripple and Noise Output ripple: 100mV/Vp-p(max)
Rise Time: max 50ms
Startup Delay Time: max 2S
Short Circuit Protection Automatic recovery after short circuit removal
Over-current Protection Automatic recovery after over-current fault removal
Physical Parameters
Operation Temp/Humidity -20°C to +55°C, 5% to 90% RH Non-condensing
Storage Temp/Humidity -40°C to +60°C, 5% to 95% RH Non-condensing
Dimension 118×95×28mm
Net/Gross Weight 0.3kg / 0.35kg

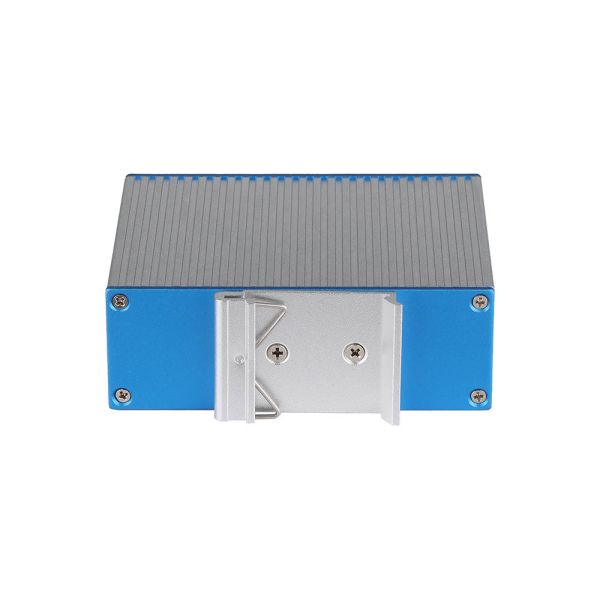

Installation Desktop, Wall mount, DIN Rail
Certification & Warranty
Lightning Protection Port lightning protection: 4KV 8/20us, Protection level: IP40
Certification CE mark, commercial, CE/LVD EN62368-1, FCC Part 15, RoHS
Warranty 3 year, lifelong maintenance
Features
Flexible Expansion & Convenient Connection
  • Supports IEEE802.3af/at/bt standard protocols with automatic power identification and classification
  • DC-DC conversion for safe and reliable operation
  • Optional DC12V/24V output voltage meets most network terminal product requirements
Stable & Reliable Operation
  • CE, FCC, RoHS certified
  • Plug-and-play operation with no configuration
  • LED indicators show device status (PWR, 12V/24V output)
  • Low power consumption, fanless design with aluminum alloy housing for excellent heat dissipation

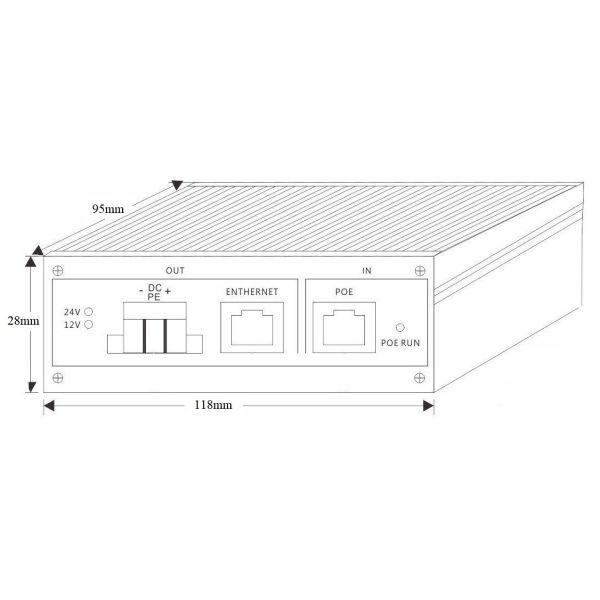

Dimensions
60w Gigabit BT PoE Splitter12V 24V Adjustable Output IEEE802.3bt Standard

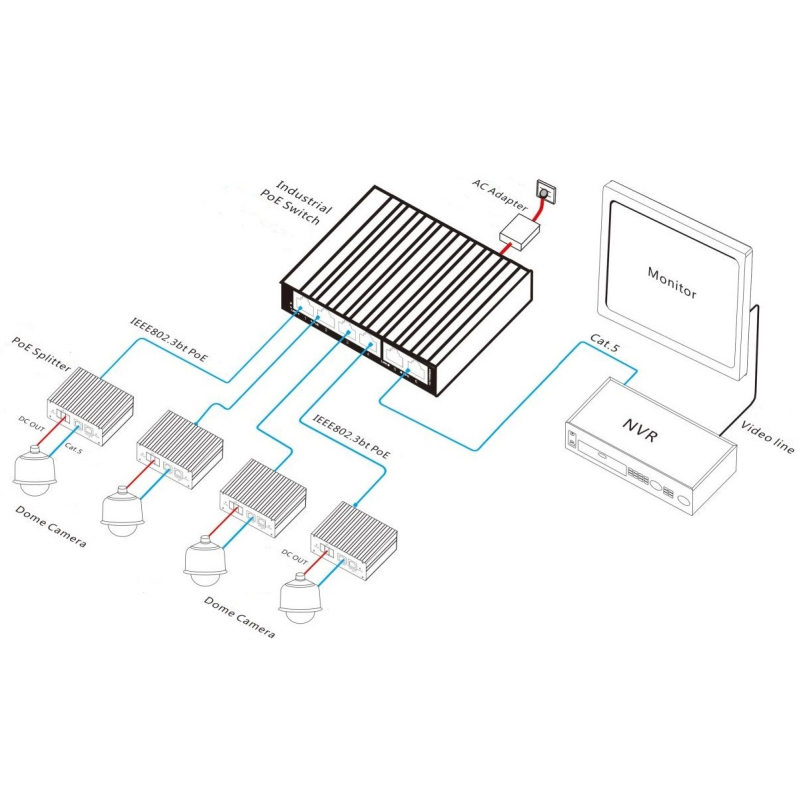

Applications
60w Gigabit BT PoE Splitter12V 24V Adjustable Output IEEE802.3bt Standard
Ordering Information
Model Description
ONV-PD3401G-12/24 Gigabit bt PoE splitter with 1×10/100/1000M power receiving RJ45 port, 1×10/100/1000M uplink RJ45 port, and 1×DC port. Default DC output voltage is DC12V/24V (optional).
Packing List
Item Qty Unit
Gigabit bt PoE Splitter 1 Set
User Guide, Warranty Card and Certificate of Conformity 1 PC
