10/100M Fast Ethernet PD PoE Splitter Cable with IEEE802.3af/at Standard and 12VDC Output
10/100M Fast Ethernet PD PoE Splitter Cable with IEEE802.3af/at Standard and 12VDC Output
10/100M Fast Ethernet PD PoE Splitter Cable with IEEE802.3af/at Standard and 12VDC Output
10/100M Fast Ethernet PD PoE Splitter Cable with IEEE802.3af/at Standard and 12VDC Output
10/100M Fast Ethernet PD PoE Splitter Cable with IEEE802.3af/at Standard and 12VDC Output
10/100M Fast Ethernet PD PoE Splitter Cable with IEEE802.3af/at Standard and 12VDC Output
10/100M Fast Ethernet PD PoE Splitter Cable with IEEE802.3af/at Standard and 12VDC Output
10/100M Fast Ethernet PD PoE Splitter Cable with IEEE802.3af/at Standard and 12VDC Output
Specifications
Model Number :
ONV-PD5202
Place of Origin :
China
Ethernet Port :
10/100Base-TX auto-sensing, full/half duplex MDI/MDI-X self-adaption
Power Consumption :
Standby<1W, full load <13W
Dimension :
82*28*23mm, cable length ≤ 250mm
Delivery Time :
2-8 work days
Conversion Efficiency :
≥82%
Transmission Bandwidth :
10/100M
Output Voltage :
Default 12VDC± 0.5V, optional 5V, 9V, 24VDC output
MOQ :
1
Supply Ability :
500000 pcs/month
Twisted Pair Transmission :
10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters)
Net Weight :
0.06kg
Operation Temperature :
-20°C~+55°C
Input Voltage :
44-57VDC
Brand Name :
ONV
Certification :
CE, FCC, RoHS
Payment Terms :
T/T,Western Union
Description

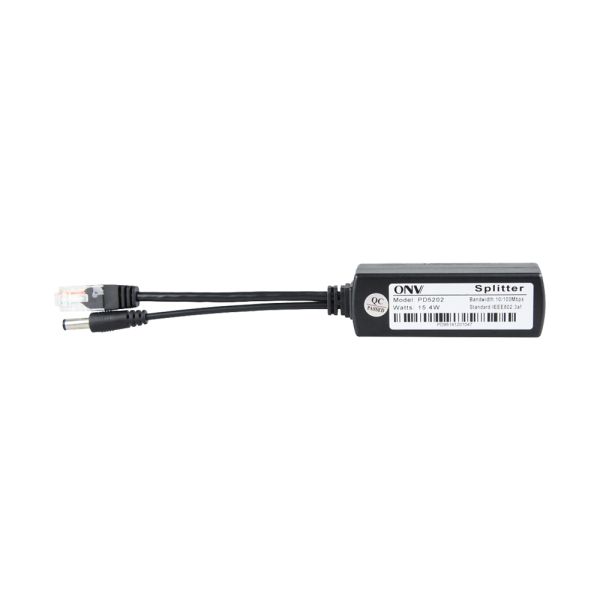

10/100M PD PoE Splitter Cable
Overview

The ONV-PD5202 is a 10/100M PD PoE splitter cable independently developed by ONV. It features 1×10/100Base-TX RJ45 port, 1×8P male output port, and 1×DC5521 power port. This solution enables various non-PoE network terminals to connect externally with PoE switches, flexibly expanding security monitoring and wireless networks without power line constraints.

The ONV-PD5202 housing is constructed from ABS and PC flame-retardant plastic materials, compliant with IEEE802.3af/at standards. It supports both End-span (1,2+ 3,6-) and Mid-span (4,5+ 7,8-) power supply methods. Key features include 13W output power, low ripple, over 82% efficiency, 2KV port isolation protection, and comprehensive protection against short circuits, overcurrent, and overtemperature. Plug-and-play operation requires no configuration.

Technical Specification
Model ONV-PD5201 ONV-PD5202 ONV-PD5202-at
Interface Characteristics
Fixed Port 1×8P male output port (Data) 1×DC5521 power port (Power) 1×10/100Base-TX RJ45 port (Data)
Ethernet Port 10/100Base-TX auto-sensing, full/half duplex MDI/MDI-X self-adaption
Network Characteristics
Transmission Bandwidth 10/100M
Twisted Pair Transmission 10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters)
LED Indicator Working indicator: POE (Yellow)
PoE & Power Supply
PoE Port (PD) PD port IEEE 802.3 af/at @ PoE
Network Protocol IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3x
Power Supply Pin 1/2(+) 3/6 (-) & 4/5 (+)7/8 (-)
Input Voltage 44-57VDC
Output Voltage Default 12VDC± 0.5V, optional 5V, 9V, 24VDC output Default DC5521 plug, optional Micro USB power plug
Power Consumption Standby<1W, full load <15W Standby<1W, full load <13W Standby<1W, full load <24W
Conversion Efficiency (Output: Input) ≥82%
Physical Parameter
Operation TEMP/ Humidity -20°C~+55°C, 5%~90% RH non-condensing
Storage TEMP/ Humidity -40°C~+85°C, 5%~95% RH non-condensing
Dimension (L×W×H) 82×28×23mm, cable length ≤ 250mm
Net /Gross Weight 0.05kg /0.07kg 0.06kg /0.08kg 0.1kg /0.12kg
Lightning Protection 4KV 8/20us, Protection level: IP40
Warranty 1 year, lifelong maintenance
Features
  • DC interface features dustproof and waterproof measures.
  • Output voltage: 12VDC (Default), customizable 5-24VDC with low ripple.
  • Input voltage 44-57VDC, rated output power 12W, greater than 82% efficiency.
  • Comprehensive protection against short circuits, overcurrent, and overtemperature.
  • IEEE802.3af/at standard compliance, supporting both mid-span (4/5+, 7/8-) and end-span (1/2+, 3/6-).
  • 1500V high voltage isolation (input stage to output stage) - applicable to ONV-PD5202 and ONV-PD5202-at models.
Application
10/100M Fast Ethernet PD PoE Splitter Cable with IEEE802.3af/at Standard and 12VDC Output
Dimensions
10/100M Fast Ethernet PD PoE Splitter Cable with IEEE802.3af/at Standard and 12VDC Output
Ordering Information
Model Description
ONV-PD5201 10/100M non-isolated PD PoE splitter cable supporting IEEE 802.3 af/at PoE standard. Input voltage: 44-57VDC. Compatible with 1236 & 4578 dual-mode power supply. Output voltage: 12VDC, maximum full load power: 15W.
ONV-PD5202 10/100M isolated PD PoE splitter cable supporting IEEE 802.3 af/at PoE standard. Input voltage: 44-57VDC. Compatible with 1236 & 4578 dual-mode power supply. Output voltage: 12VDC, maximum full load power: 13W.
ONV-PD5202-at 10/100M isolated high power PD PoE splitter cable supporting IEEE 802.3 af/at PoE standard. Input voltage: 44-57VDC. Compatible with 1236 & 4578 dual-mode power supply. Output voltage: 12VDC, maximum full load power: 24W.
Packing List
Content Quantity Unit
10/100M PD PoE splitter cable 1 PC
Warranty Card and Certificate of Conformity 1 PC
Send your message to this supplier
Send Now

10/100M Fast Ethernet PD PoE Splitter Cable with IEEE802.3af/at Standard and 12VDC Output

Ask Latest Price
Product Detail
Model Number :
ONV-PD5202
Place of Origin :
China
Ethernet Port :
10/100Base-TX auto-sensing, full/half duplex MDI/MDI-X self-adaption
Power Consumption :
Standby<1W, full load <13W
Dimension :
82*28*23mm, cable length ≤ 250mm
Delivery Time :
2-8 work days
Contact Supplier
10/100M Fast Ethernet PD PoE Splitter Cable with IEEE802.3af/at Standard and 12VDC Output
10/100M Fast Ethernet PD PoE Splitter Cable with IEEE802.3af/at Standard and 12VDC Output
10/100M Fast Ethernet PD PoE Splitter Cable with IEEE802.3af/at Standard and 12VDC Output
10/100M Fast Ethernet PD PoE Splitter Cable with IEEE802.3af/at Standard and 12VDC Output

Optical Network Video Technologies (Shenzhen) Co., Ltd.

Verified Supplier
1 Years
shenzhen
Since 2003
Business Type :
Manufacturer
Main Products :
Industrial Ethernet Switch, Industrial Power Supply, Wireless AP
Total Annual :
20000000-30000000
Employee Number :
200~300
Certification Level :
Verified Supplier
