10 Port Gigabit Easy Managed Ethernet Switch With 8x RJ45 And 2x SFP Ports
10 Port Gigabit Easy Managed Ethernet Switch With 8x RJ45 And 2x SFP Ports
10 Port Gigabit Easy Managed Ethernet Switch With 8x RJ45 And 2x SFP Ports
10 Port Gigabit Easy Managed Ethernet Switch With 8x RJ45 And 2x SFP Ports
10 Port Gigabit Easy Managed Ethernet Switch With 8x RJ45 And 2x SFP Ports
10 Port Gigabit Easy Managed Ethernet Switch With 8x RJ45 And 2x SFP Ports
10 Port Gigabit Easy Managed Ethernet Switch With 8x RJ45 And 2x SFP Ports
10 Port Gigabit Easy Managed Ethernet Switch With 8x RJ45 And 2x SFP Ports
Specifications
Packaging Details :
Packaging dimensions: 311*245*74mm, weight: 1.55kg, Carton dimensions: 480*430*352mm, 10 pcs/carton, weight: 16.5kg
Switching capacity :
20Gbps
Certification :
CE, FCC, RoHS
Power consumption :
<15W (full load)
Place of Origin :
China
Jumbo frame :
9.2K
Input voltage :
AC100-240V
Buffer memory :
2M
Operating temperature :
-20°C to +55°C
Delivery Time :
2-8 work days
Brand Name :
ONV
MOQ :
1
Dimensions :
270*181*44.5mm
Forwarding rate :
14.88Mpps
Model Number :
ONV-H53108FMA
Port count :
8*RJ45, 2*SFP
Payment Terms :
T/T,Western Union
MAC table :
8K
Supply Ability :
500000 pcs/month
Description
10-port Gigabit Easy Managed Ethernet Switch
Product Overview
The ONV-H53108FMA is a Gigabit Easy managed Ethernet switch independently developed by ONV. It features 2×100/1000Base-X uplink SFP fiber ports and 8×10/100/1000Base-T adaptive RJ45 ports, with each port supporting wire-speed forwarding.
The switch supports Web management, ONV-NMS cloud management platform, and cloud APP management. It features the RSTP ring network protocol (<50ms) to enhance link redundancy and network reliability, reduce fiber splicing operations and network nodes, and improve construction efficiency. When a unidirectional network fails, communication can be quickly restored to ensure the uninterrupted transmission of important data.
Management capabilities include security network topology, VLAN settings, port management, and remote operation and maintenance. With high reliability, easy installation and maintenance, fast switching function, and multiple access ports, it's suitable for LAN devices of various sizes and environments, including multi-channel video surveillance and wireless coverage networks. Ideal for hotels, campuses, parks, supermarkets, scenic spots, factory dormitories, and small-to-medium enterprises.
Technical Specifications
Model ONV-H53108FMA
Interface Characteristics
Fixed Port 8×10/100/1000Base-T RJ45 ports (Data)
2×100/1000Base-X uplink SFP fiber ports (Data)
Ethernet Port Port 1-8 support 10/100/1000Base-T(X) auto-sensing, full/half duplex MDI/MDI-X self-adaption
Twisted Pair Transmission 10BASE-T: Cat3,4,5 UTP (≤100 meters)
100BASE-TX: Cat5 or later UTP (≤100 meters)
1000BASE-T: Cat5e or later UTP (≤100 meters)
Optical Fiber Port Default no include optical module (optional single-mode/multi-mode, single fiber/dual fiber optical module, LC)
Optical Cable/Distance Multi-mode: 850nm/0-550m
Single-mode: 1310nm/0-40km, 1550nm/0-120km
Chip Parameter
Network Management Type L2 (Web management, platform management)
Network Protocol IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x
Forwarding Mode Store and forward (Full wire speed)
Switching Capacity 20Gbps (non-blocking)
Forwarding Rate@64byte 14.88Mpps
MAC 8K
Buffer Memory 2M
Jumbo Frame 9.2K
LED Indicator Power: PWR (Green), System: SYS (Green), Network: Link (Yellow), Fiber port: L/A (Green)
Reset Switch Press and hold for 6s and release to restore factory settings, short-press 2 times (1s interval) to switch to unmanaged state
Power Supply
Total PWR/Input Voltage 30W/(AC100-240V)
Power Consumption Standby<5W, full load<15W
Power Supply Built-in power supply, AC 100~240V 50-60Hz, 0.56A
Physical Parameter
Operation Temp/Humidity -20°C~+55°C, 5%~90% RH non-condensing
Storage Temp/Humidity -40°C~+80°C, 5%~95% RH non-condensing
Dimension (L×W×H) 270×181×44.5mm
Net/Gross Weight 1.05kg/1.55kg
Installation Desktop, wall mount, 1U/19" cabinet
Certification & Warranty
Lightning Protection Lightning protection: 4KV 8/20us, Protection level: IP30
Certification CE mark, commercial, CE/LVD EN62368-1, FCC Part 15, RoHS
Warranty 1 year, lifelong maintenance
Network Management Feature
Interface IEEE802.3x flow control configuration (Full-duplex)
Port traffic statistics, Port duplex/negotiation rate configuration
Port status display, EEE Energy-saving and green Ethernet function
VLAN Port-based IEEE802.1Q VLAN configuration (4K)
Port Aggregation Static aggregation
Loop Protection Loop protection function
Multicast IGMP Snooping v1/v2, Max 256 multicast groups
Mirroring Bidirectional data mirroring based on port
QoS Diff-Serv QoS, Priority Mark/Remark 8×Output queues of each port, 802.1p/DSCP priority mapping
Security Broadcast storm control, Port isolation, Port speed limit
DHCP DHCP Snooping
Management One-key recovery, Cable status check
Mobile APP operation and maintenance management
Web management (https), ONV-NMS platform management
System Web browser: Mozilla Firefox 2.5 or higher, Google Chrome V42 or higher
Cat5 and above Ethernet cable
TCP/IP, network adapter, and network operating system installed on each computer
Key Features
Gigabit Access with Uplink SFP Fiber Port
  • Support non-blocking wire-speed forwarding.
  • Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
  • Support Gigabit RJ45 port and SFP fiber port combination for flexible networking to meet various scenario needs.
Minimalist Application
  • Support real-time fault alarm and fault location
  • Support remote upgrade, remote restart, and restore factory settings.
  • Cloud platform and mobile APP operation and maintenance management with visual port control, network topology management, and VLAN division
  • Web network management functions include QoS, link aggregation, ring network management, port mirroring, port control, and bandwidth management.
  • Retains practical network management functions while simplifying complex configurations for quick network deployment and centralized operation
Stable and Reliable
  • CE, FCC, RoHS certified
  • User-friendly panel with LED indicators for PWR, SYS, Link, and L/A status
  • Low power consumption, galvanized steel housing, and excellent heat dissipation for stable operation

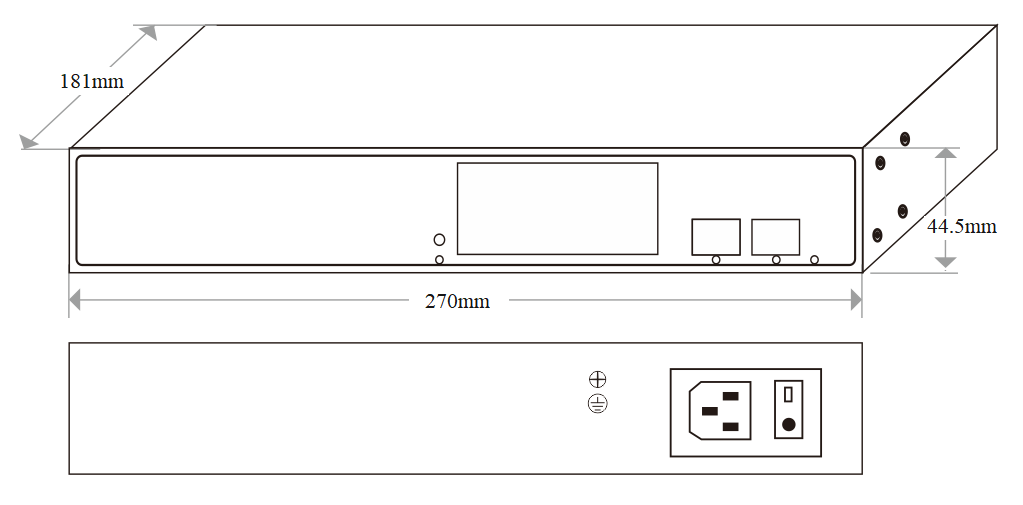

Dimensions
10 Port Gigabit Easy Managed Ethernet Switch With 8x RJ45 And 2x SFP Ports

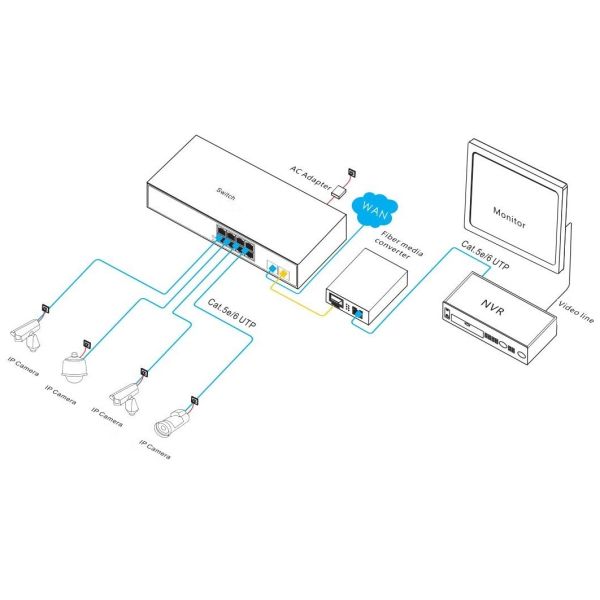

Application
10 Port Gigabit Easy Managed Ethernet Switch With 8x RJ45 And 2x SFP Ports
Ordering Information
Model Description Built-in Power Supply
ONV-H53108FMA Easy managed Ethernet fiber switch with 8×10/100/1000M RJ45 ports and 2×100/1000M uplink SFP fiber ports. Built-in power supply and 1U/19" cabinet mount. 30W
Note: The optical module is not included and needs to be purchased separately.
Packing List
Packing List Qty Unit
10-port Gigabit Easy managed Ethernet switch 1 Set
AC Power Cable 1 PC
Mounting Kit (Mounting Ears) 1 Pair
User Guide 1 PC
Warranty Card and Certificate of Conformity 1 PC
Optical Module Options
Product Model Description Unit
1.25G Optical Module 2630 SFP optical module, 1.25G multi-mode dual fiber 850nm, transmission distance: 550m, LC interface. Support DDM function and hot plugging. PC
2632 SFP optical module, 1.25G single-mode dual fiber 1310nm, transmission distance: 20km, LC interface. Support DDM function and hot plugging. PC
2612-T SFP optical module, 1.25G single-mode single fiber TX1310nm/RX1550nm, transmission distance: 20km, LC interface. Support DDM function and hot plugging. PC
2613-R SFP optical module, 1.25G single-mode single fiber TX1550nm/RX1310nm, transmission distance: 20km, LC interface. Support DDM function and hot plugging. PC
2612-T-SC SFP optical module, 1.25G single-mode single fiber TX1310nm/RX1550nm, transmission distance: 20km, SC interface. Support DDM function and hot plugging. PC
2613-R-SC SFP optical module, 1.25G single-mode single fiber TX1550nm/RX1310nm, transmission distance: 20km, SC interface. Support DDM function and hot plugging. PC
Power Module 2633 1.25G SFP optical module transfers to 10/100/1000M RJ45 port. PC
