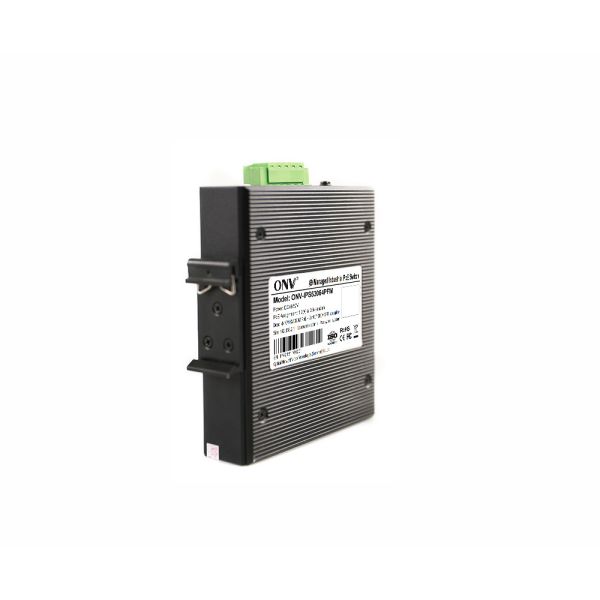

Fanless 6 Port Gigabit Industrial Managed PoE Switch With SFP Fiber Ports
Fanless 6 Port Gigabit Industrial Managed PoE Switch With SFP Fiber Ports
Fanless 6 Port Gigabit Industrial Managed PoE Switch With SFP Fiber Ports
Fanless 6 Port Gigabit Industrial Managed PoE Switch With SFP Fiber Ports
Fanless 6 Port Gigabit Industrial Managed PoE Switch With SFP Fiber Ports
Fanless 6 Port Gigabit Industrial Managed PoE Switch With SFP Fiber Ports
Fanless 6 Port Gigabit Industrial Managed PoE Switch With SFP Fiber Ports
Fanless 6 Port Gigabit Industrial Managed PoE Switch With SFP Fiber Ports
Specifications
Certification :
CE, FCC, RoHS
PoE standard :
IEEE802.3af/at
Power consumption :
<6W standby, <60W full load
MOQ :
1
Model Number :
ONV-IPS53064PFM
Input voltage :
DC44-57V
Operating temperature :
-40°C to +80°C
Delivery Time :
2-8 work days
Forwarding rate :
8.93Mpps
Dimensions :
119×100×30mm
Supply Ability :
500000pcs/month
Brand Name :
ONV
Weight :
0.4kg net
Max PoE power :
30W per port
Port count :
6 (4 RJ45, 2 SFP)
Place of Origin :
China
Payment Terms :
T/T,Western Union
Packaging Details :
Packaging dimensions: 170*150*50mm, weight: 0.5kg, Carton dimensions: 480*430*352mm, 48 pcs/carton, weight: 25kg
Switching capacity :
12Gbps
Description
6-port Gigabit Easy Managed Industrial PoE Switch
Overview

The ONV-IPS53064PFM is a Gigabit Easy managed industrial PoE switch independently developed by ONV. It features 4×10/100/1000Base-T adaptive RJ45 ports and 2×1000Base-X SFP fiber ports. Ports 1-4 support IEEE802.3af/at PoE standard with single-port PoE power output up to 30W.

As a PoE power supply device, it automatically detects and identifies standard powered devices and powers them through network cables. It can power wireless APs, IP cameras, network phones, industrial sensors, and other PoE terminal devices to meet network environments requiring high-density PoE power supply.

Ideal for industrial scenarios including intelligent transportation, rail transportation, power industry, mining, petroleum, shipping, metallurgy, and green energy construction to form economical, efficient, stable, and reliable communication networks.

The ONV-IPS53064PFM supports ONV cloud platform and APP cloud management for security network topology management, port management, PoE management, remote operation and maintenance. It offers high reliability, easy installation and maintenance, fast switching capabilities, and multiple access ports suitable for various LAN device connections.

Technical Specifications
Model ONV-IPS53064PFM
Interface Characteristics
Fixed Port 1×DC5521 power jack, 2×1000Base-X uplink SFP fiber ports (Data), 4×10/100/1000Base-T PoE ports (Data/Power), 2 set V+, V- redundant DC power port (5Pin Phoenix terminal)
Ethernet Port Port 1-4 support 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption
Twisted Pair Transmission 10BASE-T: Cat3,4,5 UTP (≤100 meters), 100BASE-TX: Cat5 or later UTP (≤100 meters), 1000BASE-T: Cat5e/6 or later UTP (≤100 meters)
Optical Fiber Port Default no include optical modules (optional single-mode/multi-mode, single fiber/dual fiber optical module. LC)
Optical Cable/Distance Multi-mode: 850nm/0-550m, Single-mode: 1310nm/0-40km, 1550nm/0-120km
Chip Parameter
Network Management Type L2
Network Protocol IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x
Forwarding Mode Store and forward (Full wire-speed)
Switching Capacity 12Gbps (non-blocking)
Forwarding Rate@64byte 8.93Mpps
MAC 2K
Buffer Memory 2M
Jumbo Frame 9.2K
LED Indicator Power/System: SYS (Green), Network: Link (Yellow), PoE: PoE (Green), Fiber port: L/A (Green)
Reset Switch Press for 6 seconds to restore factory settings, Short press twice (1 second interval) to switch to unmanaged state
PoE & Power Supply
PoE Port Port 1-4
PoE Management Port PoE output on/off, Check real-time power status of port PoE
Power Supply Pin 1/2 (+) 3/6 (-)
Max Power Per Port 30W, IEEE802.3af/at
Power Consumption Standby<6W, full load<60W
Input Voltage/Interface DC44-57V, 5P industrial Phoenix terminal, DC5521 power jack. Support reverse connection protection.
Power Supply No, optional 48V/60W or 48V/120W industrial power supply
Physical Parameter
Operation Temp/Humidity -40°C~+80°C, 5%~90% RH non-condensing
Storage Temp/Humidity -40°C~+85°C, 5%~95% RH non-condensing
Dimension (L×W×H) 119×100×30mm
Net/Gross Weight 0.4kg/0.5kg
Installation Desktop, 35mm DIN Rail
Certification & Warranty
Lightning Protection IEC61000-4-3 (RS):10V/m (80-1000MHz), FCC Part 15/CISPR22 (EN55022): Class A, IEC61000-6-2 (Common Industrial Standard), IEC61000-4-9 (Pulsed magnet field): 1000A/m, IEC61000-4-10 (Damped oscillation): 30A/m 1MHz, IEC61000-4-12/18 (Shockwave): CM2.5kV, DM1kV, Protection level: IP40, Lightning protection: 6KV 8/20us, IEC61000-4-4(EFT): Power cable: ±4kV, data cable: ±2kV, IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s, IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge, IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz), IEC61000-4-8 (Power frequency magnetic field): 100A/m, 1000A/m, 1s-3s, IEC61000-4-5 (Surge): Power cable: CM±4kV/DM±2kV, data cable: ±4kV
Mechanical Properties IEC60068-2-6 (Anti Vibration), IEC60068-2-32 (Free Fall), IEC60068-2-27 (Anti Shock)
Certification CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class A, RoHS
Warranty 5 years, lifelong maintenance
Software
Interface EEE Energy-saving and green Ethernet function, Port traffic statistics, IEEE802.3x flow control (Full-duplex), Port status display, Port duplex/negotiation rate configuration
VLAN Port-based IEEE802.1Q VLAN configuration (4K)
Port Aggregation Static aggregation
Loop Protection Loop protection function
Multicast IGMP Snooping v1/v2, Max 32 multicast groups
Port Mirroring Bidirectional data mirroring based on port
QoS Diff-Serv QoS, Priority Mark/Remark 8×Output queues of each port, 802.1p/DSCP priority mapping
Security Broadcast storm control, Port isolation, Port speed limit
Management Mobile APP operation and maintenance management, ONV cloud platform management, One-key recovery, Web Management
System Web browser: Mozilla Firefox 2.5 or higher, Google Chrome V42 or higher, Cat5 and above Ethernet cable, TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, Mac OS X) installed on each computer in the network
Fanless 6 Port Gigabit Industrial Managed PoE Switch With SFP Fiber PortsFeatures
Gigabit Access, Uplink SFP Fiber Port
  • Support non-blocking wire-speed forwarding
  • Support full-duplex based on IEEE 802.3x and half-duplex based on Backpressure
  • Gigabit RJ45 port and uplink Gigabit SFP fiber port combination for flexible networking to meet various scenario needs
Smart PoE Power Supply
  • Comply with IEEE 802.3 af/at PoE standard, automatically identify PoE devices for power supply without damaging non-PoE devices
  • Support remote PoE management function including remote on/off of PoE port, port power status check, and PoE port fault query
  • 4×10/100/1000Base-T RJ45 ports support PoE power for security monitoring, industrial automation systems, wireless coverage and other scenarios
Minimalist Application
  • Support real-time fault alarm and fault location
  • Support remote upgrade, remote restart, and restore to factory settings
  • Support cloud platform and APP cloud management with visualized PoE power supply control, network topology management, and VLAN division
  • Web network management function, QoS, link aggregation, ring network management, port mirroring, port control, and bandwidth management
Stable and Reliable
  • CE, FCC, RoHS certifications
  • User-friendly panel with LED indicators for PWR, SYS, Link, and L/A status
  • Low power consumption, aluminum alloy housing with excellent heat dissipation for stable operation

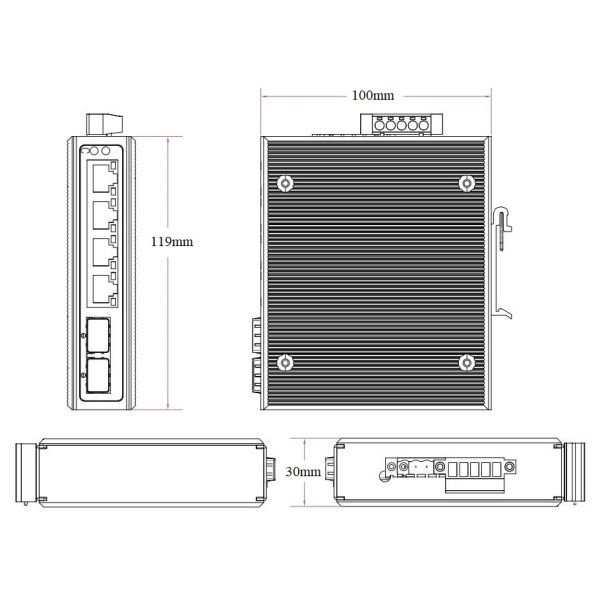

Dimension
Fanless 6 Port Gigabit Industrial Managed PoE Switch With SFP Fiber Ports

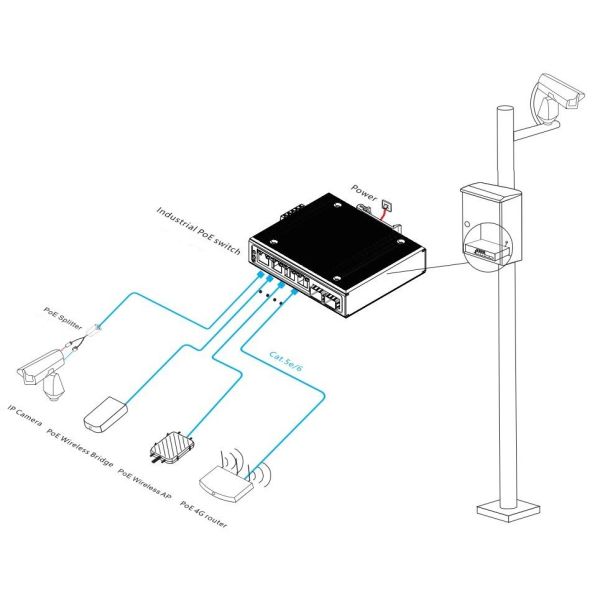

Application
Fanless 6 Port Gigabit Industrial Managed PoE Switch With SFP Fiber Ports
Ordering Information
Model Description Recommended Power Supply
ONV-IPS53064PFM Easy managed industrial PoE switch with 2×1000M uplink SFP fiber ports and 4×10/100/1000M RJ45 ports. Port 1-4 support IEEE802.3 af/at PoE standard. Supports dual DC redundant power input (Phoenix terminal connection) and DIN rail mounting. 60W/120W
Note: The optical module and power supply are not included and need to be purchased separately.
Packing List
Packing List Qty Unit
6-port Gigabit Easy managed industrial PoE switch 1 Set
User Guide 1 PC
Warranty Card and Certificate of Conformity 1 PC
Optical Module
Product Model Description Unit
1.25G Optical Module 2630-G Industrial SFP optical module, 1.25G multi-mode dual fiber 850nm, transmission distance: 550m, LC interface, supports DDM function and hot plugging. PC
2632-G Industrial SFP optical module, 1.25G single-mode dual fiber 1310nm, transmission distance: 20km, LC interface, supports DDM function and hot plugging. PC
2612-T-G Industrial SFP optical module, 1.25G single-mode single fiber TX1310nm/RX1550nm, transmission distance: 20km, LC interface, supports DDM function and hot plugging. PC
2613-R-G Industrial SFP optical module, 1.25G single-mode single fiber TX1550nm/RX1310nm, transmission distance: 20km, LC interface, supports DDM function and hot plugging. PC
2612-T-SC-G Industrial SFP optical module, 1.25G single-mode single fiber TX1310nm/RX1550nm, transmission distance: 20km, SC interface, supports DDM function and hot plugging. PC
2613-R-SC-G Industrial SFP optical module, 1.25G single-mode single fiber TX1550nm/RX1310nm, transmission distance: 20km, SC interface, supports DDM function and hot plugging. PC
Power Supply
Product Model Description Unit
60W DIN Rail Industrial Power Supply GWS-DP60-48 DIN Rail 60W single set of output power supply. Input Voltage: AC100V~240V 50-60Hz, 1.0A. Output Voltage: DC48V, 1.25A. Operation Temperature: -40℃ to +70℃ PC
120W DIN Rail Industrial Power Supply GWS-DP120-48 DIN Rail 120W single set of output power supply. Input Voltage: AC100V~240V 50-60Hz, 2.3A. Output Voltage: DC48V, 2.5A. Operation Temperature: -40℃ to +70℃ PC
Related Products
Model Description
ONV-IPS53064PFGM Easy managed industrial PoE switch with 1×100/1000M uplink SFP fiber port and 5×10/100/1000M RJ45 ports. Port 1-4 support IEEE802.3 af/at PoE standard. Supports dual DC redundant power input (Phoenix terminal connection) and DIN rail mounting.
ONV-IPS53108PFM Easy managed industrial PoE switch with 2×100/1000M uplink SFP fiber ports and 8×10/100/1000M RJ45 ports. Port 1-8 support IEEE802.3 af/at PoE standard. Supports dual DC redundant power input (Phoenix terminal connection) and DIN rail mounting.
