2.4GHz 300Mbps Outdoor Wireless Bridge with 8dBi Antenna for Long-Range Point-to-Point Connectivity
2.4GHz 300Mbps Outdoor Wireless Bridge with 8dBi Antenna for Long-Range Point-to-Point Connectivity
2.4GHz 300Mbps Outdoor Wireless Bridge with 8dBi Antenna for Long-Range Point-to-Point Connectivity
2.4GHz 300Mbps Outdoor Wireless Bridge with 8dBi Antenna for Long-Range Point-to-Point Connectivity
2.4GHz 300Mbps Outdoor Wireless Bridge with 8dBi Antenna for Long-Range Point-to-Point Connectivity
2.4GHz 300Mbps Outdoor Wireless Bridge with 8dBi Antenna for Long-Range Point-to-Point Connectivity
2.4GHz 300Mbps Outdoor Wireless Bridge with 8dBi Antenna for Long-Range Point-to-Point Connectivity
2.4GHz 300Mbps Outdoor Wireless Bridge with 8dBi Antenna for Long-Range Point-to-Point Connectivity
Specifications
Model Number :
ONV-WQ300M2401
Wireless Rate :
300Mbps
Storage Temperature :
-40~80°C
Place of Origin :
China
MOQ :
1
Ethernet Ports :
2*10/100Mbps LAN
Delivery Time :
2-7 work days
Packaging Details :
Packaging dimensions: 237*162*62mm, weight: 0.416Kg, Carton dimensions: 650*340*245mm, 40 pcs/carton, weight: 10.5kg
Brand Name :
ONV
Frequency Band :
2.4GHz
Operating Temperature :
-10~55°C
Wireless Standard :
IEEE 802.11b/g/n
Supply Ability :
500000pcs/month
Power Supply :
PoE 24V or DC 12V
Payment Terms :
T/T
Description
2.4GHz 300Mbps Outdoor Wireless Bridge

The ONV-WQ300M2401 is an outdoor wireless bridge designed for video surveillance in applications including elevators, tower cranes, residential areas, schools, factories, orchards, farms, and scenic areas. It operates in the 2.4GHz band and can provide a maximum wireless data transmission rate of 300Mbps. It features a built-in 8dBi high-gain directional antenna, resulting in stronger signal penetration and an outdoor point-to-point bridging distance of up to 1000 meters. It can be directly mounted on walls or poles. It can operate in various outdoor environments, including wind, rain, and snow.

Technical Specifications
Model ONV-WQ300M2401
Hardware Specification
CPU MT7628
Storage Flash: 2M, DDR: 8M
Wired Standard IEEE 802.3, IEEE 802.3u
Ethernet Port 2*10/100Mbps LAN ports
Antenna Built-in directional antenna, 8 dBi
Button 1*Reset Button
Power Supply Method PoE 24V or DC 12V
Panel Indicator 4*LED (POWER, LAN, SIG1, SIG2 (signal strength))
Software Specification
Operating Mode Main Bridge (AP mode) Subnet Bridge (Client mode) Subnet Bridge (AP+Client mode)
Wireless Settings Basic settings: wireless name, encryption method, wireless password, wireless mode Advanced settings: BG protection mode, Wi-Fi multimedia (WMM) disabled
Network Settings LAN Settings, DHCP Server Settings
System Management Firmware upgrade, language settings, system configuration, administrator settings, automatic system cleanup
Wireless Specification
Wireless Standard IEEE 802.11b/g/n
Wireless Rate 300Mbps
Wireless Power 20dBm
Wireless Receiver Sensitivity -89dBm
Wireless Frequency Bands 2.4GHz
Physical Specification
Operation Temp/ Humidity -10~55°C, 10%~90% RH non-condensing
Storage Temp/ Humidity -40~80°C, 5%~95% RH non-condensing
Net Dimension 153*78*50mm
Net /Gross Weight 0.316kg/ 0.146kg
Installation Pole-mounted, wall-mounted
Key Features
  • 2.4GHz: Wireless speed 300Mbps
  • 8dBi high-gain directional antenna
  • IP65 waterproof and dustproof protection
  • Two power supply options available: Ethernet port supports PoE input 24V and DC port supports input 12V

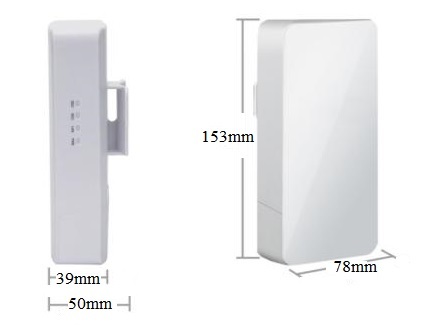

Dimensions
2.4GHz 300Mbps Outdoor Wireless Bridge with 8dBi Antenna for Long-Range Point-to-Point Connectivity

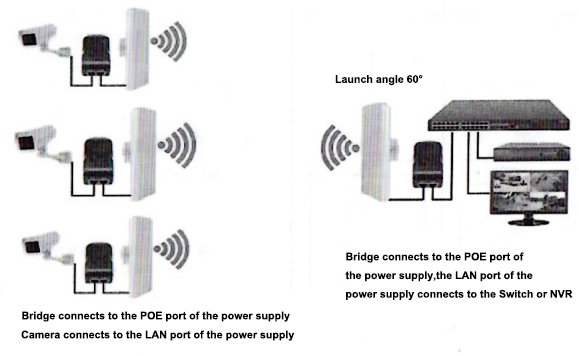

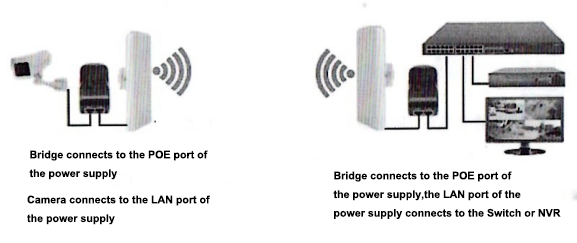

Application Scenarios
Point-to-point connection
2.4GHz 300Mbps Outdoor Wireless Bridge with 8dBi Antenna for Long-Range Point-to-Point Connectivity
Point-to-multiple connection
2.4GHz 300Mbps Outdoor Wireless Bridge with 8dBi Antenna for Long-Range Point-to-Point Connectivity
