5.8GHz 300Mbps Outdoor Wireless Bridge with 5km Range for Long-Distance Transmission
5.8GHz 300Mbps Outdoor Wireless Bridge with 5km Range for Long-Distance Transmission
5.8GHz 300Mbps Outdoor Wireless Bridge with 5km Range for Long-Distance Transmission
5.8GHz 300Mbps Outdoor Wireless Bridge with 5km Range for Long-Distance Transmission
5.8GHz 300Mbps Outdoor Wireless Bridge with 5km Range for Long-Distance Transmission
5.8GHz 300Mbps Outdoor Wireless Bridge with 5km Range for Long-Distance Transmission
5.8GHz 300Mbps Outdoor Wireless Bridge with 5km Range for Long-Distance Transmission
5.8GHz 300Mbps Outdoor Wireless Bridge with 5km Range for Long-Distance Transmission
Specifications
Model Number :
ONV-WQ300M5805
Wired Interface :
2*10/100Mbps LAN ports
Payment Terms :
T/T
Antenna Gain :
14DBi
Supply Ability :
500000 pcs/month
Net Weight :
0.58kg
Place of Origin :
China
Power Consumption :
≤3W
Delivery Time :
2-7 work days
MOQ :
1
Power Supply :
PoE24V 1A (Default)
Brand Name :
ONV
Packaging Details :
Packaging dimensions: 316*190*74mm, weight: 1.01kg, Carton dimensions: 395*330*405mm, 10 pcs/carton, weight: 10.8kg
Transmission Distance :
Up to 5km
Description
5.8GHz 300Mbps Outdoor Wireless Bridge
Overview

The ONV-WQ300M5805 is a long-range 5.8G wireless transmission device that uses wireless communication technology and air as a medium for network data transmission, enabling long-distance point-to-point or point-to-multipoint interconnection. The working data link layer enables local area network interconnection, and the transmission distance can reach up to 5km.

Technical Specification
Model ONV-WQ300M5805
Main Controller Solution AR9344
DRAM DDR2 64M
FLASH 8M
Wired Interface 2*10/100Mbps LAN ports
Data Rate 11a: 54M,48M,36M,24M,18M,12M,9M,6Mbps
11n:7.2M,14.4M,21.7M,28.9M,43.3M,57.8M,65M,72.2M,14.4M,28.9M,43.3M,57.8M,86.7M,115.6M,130M,144.4Mbps
Transmission Method Direct sequence amplification (DSSS)
Modulation Method OFDM/BPSK/QPSK/CCK/DQPSK/DBPSK
Standard IEEE802.11n, IEEE802.11a, IEEE802.3u
Supported Protocol CSMA/CA, TCP/IP, IPX/SPX, NetBEUI, DHCP, NDIS3, NDIS4, NDIS5
Frequency Range 4900~6100MHz
Power Consumption ≤3W
Power Supply PoE 24V 1A (Default) (max voltage: 24V)
RF Power @25℃ ±2dB 802.11a:
6-24Mbps: 23±2dBm
36-48Mbps: 21±2dBm
54Mbps: 20±2dBm
802.11n:
HT20: MCS 0-3: 23±2dBm, MCS 4: 21±2dBm, MCS 5: 20±2dBm, MCS 6: 20±2dBm, MCS 7: 19±2dBm
HT40: MCS 0-3: 21±2dBm, MCS 4: 21±2dBm, MCS 5: 20±2dBm, MCS 6: 19±2dBm, MCS 7: 18±2dBm
Sensitivity

802.11a:

6Mbps ≤ -92dBm, 54Mbps ≤ -76dBm
802.11n:
HT20: MCS 0 ≤ -86dBm, MCS 7 ≤ -68dBm
HT40: MCS 0 ≤ -83dBm, MCS 7 ≤ -65dBm
Antenna System Frequency Range: 5180~5825MHz
Polarization Direction: Vertical (60° horizontal/30° vertical)
Gain: 14DBi
Management Web Management: Support
Telnet: Support
Serial: Support
Security MAC Address Control: Support
Encryption: WEP encryption (64/128 bits), WPA, WPA2, 802.1x
Physical Parameter Operation TEMP/Humidity: -30°C~+65°C, ≤95% RH non-condensing
Storage TEMP/Humidity: 0°C~+40°C, ≤95% RH non-condensing
Dimension: 250*95*65mm
Net/Gross Weight: 0.58kg/1.01kg
Key Features
  • Simplified construction and convenient operation: Support for 24V PoE power supply eliminates independent power cable laying, simplifying installation and reducing labor costs.
  • Adaptive power adjustment: Built-in automatic power control dynamically adjusts transmission power based on distance and environment, ensuring stable video playback.
  • Intelligent networking and flexible expansion: Supports automatic networking between devices with one-to-one and one-to-many modes, compatible with WDS architecture.
  • Deeply optimized video transmission: Dedicated protocol optimization for wireless video surveillance ensures real-time performance and reliability.
  • Economical and environmentally friendly: Overcomes geographical limitations, saving on trenching and cable laying projects with flexible expansion capabilities.
  • Green and energy-saving design: Low-power hardware architecture with Dynamic MIMO Power Saving Mode and Automatic Power Saving Transmission for optimized energy consumption.

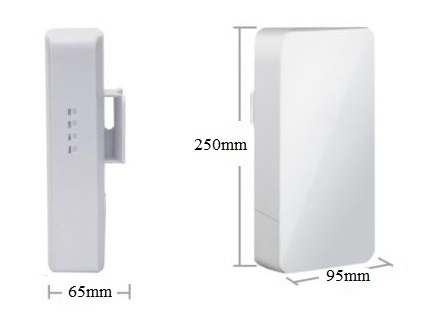

Dimension
5.8GHz 300Mbps Outdoor Wireless Bridge with 5km Range for Long-Distance Transmission
Application Scenarios

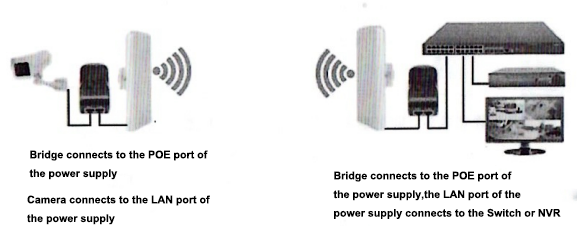

Point-to-point connection:

5.8GHz 300Mbps Outdoor Wireless Bridge with 5km Range for Long-Distance Transmission

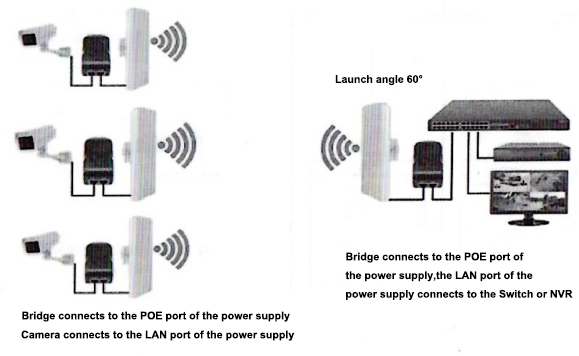

Point-to-multiple connection:

5.8GHz 300Mbps Outdoor Wireless Bridge with 5km Range for Long-Distance Transmission
Ordering Information
Model Description
ONV-WQ300M5805 300M outdoor wireless bridge with 2*10/100M RJ45 ports. 802.11 a/n, 2*2 MIMO PoE 24V, 5.8G, 14dBi antenna.
