UMXK SC UPC SC APC FTTH FIBER OPTIC HIGH-PRECISION LOW-LOSS FAST CONNECTOR
UMXK SC UPC SC APC FTTH FIBER OPTIC HIGH-PRECISION LOW-LOSS FAST CONNECTOR
UMXK SC UPC SC APC FTTH FIBER OPTIC HIGH-PRECISION LOW-LOSS FAST CONNECTOR
UMXK SC UPC SC APC FTTH FIBER OPTIC HIGH-PRECISION LOW-LOSS FAST CONNECTOR
UMXK SC UPC SC APC FTTH FIBER OPTIC HIGH-PRECISION LOW-LOSS FAST CONNECTOR
UMXK SC UPC SC APC FTTH FIBER OPTIC HIGH-PRECISION LOW-LOSS FAST CONNECTOR
UMXK SC UPC SC APC FTTH FIBER OPTIC HIGH-PRECISION LOW-LOSS FAST CONNECTOR
UMXK SC UPC SC APC FTTH FIBER OPTIC HIGH-PRECISION LOW-LOSS FAST CONNECTOR
UMXK SC UPC SC APC FTTH FIBER OPTIC HIGH-PRECISION LOW-LOSS FAST CONNECTOR
UMXK SC UPC SC APC FTTH FIBER OPTIC HIGH-PRECISION LOW-LOSS FAST CONNECTOR
UMXK SC UPC SC APC FTTH FIBER OPTIC HIGH-PRECISION LOW-LOSS FAST CONNECTOR
UMXK SC UPC SC APC FTTH FIBER OPTIC HIGH-PRECISION LOW-LOSS FAST CONNECTOR
Specifications
Supply Ability :
500，000/month
Use :
FTTX FTTH, FTTH FTTB FTTX Network
Interface Type :
UPC/APC
Return loss :
45dB
Brand Name :
UMXK
Length :
60MM
Core material :
Ceramics
Insertion loss :
0.4dB
Place of Origin :
Henan, China
Payment Terms :
T/T
Type :
Fiber Adapter & Connectors,
MOQ :
100 pieces
Packaging Details :
carton packaging
Color :
BLUE/GREEN
Price :
$0.23-0.29 / piece
Model Number :
UPC-APC
Weight :
0.6kg/100PCS
Operating wavelength :
1200-1600nm
Shell material :
Plastic
Delivery Time :
15days
Warranty Time :
1YEARS
Description
OPTICAL NETWORK EQUIPMENT FTTH LOW LOSS HIGH PRECISION 60MM SC UPC QUICK CONNECTOR
Product Description:

Pre-embedded fiber optic connectors feature low insertion loss, excellent repeatability, fast installation, no fusion splicing required, and a loss of approximately 0.4dB, ensuring stability and high efficiency.

60mm in length, heat and low temperature resistant, structurally stable, and reusable. Operating wavelength is 1200nm-1600nm, with a return loss ≤45dB.

Uses ceramic ferrules, compatible with both SC UPC and SC APC types, although this may slightly increase optical attenuation. Packaged in a cardboard box of 100 pieces, each box includes one free length extender.

Model Basic style
Color Blue/Green
size 60mm
Weight 0.64kg/100pcs
Working temperature -40℃~70℃
Material Plastic casing, ceramic core
Insertion loss 0.4dB
Return loss 45dB
Type upc/apc

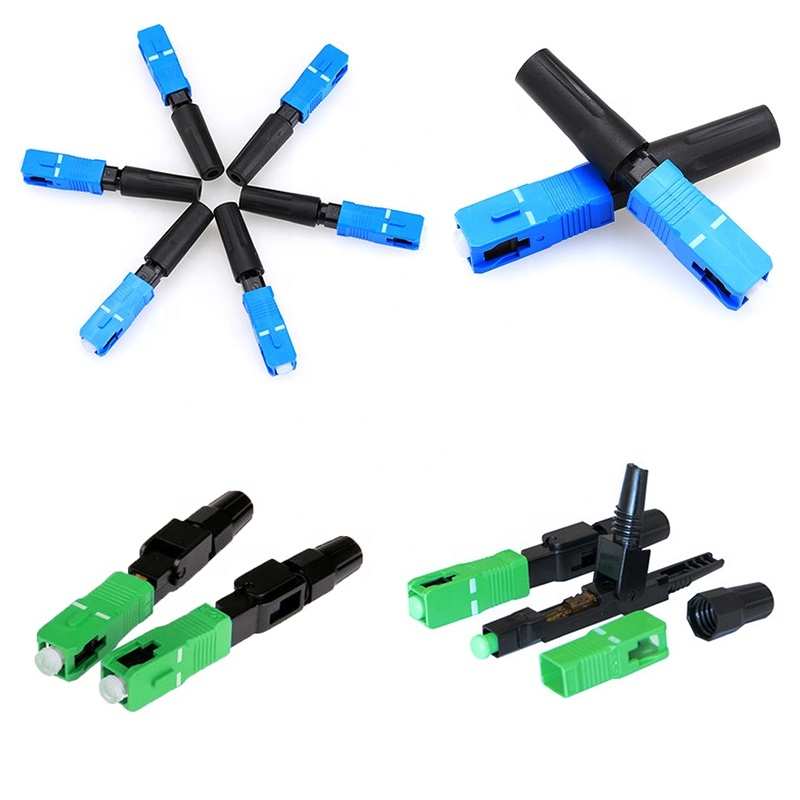

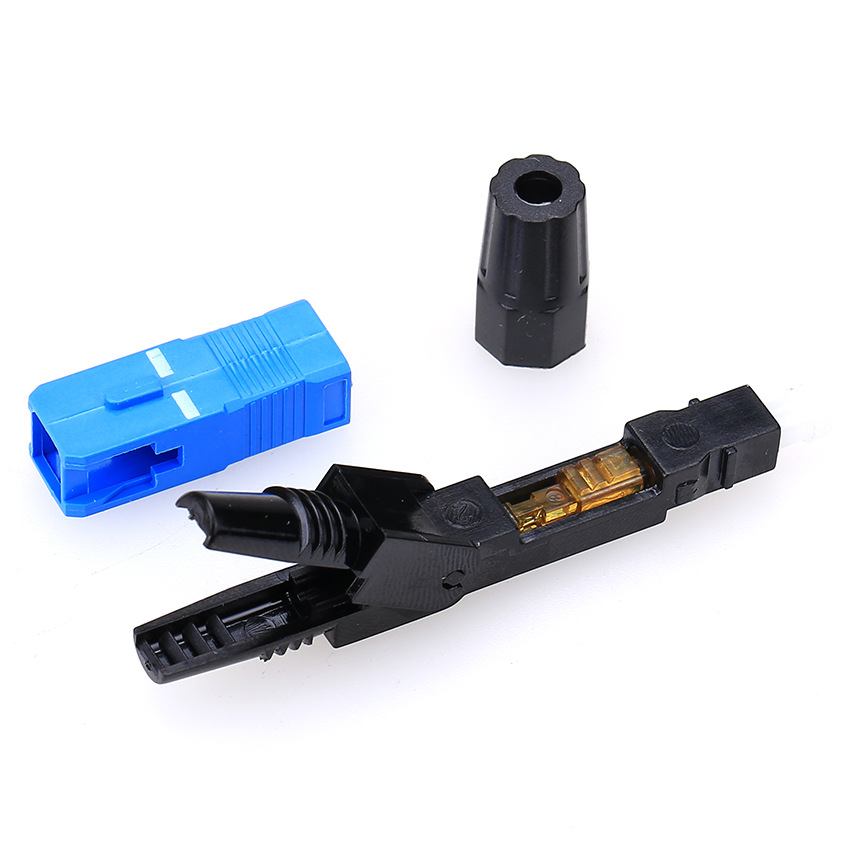

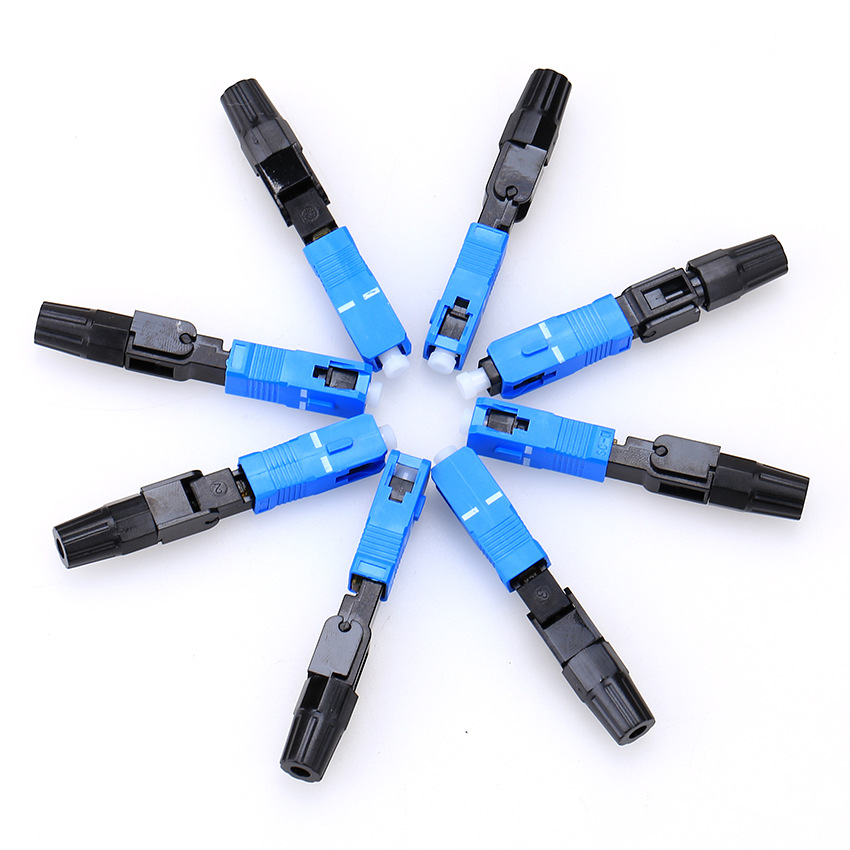

Product photo:
UMXK SC UPC SC APC FTTH FIBER OPTIC HIGH-PRECISION LOW-LOSS FAST CONNECTOR

UMXK SC UPC SC APC FTTH FIBER OPTIC HIGH-PRECISION LOW-LOSS FAST CONNECTOR

UMXK SC UPC SC APC FTTH FIBER OPTIC HIGH-PRECISION LOW-LOSS FAST CONNECTOR
