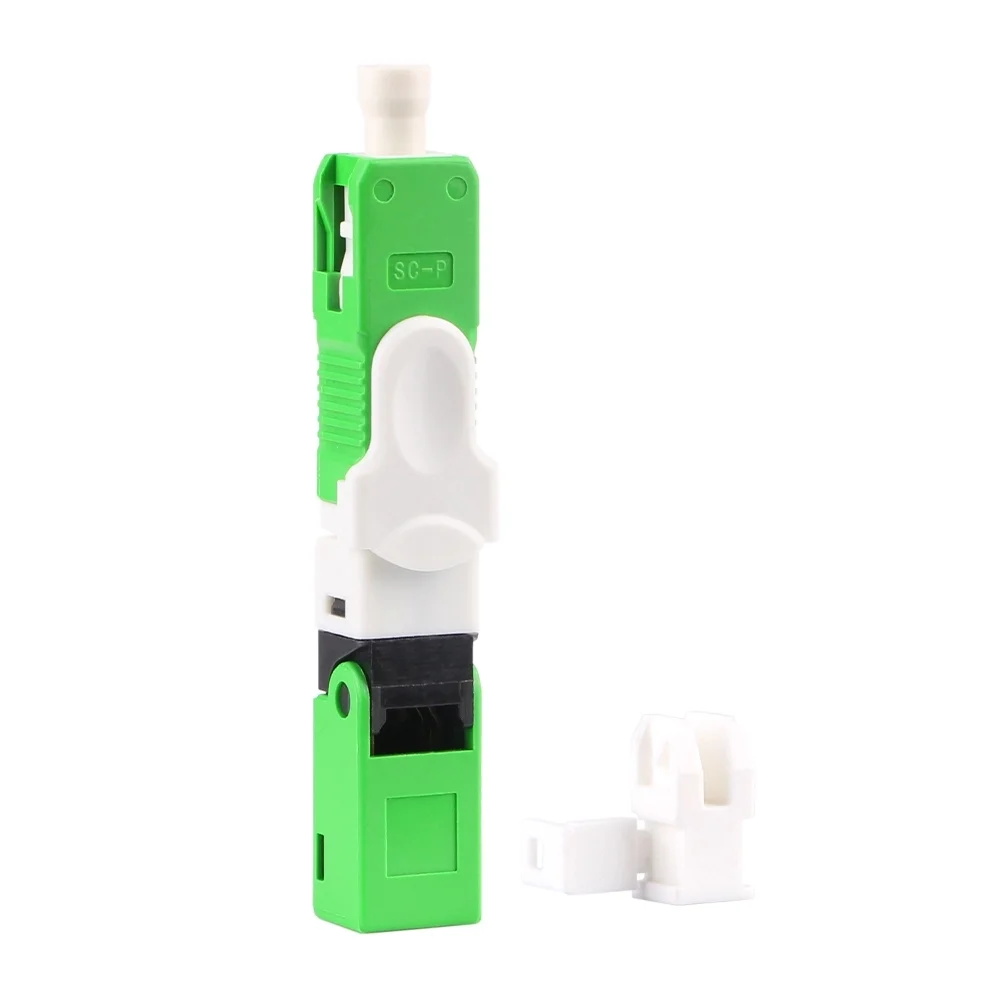

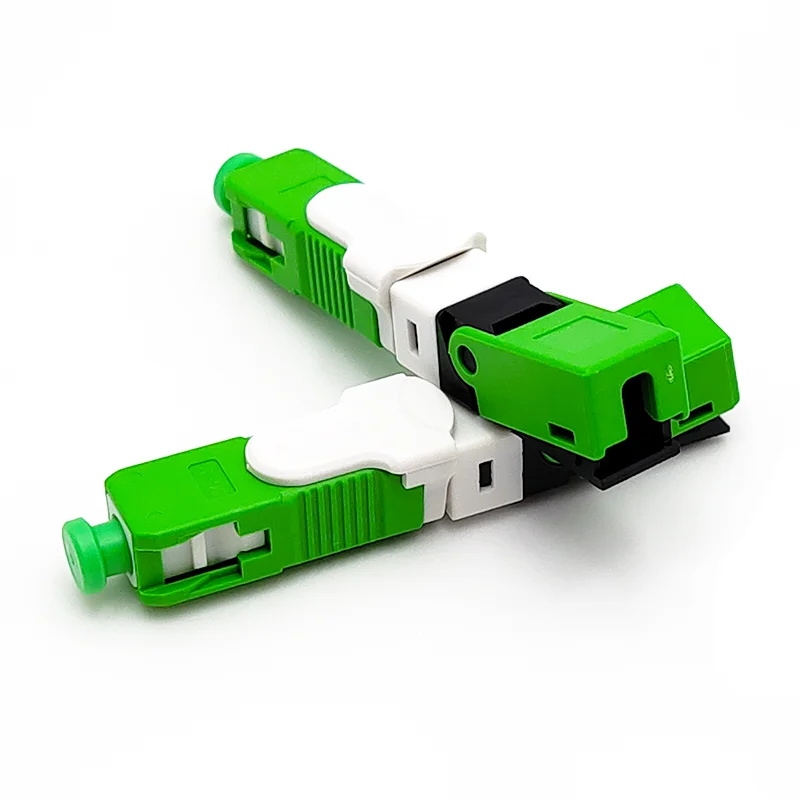

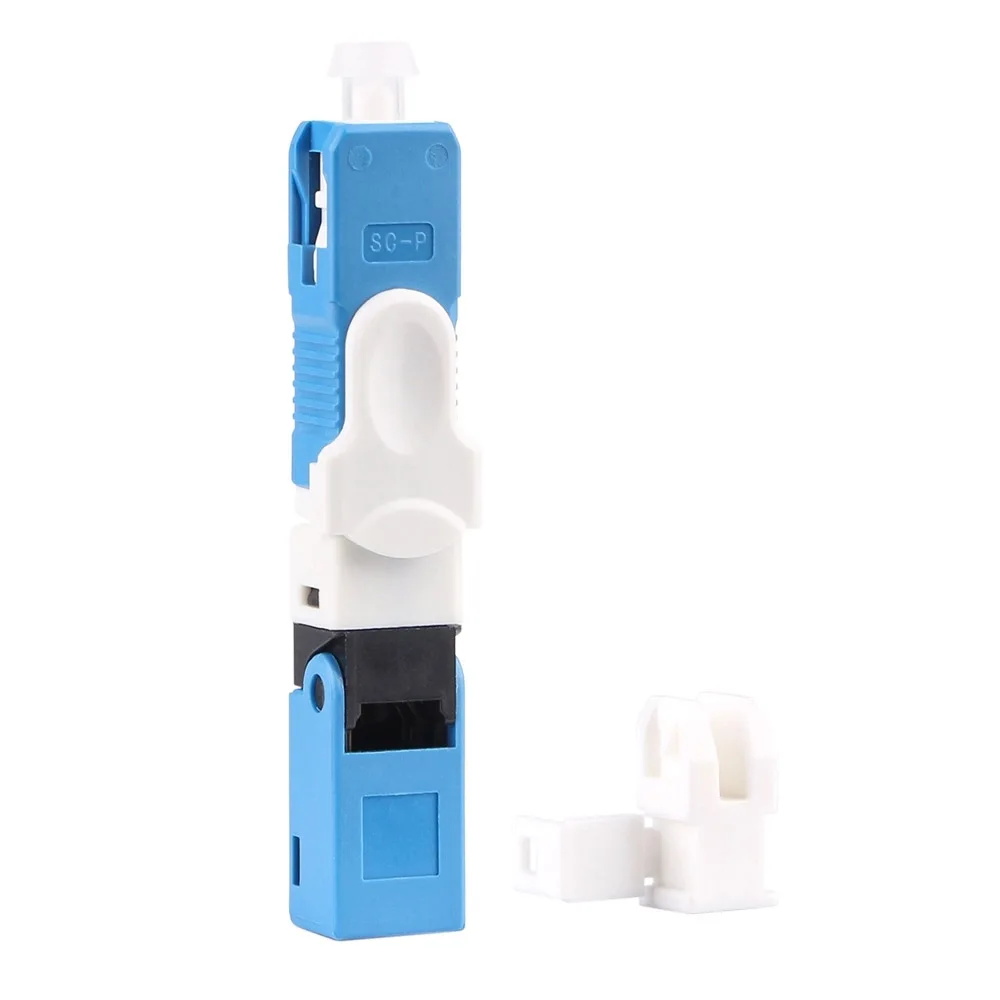

UMXK ESC250D FTTH SC UPC SC APC Embedded Optical Fiber Quick Connector
UMXK ESC250D FTTH SC UPC SC APC Embedded Optical Fiber Quick Connector
UMXK ESC250D FTTH SC UPC SC APC Embedded Optical Fiber Quick Connector
UMXK ESC250D FTTH SC UPC SC APC Embedded Optical Fiber Quick Connector
UMXK ESC250D FTTH SC UPC SC APC Embedded Optical Fiber Quick Connector
UMXK ESC250D FTTH SC UPC SC APC Embedded Optical Fiber Quick Connector
UMXK ESC250D FTTH SC UPC SC APC Embedded Optical Fiber Quick Connector
UMXK ESC250D FTTH SC UPC SC APC Embedded Optical Fiber Quick Connector
UMXK ESC250D FTTH SC UPC SC APC Embedded Optical Fiber Quick Connector
UMXK ESC250D FTTH SC UPC SC APC Embedded Optical Fiber Quick Connector
UMXK ESC250D FTTH SC UPC SC APC Embedded Optical Fiber Quick Connector
UMXK ESC250D FTTH SC UPC SC APC Embedded Optical Fiber Quick Connector
Specifications
Use :
FTTX FTTH, FTTH FTTB FTTX Network
Supply Ability :
100,000pcs/month
Color :
Blue/Green
Tensile test :
≥30N
Insertion loss :
≤0.2 dB
Number of individual boxes :
100pcs
MOQ :
100 pieces
Type :
Fiber Adapter & Connectors
Payment Terms :
T/T
Material :
High-toughness engineering plastic
Length :
52MM
Return loss :
≥50 dB
operating temperature :
-40°C to 80°C
Warranty Time :
1YEARS
Delivery Time :
15days
Model Number :
ESC250D
Place of Origin :
Henan, China
Price :
$0.39-$0.41 / piece
Brand Name :
UMXK
Connector Type :
APC.UPC
Packaging Details :
Carton packaging
Description
Brand ESC250D FTTH SC UPC Optical Fiber Quick Connector SC FTTH Fiber Optic Fast Connector Embedded 100% Original
Product Description:

The ESC250D quick connector is designed for complex overseas construction environments, compatible with SC/UPC and SC/APC interfaces. It features low insertion loss, high return loss, and virtually no attenuation in optical power detection.

The housing is made of high-toughness engineering plastic for easy installation. The pre-filled matching fluid is uniform and stable, non-volatile and non-crystallizing, and its transmittance remains unaffected by repeated opening and closing.

It comes with stripping scales and a cutting guide groove, allowing even beginners to complete a clean and efficient field splice within 10 minutes by following the diagram.

Suitable for dedicated surveillance lines, fiber optic routers, fiber optic cables for home installations, emergency repair points, etc. Its compact size and intuitive indicator light after connection eliminate the need for repeated testing and rework.

Model ESC250D
Type APC/UPC
Color Green,Blue
Size 52*9*8mm
Insertion loss: ≤0.2 dB
Return loss: ≥50 dB
Tensile test ≥30N
Material High-toughness engineering plastic
Note Reusable
