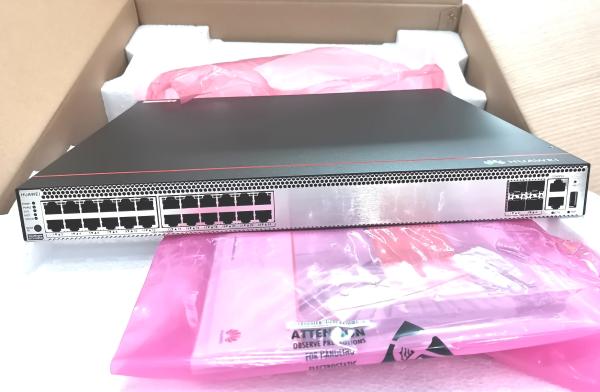

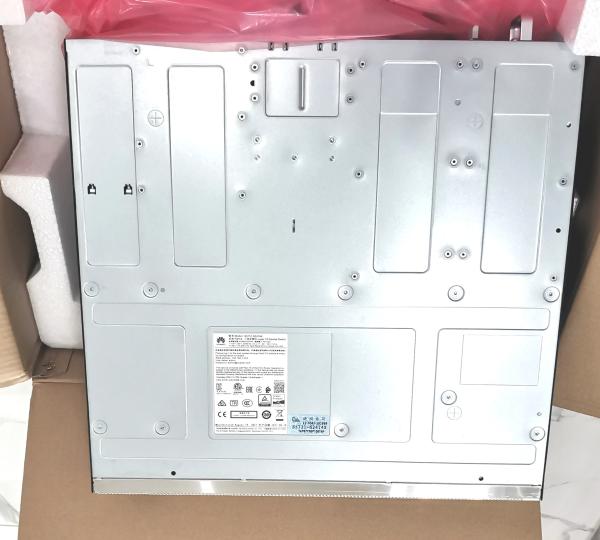

HuaWei S5731 S24T4X Fiber Optic Switch 40000 Gigabit Optical Port
HuaWei S5731 S24T4X Fiber Optic Switch 40000 Gigabit Optical Port
HuaWei S5731 S24T4X Fiber Optic Switch 40000 Gigabit Optical Port
HuaWei S5731 S24T4X Fiber Optic Switch 40000 Gigabit Optical Port
HuaWei S5731 S24T4X Fiber Optic Switch 40000 Gigabit Optical Port
HuaWei S5731 S24T4X Fiber Optic Switch 40000 Gigabit Optical Port
Specifications
Brand Name :
HuaWei
Model Number :
S5731-S24T4X
Certification :
FCC,CCC,CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
Western Union, T/T
Supply Ability :
100
Delivery Time :
3-5days
Product name :
S5731-S24T4X
Forwarding Performance :
96 Mpps
Switching Capacity2 :
128 Gbps/672 Gbps
Fixed Ports :
24 x 10/100/1000Base-T Ethernet ports, 4 x 10 Gig SFP+
PoE+ :
Not supported
MAC entries :
32K
VXLAN :
L2 and L3 gateways
Warranty :
1Year
Description

HuaWei S5731 S24T4X Fiber Optic Switch 40000 Gigabit Optical Port

HuaWei S5731-S24T4X 24 Gigabit electrical port + 40000 Gigabit optical port three-layer switch

Descriptions

The CloudEngine S5731-S series switches were developed based on next-generation high-performing hardware and the HW Versatile Routing Platform (VRP). The CloudEngine S5731-S supports simplified operations and maintenance (O&M), intelligent stack (iStack), flexible Ethernet networking. It also provides enhanced Layer 3 features and mature IPv6 features. The CloudEngine S5731-S can be used in various scenarios. For example, it can be used as an access or aggregation switch on a campus network or as an access switch in a data center.

Specifications

Product Model
CloudEngine S5731-S24T4X
CloudEngine S5731-S48T4X
CloudEngine S5731-S24P4X
CloudEngine S5731-S48P4X
Forwarding Performance
96 Mpps
125 Mpps
96 Mpps
125 Mpps
Switching Capacity2
128 Gbps/672 Gbps
176 Gbps/672 Gbps
128 Gbps/672 Gbps
176 Gbps/672 Gbps
Fixed Ports
24 x 10/100/1000Base-T Ethernet ports, 4 x 10 Gig SFP+
48 x 10/100/1000Base-T Ethernet ports, 4 x 10 Gig SFP+
24 x 10/100/1000Base-T Ethernet ports, 4 x 10 Gig SFP+
48 x 10/100/1000Base-T Ethernet ports, 4 x 10 Gig SFP+
PoE+
Not supported
Not supported
Supported
Supported
MAC Features
32K MAC entries
MAC address learning and aging
Static, dynamic, and blackhole MAC address entries
Packet filtering based on source MAC addresses
VLAN Features
4,094 VLANs
Guest VLAN, Voice VLAN
GVRP
MUX VLAN
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
1:1 and N:1 VLAN mapping
Super Virtual Fabric (SVF)
Plug-and-play SVF client
Automatic software and patch loading to clients
One-click and automatic delivery of service configurations
Independent client running
VXLAN
VXLAN L2 and L3 gateways
Centralized and distributed gateways
BGP-EVPN
Configured through the NETCONF protocol
Interoperability
VBST (compatible with PVST/PVST+/RPVST)
LNP (similar to DTP)
VCMP (similar to VTP)

HuaWei S5731 S24T4X Fiber Optic Switch 40000 Gigabit Optical PortHuaWei S5731 S24T4X Fiber Optic Switch 40000 Gigabit Optical Port

FAQ

Q: Can we get samples?

A: Yes, but we need to charge a sample fee.

Q: Can you offer better prices? And discount?

A: Yes, Powerlink does not have a minimum order quantity, but different quantities have different prices.

Q: Can you take care of the goods?

Answer: If you wish, we will organize and arrange all the deliveries to your office.

Q: How about the payment item?

Answer: T/T, PAYPAL, Western Union.

Q: Delivery time?

A: Sample order, 3-5 working days. For larger orders, 5-8 working days after receiving the deposit.

Q: How long is your warranty period?

Answer: The warranty period is 12 months. This warranty does not cover damage caused by man-made damage, improper maintenance, improper use, negligence, normal wear and tear and force majeure (such as natural disasters, earthquakes, fires, etc.).
