Overviews
Layer 2 switch with (4) 10GbE RJ45 ports and (1) GbE, 802.3at PoE+ RJ45 input.

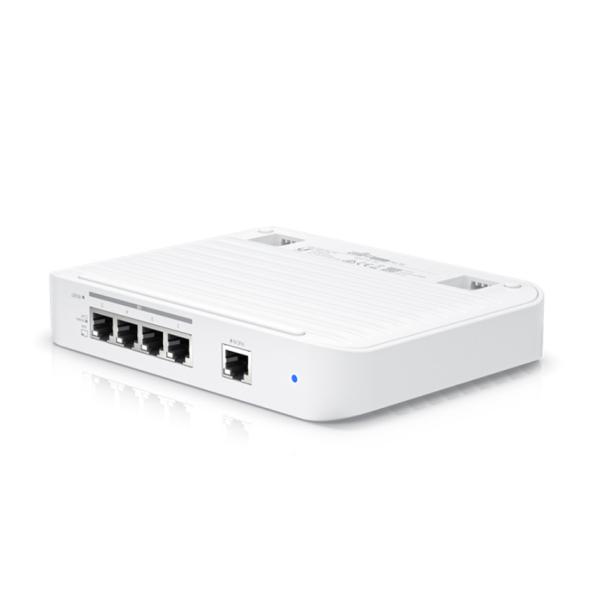

The Switch Flex XG (USW Flex XG) is a fully managed, mult-gigabit, Layer 2 switch with (4) 10GbE RJ45 ports and (1) GbE PoE input. The USW Flex XG sports slim, compact housing and can be mounted on a desktop*. This switch can also be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
Features:
-
- (1) GbE, 802.3at PoE+ RJ45 input
- (4) 10GbE RJ45 ports
- Compact, slim housing
- Can be powered with a 5V, 5A USB-C adapter
Specifications
| Mechanical | |
|---|---|
| Dimensions | 135 x 185 x 32 mm (5.31 x 7.28 x 1.27") |
| Weight | 1.2 kg (2.65 lb) |
| Enclosure Material | Polycarbonate |
| Hardware | |
| Total Non-Blocking Throughput | 41 Gbps |
| Switching Capacity | 82 Gbps |
| Forwarding Rate | 61.012 Mpps |
| Max Power Consumption | 25W |
| Power Method | (1) 802.3at PoE, 50-57VDC, 25W (1) USB Type-C, 5VDC, 5A |
| Power Supply | 802.3at PoE (Pins 1, 2+/3, 6- or 4, 5+/7, 8-) AC/DC Power Adapter, 5VDC, 5A, 1.5 m Cord (Included) |
| Supported Voltage Range | 90 to 264VAC (Adapter) |
| Management Interface | Ethernet In-Band |
| Networking Interfaces | (1) 10/100/1000 Mbps RJ45 Ethernet (4) 100/1,000/2,500/5,000/10,000 Mbps RJ45 Ethernet |
| Services | SMB Layer 2 Gigabit Ethernet Switch |
| ESD/EMP Protection | Air: ± 16 kV, Contact: ± 12 kV |
| Button | Factory Reset |
| Operating Temperature | -5 to 45° C (23 to 113° F) |
| Operating Humidity | 10 - 90% Noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| System | (1) Power, Blue/White Flashing White: Bootup in Progress Flashing Blue: Firmware Upgrading Steady White: Factory Defaults, Awaiting Adoption Steady Blue: Device is Adopted |
| Ethernet | White: Link or Activity |
FAQ
1. what's the way to pay?
We support T/T, WESTERN UNION,Paypal
2.What's your shipping way?
Shopped by air sea express
3. What is the product used for packing?
We always use catron, Unless you have different packing needs
Our service
1. Strict quality control is carried out in every link from raw material procurement, processing, testing to packaging.
2. The waybill or bill of lading will be provided in time for tracking.
3. 12 months warranty.
