Overview

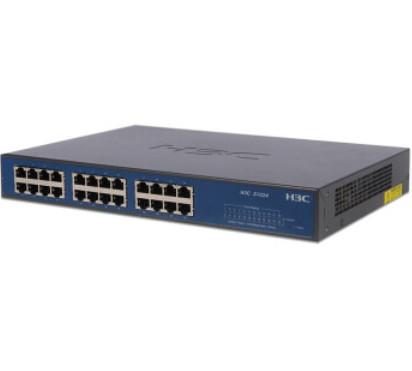

The H3C S1024 switch is an unmanaged Ethernet switching product independently developed by H3C. It provides 24 10/100M adaptive Ethernet interfaces that comply with the IEEE802.3u standard. All ports support full wire-speed non-blocking switching and port auto-flip functions. Installed in a 19-inch standard rack.
Features
1. Comply with IEEE802.3, IEEE802.3u and IEEE802.3x standards;
2. Provide 24 10/100M adaptive Ethernet ports;
3. Each port supports Auto-MDI/MDIX function;
4. Each port provides Speed and Link/Act indicator lights to show the working status of the port;
5. Each port supports full-duplex 802.3x flow control and half-duplex back pressure flow control;
6. Using a shared cache architecture, the available cache space of each port is expanded several times, which can greatly enhance the forwarding performance of bursts of large traffic;
7. Integrated professional lightning protection circuit, which can provide professional protection of lightning protection level 4 (common mode protection 7KV);
Specifications:
| Basic parameters | |
|---|---|
| Product model | SOHO-S1024-CN |
| The product type | Fast ethernet switch |
| Backplane bandwidth | 4.8Gbps |
| Packet forwarding rate | 3.57Mpps |
| Transmission mode | Store-and-forward mode |
| Hardware parameters | |
|---|---|
| The interface type | 10/100Mbps adaptive Ethernet port, RJ-45 |
| The number of interfaces | 24 mouths |
| Transfer rate | 10M/100Mbps |
| LED INDICATOR | The front panel is arranged from left to right with power LEDs, each port INDICATOR, 24 fixed 10/100Base-TX Ethernet ports, and a rear panel with an AC outlet |
| Networking & software | |
|---|---|
| Network standards | IEEE802.3, IEEE802.3u error correcting |
| Duplex transmission | Full duplex is supported |
| MAC ADDRESS TABLE | 8K |
| Other parameters | |
|---|---|
| Supply voltage | AC, 100-240V |
| Maximum power | 9W |
| Dimensions | 330×230×44mm |
| Weight | 2Kg |
