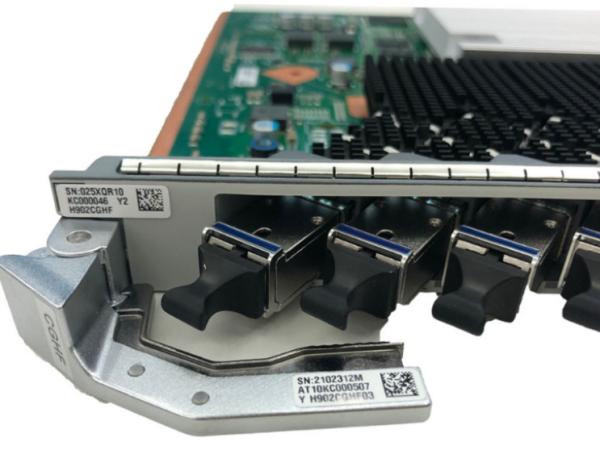

CGHF 16 Port OLT Optical Line Terminal HuaWei MA5800 Interface Board
CGHF 16 Port OLT Optical Line Terminal HuaWei MA5800 Interface Board
CGHF 16 Port OLT Optical Line Terminal HuaWei MA5800 Interface Board
CGHF 16 Port OLT Optical Line Terminal HuaWei MA5800 Interface Board
Specifications
Brand Name :
HuaWei
Model Number :
CGHF
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
20PCS
Delivery Time :
3-5days
Packaging Details :
new in the huawei box.
Product name :
CGHF
Type :
GPON OLT,OLT Optical Line Terminal
Warranty :
1 Year
Power supply :
220VAC/48VDC power
GPON Ports :
16
ARP/router table :
64K
Forwarding capability :
200 Gbit/s
Maximum split ratio :
GPON: 1:128 XG-PON: 1:256
Description

HuaWei MA5800 Interface Board CGHF 16-Port XG-PON& GPON Combo OLT N2a H901CGHF

Descriptions

The H901CGHF board is a 16-port XG-PON and GPON Combo OLT interface board. It works together with the optical network unit (ONU) to provide XG-PON and GPON access services.

Technical Specifications

Specification

H901CGID

H901CGHF

H901CSHF
Port quantity 8 16 16
Forwarding capability 80 Gbit/s 200 Gbit/s 200 Gbit/s
Rate mode Asymmetric rate Asymmetric rate

Supports two modes:

  • Asymmetric
  • Symmetric
Port Rate

GPON upstream: 1.244 Gbit/s

GPON downstream: 2.488 Gbit/s

XG-PON upstream: 2.488 Gbit/s

XG-PON downstream: 9.953 Gbit/s

GPON upstream: 1.244 Gbit/s

GPON downstream: 2.488 Gbit/s

XG-PON upstream: 2.488 Gbit/s

XG-PON downstream: 9.953 Gbit/s

GPON upstream: 1.244 Gbit/s

GPON downstream: 2.488 Gbit/s

XGS-PON upstream: 9.953 Gbit/s & 2.488G bit/s

XGS-PON downstream: 9.953 Gbit/s
Maximum split ratio

GPON: 1:128

XG-PON: 1:256

GPON: 1:128

XG-PON: 1:256

GPON: 1:128

XGS-PON: 1:256
T-CONTs per PON port

GPON/auto type ONU: 1024

XG-PON: 2048

GPON/auto type ONU: 1024

XG-PON: 2048

GPON/auto type ONU: 1024

XGS-PON: 2048
Service flows per PON board 16368 16352 16352
Maximum number of MAC addresses 131072 131072 131072

CGHF 16 Port OLT Optical Line Terminal HuaWei MA5800 Interface Board.CGHF 16 Port OLT Optical Line Terminal HuaWei MA5800 Interface Board
