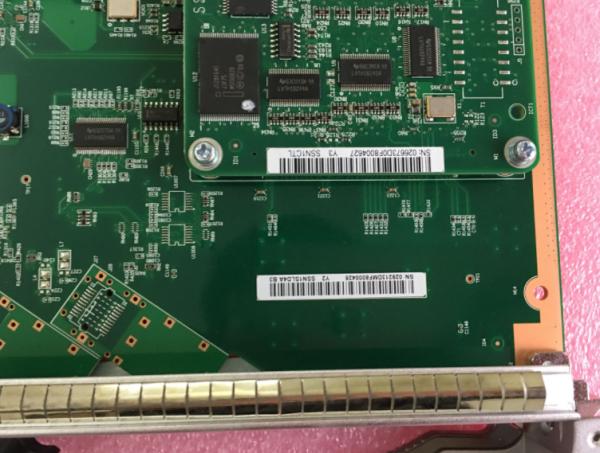

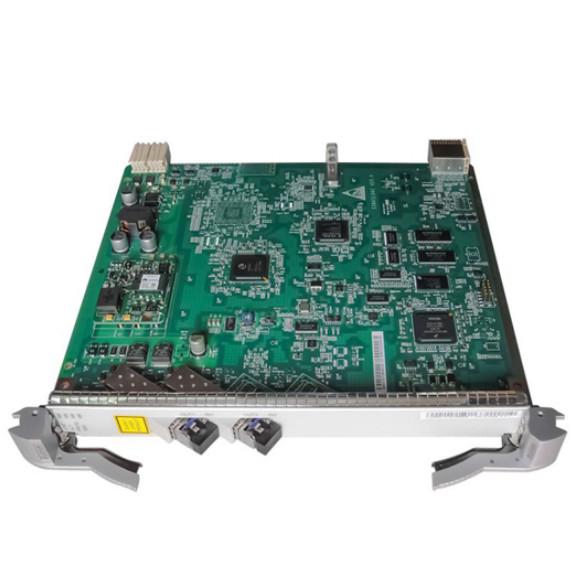

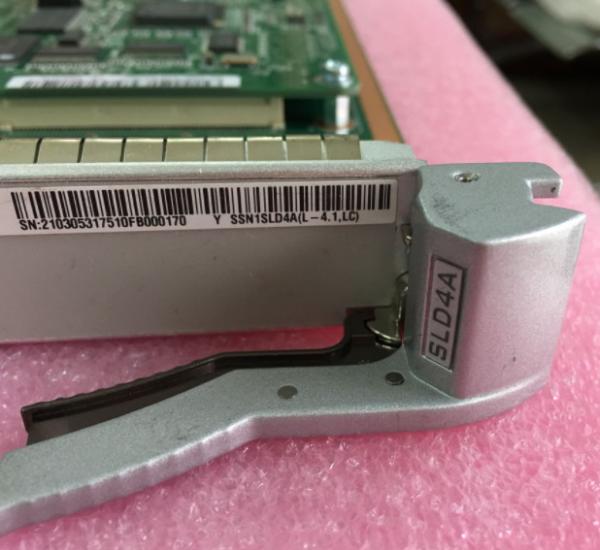

SSN1SLD4A Optical Interface Board Full Duplex 120km For HuaWei OSN1500B OSN 7500
SSN1SLD4A Optical Interface Board Full Duplex 120km For HuaWei OSN1500B OSN 7500
SSN1SLD4A Optical Interface Board Full Duplex 120km For HuaWei OSN1500B OSN 7500
SSN1SLD4A Optical Interface Board Full Duplex 120km For HuaWei OSN1500B OSN 7500
SSN1SLD4A Optical Interface Board Full Duplex 120km For HuaWei OSN1500B OSN 7500
SSN1SLD4A Optical Interface Board Full Duplex 120km For HuaWei OSN1500B OSN 7500
Specifications
Brand Name :
HuaWei
Model Number :
SSN1SLD4A
Certification :
FCC,CCC,CE
Place of Origin :
Guangdong, China
MOQ :
Negotiable
Price :
Negotiable
Model number :
SSN1SLD4A
Working mode :
Full-duplex
Dimensions (H x W x D) :
37.2 mm x 178.7 mm x 193.3 mm (1.46 in. x 7.04 in. x 7.61 in.)
Typical power consumption :
51.0 W
Weight :
1.3 kg (2.87 lb)
Compliant standard :
IEEE 802.3
Warranty :
1 Year
Description

New HuaWei OSN1500B board SSN1SLD4A SDH optical transceiver 622M transmission equipment 2xSTM-4 optical interface board

Overviews

Apply to HuaWei OSN 3500, OSN 7500 equipment to transmit and receive 1xSTM-64 optical signals, at 80~120km.
* Supports the board version replacement function.
* Supports the board version replacement function to substitute for the N1SL64.
* Supports the detection and query of the information about the optical module.
* Supports the ALS function. The optical interface supports the setting of the on/off state of a laser.
* Supports the VC-12 services, VC-3 services, and VC-4 services.
* Supports the transparent transmission and termination of the path overheads.
* Supports the setting and query of the J0, J1, J2, and C2 bytes.
* Supports one channel of ECC communication.
* Supports Two-fiber ring MSP. Four-fiber ring MSP. Linear MSP. SNCP. SNCMP. SNCTP protection schemes.
* Supports inloops and outloops at optical interfaces.
* Supports warm resets and cold resets.
* Supports the query of the manufacturing information of the board.
* Supports the in-service loading of the FPGA.

Specifications

Function and Feature SLD4A
Basic functions Receives and transmits 2xSTM-4 optical signals, and processes 2xSTM-4 standard or concatenation services.
Specifications of the optical interface
  • Supports different types of standard optical interfaces, namely, the I-4, S-4.1, L-4.1, L-4.2, and Ve-4.2.
  • The characteristics of the optical interfaces of the I-4, S-4.1, L-4.1, and L-4.2 types comply with ITU-T G.957.
  • The characteristics of the optical interface of the Ve-4.2 type comply with the standards defined by HW.
Specifications of the optical module
  • Supports the detection and query of the information about the optical module.
  • Provides the ALS function. The optical interface supports the setting of the on/off state of a laser.
  • Supports the usage and monitoring of the SFP optical module, which facilitates the maintenance and upgrading of the optical module.
Service processing Supports the VC-12 services, VC-3 services, VC-4 services, and VC-4-4c concatenation services.
Overhead processing
  • Processes the section overheads of the STM-4 signals.
  • Supports the transparent transmission and termination of the path overheads.
  • Supports the setting and query of the J0, J1, and C2 bytes.
  • Supports one or two channels of ECC communication.
Alarms and performance events Reports various alarms and performance events, which facilitates the management and maintenance of the equipment.
Protection schemes
Maintenance features
  • Supports inloops and outloops at optical interfaces.
  • Supports inloops and outloops on VC-4 paths.
  • Supports warm resets and cold resets. The warm reset does not affect services.
  • Supports the query of the manufacturing information of the board.
  • Supports the in-service loading of the FPGA.
  • Supports the upgrade of the board software without affecting services.
  • Supports the press-to-collect function in fault data collection.
  • Hot board swapping.
