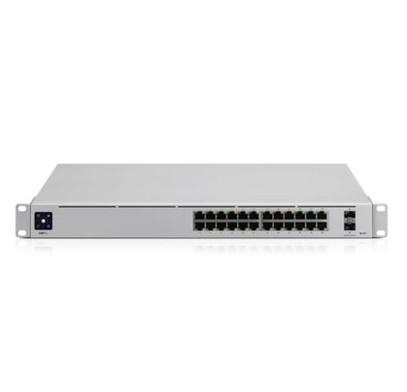

UBNT USW-PRO-24 second-generation Gigabit switch 2 SPF+ ports support link aggregation
Expand and power your network with the Pro PoE Switch, part of the Ubiquiti® Enterprise System. It is available in two models:
• USW-Pro-24-PoE 24 RJ45 ports with 2 SFP+ ports • USW-Pro-48-PoE 48 RJ45 ports with 4 SFP+ ports
802.3bt PoE+
PoE support simplifies your network infrastructure and cabling. Eight ports offer 802.3bt PoE++ to provide up to 64W of power (per port) to your high power PoE devices. Remaining ports offer 802.3af/at PoE.
| USW-Pro-24 |
| Dimensions | 442.4 x 285.4 x 43.7 mm (17.42 x 11.24 x 1.72") |
| Weight With Brackets | 4.30kg(9.48 lb) 4.39 kg (9.681 lb) |
| Interfaces Networking Management | (24) 10/100/1000 RJ45 Ports (2) 1/10G SFP Ethernet Ports Ethernet In-Band |
| Total Non-Blocking Throughput | 44 Gbps |
| Switching Capacity | 88 Gbps |
| Forwarding Rate | 65.472 Mpps |
| Power Method Universal Input USP RPS DC Input | 100-240VAC, 50/60 Hz 52VDC, 7.69A; 11.5VDC, 2.61A |
| Power Supply | AC/DC, Internal, 450W |
| Voltage Range | 100 to 240VAC |
| Max Power Consumption (Excluding PoE Output) | 50W |
| Total Available PoE | 400W |
| PoE Interfaces Ports 1-16
Ports 17-24 802.3af/at 802.3bt | PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) 60W PoE++ IEEE 802.3af/at/bt (Pins 1, 2+; 3, 6-) (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7,
8-) |
| Max. PoE Wattage per Port by PSE 802.3at 802.3bt | 32W 64W |
| Voltage Range 802.3af Mode 802.3at Mode | 44-57V 50-57V |
