MikroTik MT CCR1016-12S-1S Wired 12 SFP Ports Router
MikroTik MT CCR1016-12S-1S Wired 12 SFP Ports Router
MikroTik MT CCR1016-12S-1S Wired 12 SFP Ports Router
MikroTik MT CCR1016-12S-1S Wired 12 SFP Ports Router
MikroTik MT CCR1016-12S-1S Wired 12 SFP Ports Router
MikroTik MT CCR1016-12S-1S Wired 12 SFP Ports Router
Specifications
Place of Origin :
Guangdong, China
Brand Name :
MikroTik
Model Number :
CCR1016-12S-1S
MOQ :
Negotiable
Price :
Negotiable
MIKROTIK :
Cloud Core Router 12x SFP, 1x SFP+ 10Gbit RouterOS L6
Cloud Router :
2GB RAM, LCD panel
RouterOS v6 :
A touchscreen LCD and a USB port
1U :
1U - SFP - SFP+ -
MIKROTIK Router :
Dual Power supplies, RouterOS L6
Gigabit Router :
Mikrotik Gigabit Ethernet ports router CCR1016-12S-1S+
Wired router :
MikroTik MT CCR1016-12S-1S+ CCR1016-12S-1S+ wired router
Selling Units :
Single item
Single package size  :
48X29X6 cm
Single gross weight :
2.000 kg
Description
MT CCR1016-12S-1S+


CCR1016 is an industrial grade router with a cutting edge 16 core Tilera CPU. If you need many millions of packets per second - Cloud Core Router is your best choice.

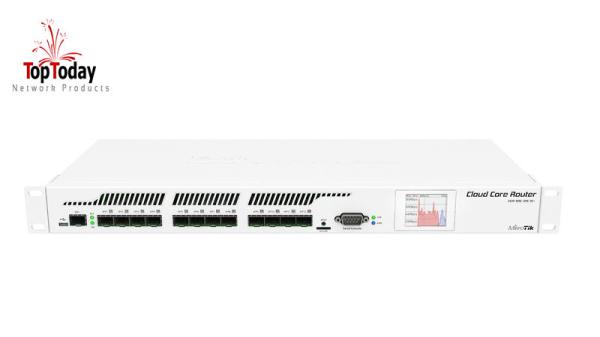

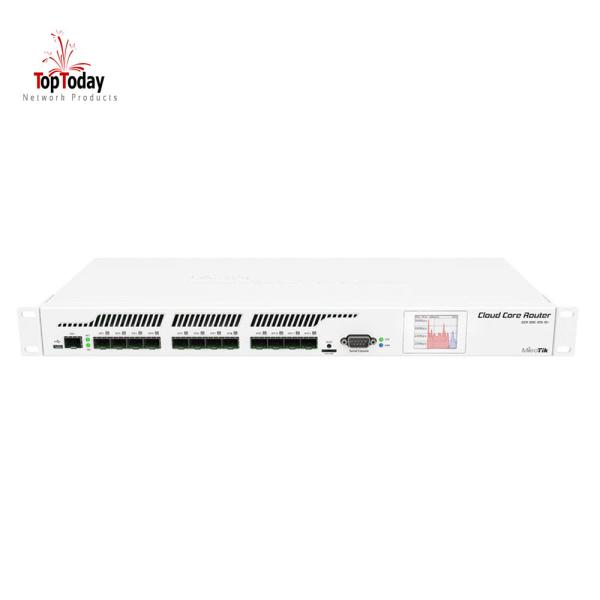

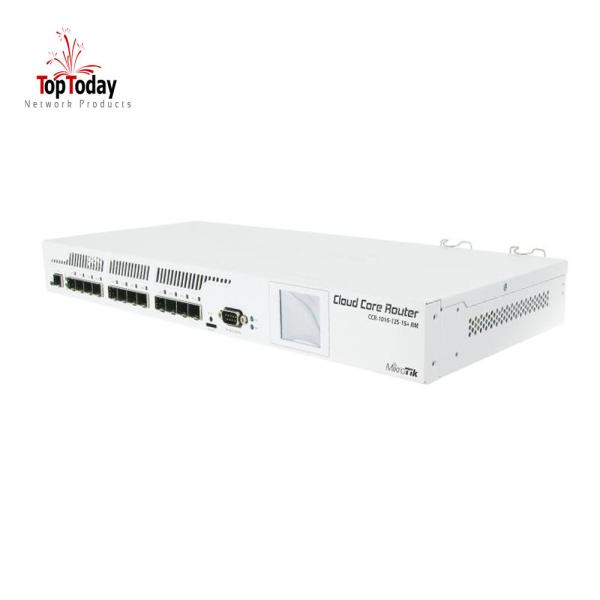

This model has twelve SFP ports and one SFP+ port for 10G connectivity. It is available in a 1U rackmount case and also has a serial console port, a touchscreen LCD and a USB port.

The CCR1016-12S-1S+ comes with redundant power supplies and one RJ45 SFP 10/100/1000M copper module. SFP+ cage supports regular SFP (1.25G) modules as well

Details

Product code

CCR1016-12S-1S+

SFP DDMI

Yes

CPU nominal frequency

1.2 GHz

CPU core count

16

Size of RAM

2 GB

Architecture

TILE

10/100 Ethernet ports

None

10/100/1000 Ethernet ports

None

MiniPCI slots

0

MiniPCI-e slots

0

Number of USB ports

1

Power Jack

2

802.3af support

No

Supported input voltage

24 V - 24 V

PoE in

No

PoE out

No

Voltage Monitor

Yes

PCB temperature monitor

No

CPU temperature monitor

Yes

Operating System

RouterOS v6

Operating temperature range

Max ambient temperature 50° @ 1.2GHz; 70° @ 1GHz CPU core frequency

License level

6

Current Monitor

Yes

CPU

TLR4-01680CG-12CE-A3a

Max Power consumption

44W

SFP ports

12

SFP+ ports

1

USB slot type

microUSB type AB

Serial port

RS232
