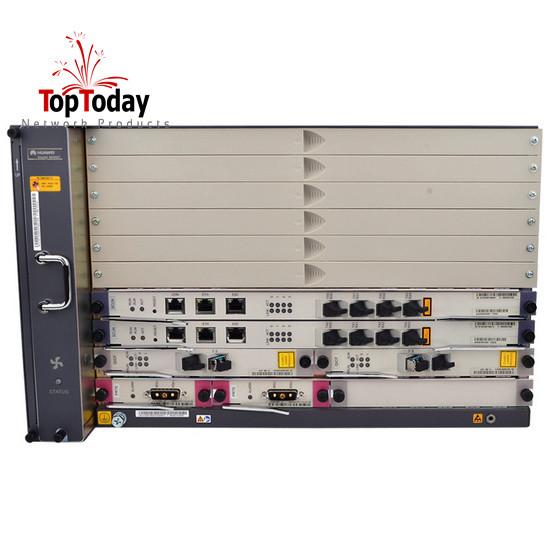

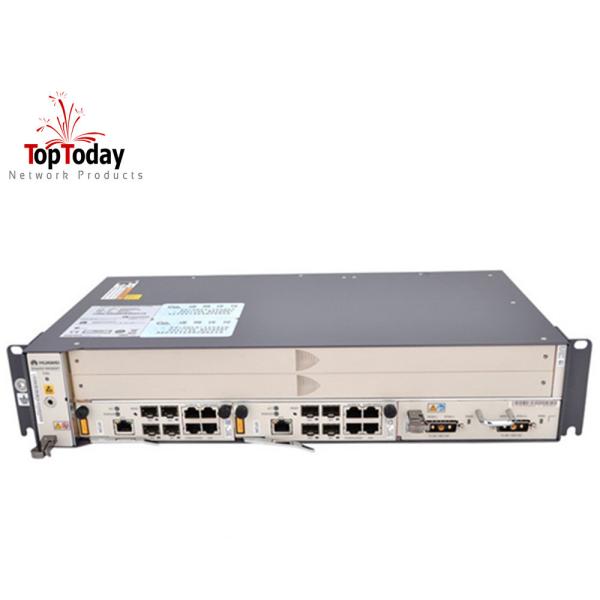

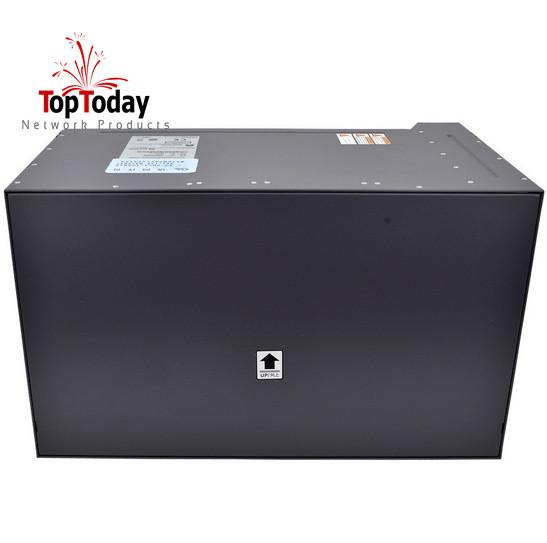

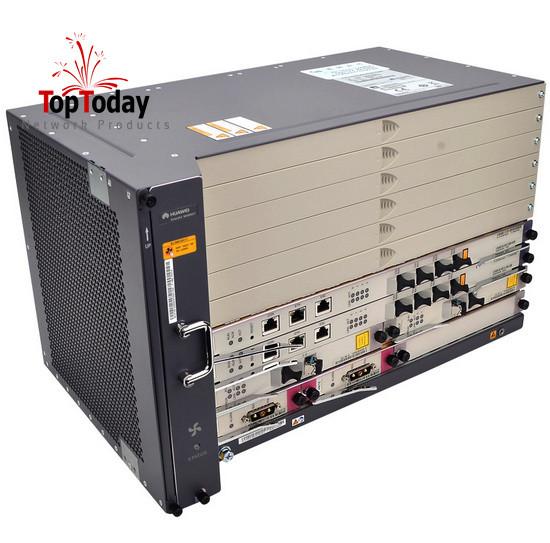

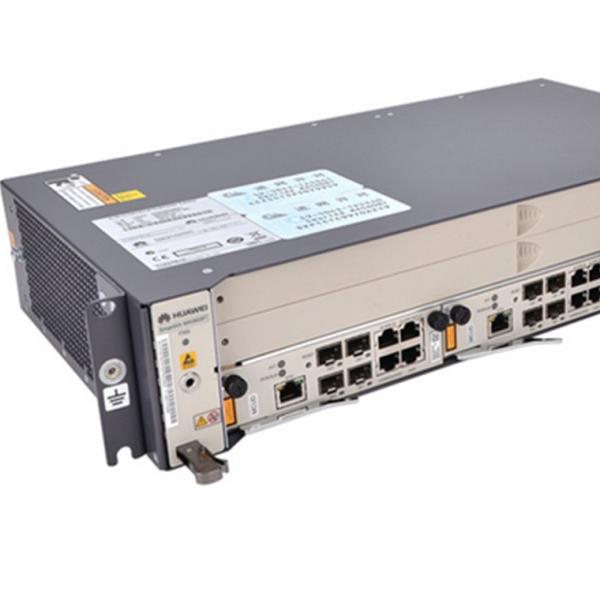

Huawei GEPON GPON OLT MA5680T MA5683T MA5608T with GPDB/GPFD EPFD Service Board
Huawei GEPON GPON OLT MA5680T MA5683T MA5608T with GPDB/GPFD EPFD Service Board
Huawei GEPON GPON OLT MA5680T MA5683T MA5608T with GPDB/GPFD EPFD Service Board
Huawei GEPON GPON OLT MA5680T MA5683T MA5608T with GPDB/GPFD EPFD Service Board
Huawei GEPON GPON OLT MA5680T MA5683T MA5608T with GPDB/GPFD EPFD Service Board
Huawei GEPON GPON OLT MA5680T MA5683T MA5608T with GPDB/GPFD EPFD Service Board
Huawei GEPON GPON OLT MA5680T MA5683T MA5608T with GPDB/GPFD EPFD Service Board
Huawei GEPON GPON OLT MA5680T MA5683T MA5608T with GPDB/GPFD EPFD Service Board
Huawei GEPON GPON OLT MA5680T MA5683T MA5608T with GPDB/GPFD EPFD Service Board
Huawei GEPON GPON OLT MA5680T MA5683T MA5608T with GPDB/GPFD EPFD Service Board
Huawei GEPON GPON OLT MA5680T MA5683T MA5608T with GPDB/GPFD EPFD Service Board
Huawei GEPON GPON OLT MA5680T MA5683T MA5608T with GPDB/GPFD EPFD Service Board
Huawei GEPON GPON OLT MA5680T MA5683T MA5608T with GPDB/GPFD EPFD Service Board
Huawei GEPON GPON OLT MA5680T MA5683T MA5608T with GPDB/GPFD EPFD Service Board
Specifications
Place of Origin :
Guangdong, China
Brand Name :
Huawei, HUAWEI
Model Number :
MA5608T
Certification :
CE RoHS FCC
MOQ :
Negotiable
Price :
Negotiable
Product name :
MA5608T
Wavelength :
1310/1550nm
Color :
Black
Application :
FTTH FTTB FTTX Networ
Material :
Stainless Steel
Selling Units :
Single item
Single package size  :
85X15X45 cm
Single gross weight :
13.000 kg
Description

Huawei GEPON GPON OLT MA5680T MA5683T MA5608T with GPDB/GPFD EPFD Service Board

Key features

· High reliability: support OLT dual-machine thermal backup, off-site disaster tolerance, upgrade business without interruption, complete Qos function, end-to-end high-reliability design;

· Multi-scene access: support a variety of E1 dedicated line access, support Fornative TDM or CESoP/SAToP function, E-LAN function, support IPTV users without convergence access;

· Smooth evolution:EPON/GPON/10G PON/40G PON common platform, support smooth evolution, meet ultra-bandwidth access;

· Green energy saving: support idle single board automatic power down, fan intelligent speed control, effectively reduce idle power consumption.

Technical specifications

The argument MA5680T(ETSI) MA5680T(IEC) MA5683T MA5608T
High × width × depth (mm). 490×275.8×447.2 442×275.8×441.7 442×283.2×263.9 442×244.5×88.1
The operating environment Temperature: -25Cto.55C
Humidity: 5%to95%.		 Temperature: -40Cto.65C
Humidity: 5%to95%.		 Temperature: -40Cto.65C
Humidity: 5%to95%.
The power parameter -48V DC input
Operating voltage range: -38.4 V to -72 V
Dual power protection is supported		 DC power supply: -38.4Vto-72V
AC power supply: 100Vto240V
support dual power protection
Backplane bus swap capacity 3.2Tbit/s 1.5Tbit/s(H801MABO)
2Tbit/s(H802MABO)		 720Gbit/s
Access capacity

· 128×10G EPON

· 128×10G GPON

· 256×EPON

· 256×GPON

· 768×P2P FE

· 768×P2P GE

· 112×10G EPON

· 112×10G GPON

· 224×EPON

· 224×GPON

· 672×P2P FE

· 672×P2P GE

· 48×10G EPON

· 48×10G GPON

· 96×EPON

· 96×GPON

· 288×P2P FE

· 288×P2P GE

· 16×10G EPON

· 16×10G GPON

· 32×EPON

· 32×GPON

· 96×P2P FE

· 96×P2P GE
The type of interface Upstream interface: 10GE light,GE optical / electrical
business interface: 10G GPON, 10G EPON, EPON, GPON, P2P FE light port,P2P GE light port
System performance

· Two-tier/three-tier line speed forwarding

· Support for Static route/RIP/OSPF/MPLS

· BITS/E1/STM-1/Ethernet clock synchronization /1588v2/1PPS-ToD and other clock synchronization parties

· GPON supports a maximum of 1:128 d.d

· The 10G PON supports a maximum of 1:256 pts

· GPON supports a maximum logical distance of 60km

· XG-PON supports a maximum logical distance of 100km
