Specifications
Place of Origin :
Guangdong, China
Brand Name :
HUAWEI
Model Number :
MA5680T
MOQ :
Negotiable
Price :
Negotiable
Certification :
FCC,CCC,CE
Product name :
MA5680T
Brand :
HUAWEI
Power supply mode :
DC or AC
MCUD :
Mini GE Control Unit
Weight (empty chassis) :
3.55kg
Selling Units :
Single item
Single package size  :
50X60X50 cm
Single gross weight :
30.000 kg
Package Type :
new in the huawei box
Description

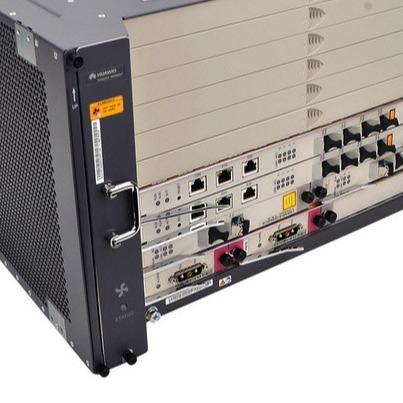

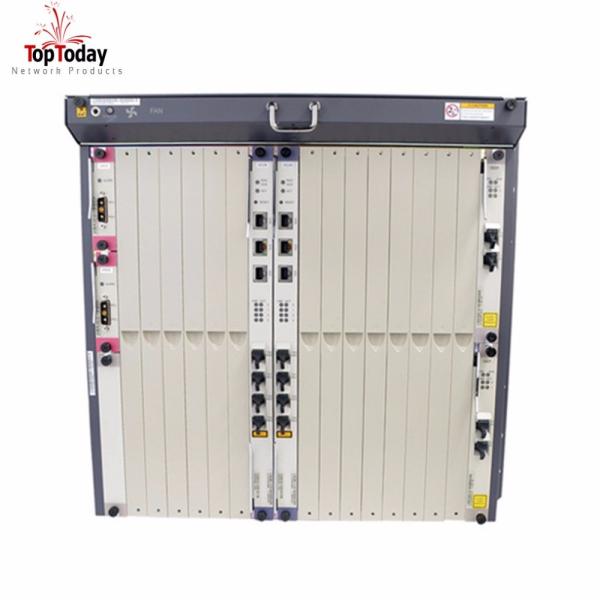

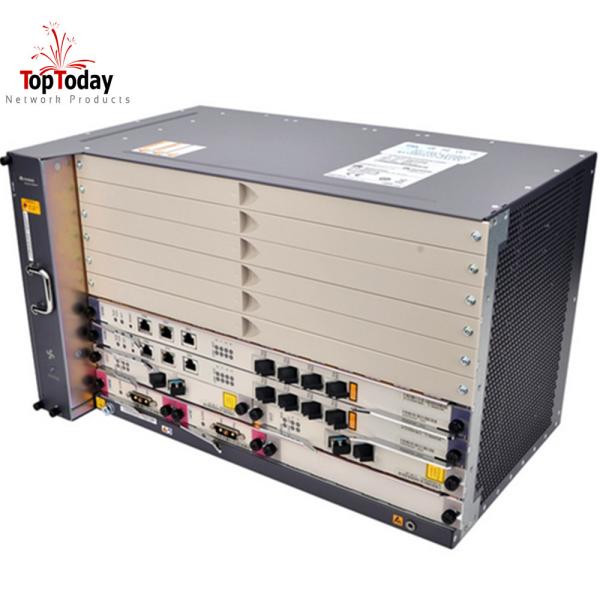

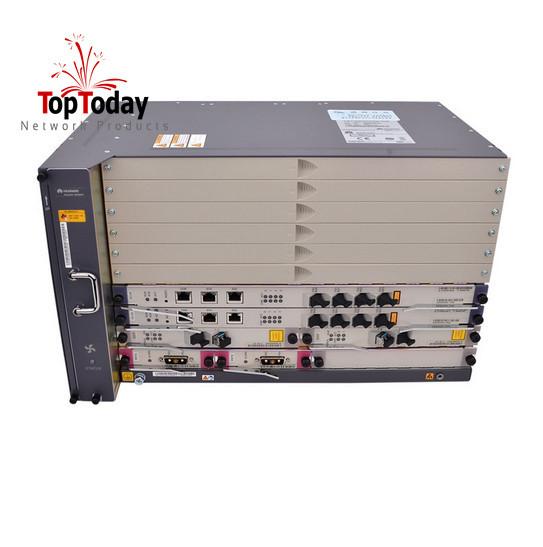

Huawei 5680T is the global first all-in-one access platform which can provide DSL and optical integrated access.It can provide high density ADSL2+, VDSL2, POTS, ISDN, PON and Ethernet fiber P2P access, triple-play service,and TDM/ATM/Ethernet leased line services for business customers.The huawei 5680T can also offer mobile backhaul with high reliability and high precision clock, and high density GE/10GE interfaces for cascading remote access equipments. MA5680T helps to simplify network architecture, to enable ,seamless migration in FTTx network and lower TCO essentially.
Product Highlight
Port Type Port Description
Upstream port

GE optical

/electrical port

All GE optical ports use the small form-factor

pluggable (SFP) optical transceivers. Through different SFP modules,

the optical ports support different transmission

distances. Single-mode SFP transceivers and multi-mode SFP

transceivers are available.

Multi-GE upstream transmission is supported to meet the multi-edge network requirements of the carrier.
10GE optical port It provides the 10GE upstream transmission function
E1 port It provides the E1 upstream transmission function.
STM-1 port

It supports the upstream transmission through the STM-1 optical port

and supports the ESFP/SFP module.

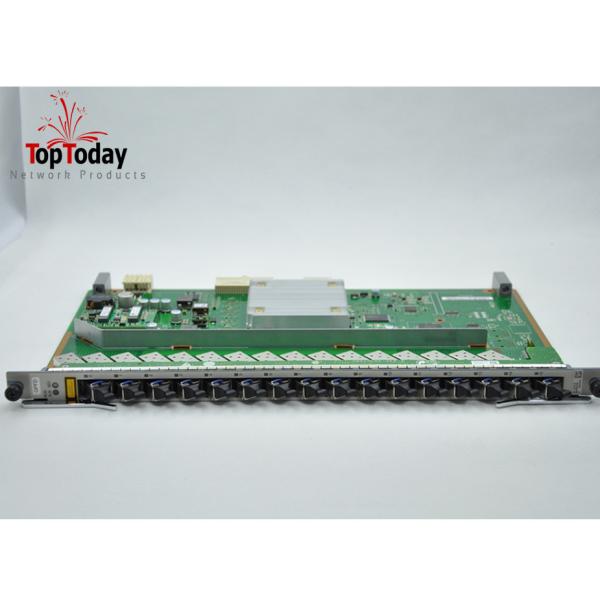

Service port GPON port

It provides the GPON access. It supports a maximum upstream rate of

1.244 Gbit/s and a maximum downstream rate of 2.488 Gbit/s
P2P optical port It provides the P2P Ethernet optical access at a rate of 100 Mbit/s.

Ethernet optical

port

 It provides the GE subtending function.
Maintenance port

Maintenance

serial port

 It is used for local and remote maintenance.

Environment

monitoring

serial port

Various environment parameters are collected by the monitoring

device and then through this port reported to the MA5680T.

Power parameter
-48V DC input
Operating voltage range: -38.4 V~ -72 V
Support dual power protection
