FTTH MA5608T MCUD1 MPWD GPBH GPFD GPBD 10ge Mini GEPON OLT
FTTH MA5608T MCUD1 MPWD GPBH GPFD GPBD 10ge Mini GEPON OLT
FTTH MA5608T MCUD1 MPWD GPBH GPFD GPBD 10ge Mini GEPON OLT
FTTH MA5608T MCUD1 MPWD GPBH GPFD GPBD 10ge Mini GEPON OLT
FTTH MA5608T MCUD1 MPWD GPBH GPFD GPBD 10ge Mini GEPON OLT
FTTH MA5608T MCUD1 MPWD GPBH GPFD GPBD 10ge Mini GEPON OLT
FTTH MA5608T MCUD1 MPWD GPBH GPFD GPBD 10ge Mini GEPON OLT
FTTH MA5608T MCUD1 MPWD GPBH GPFD GPBD 10ge Mini GEPON OLT
FTTH MA5608T MCUD1 MPWD GPBH GPFD GPBD 10ge Mini GEPON OLT
FTTH MA5608T MCUD1 MPWD GPBH GPFD GPBD 10ge Mini GEPON OLT
Specifications
Brand Name :
Huawei
Model Number :
MA5608T
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100
Delivery Time :
5-7days
Packaging Details :
new in the original bog.
Product name :
MA5608T
Weight :
13kg
Warranty :
1 year
Transmission distance :
20KM
Name :
Huawei Gpon ONU,4--16 PON/EPON OLT
Color :
Black
Type :
GPON OLT,OLT In Fiber Optic equipment
PON Capacity :
2 Ports
PRAM :
AC/DC
Description

MA5608TThe MA5608T is an integrated fiber-copper access device, and can serve as a mini-OLT or mini-DSLAM.
The MA5608T, if serving as a mini-OLT, supports GPON, 10G GPON, and P2P access modes. It can be installed at a residential district or a street side, which reduces the usage of ODN backbone optical cables, lowers the ODN deployment cost and difficulty, and minimizes the CO equipment room space.
The MA5608T, if serving as a mini-DSLAM, supports ADSL2+, VDSL2, SHDSL, and POTS access modes and provides Internet access, voice, and video services.

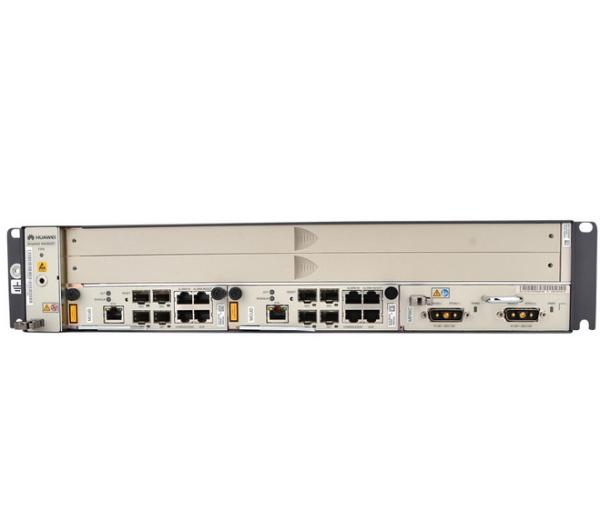

Figure 4 shows the appearance of the MA5608T.
Figure 4 Appearance of the MA5608T configured with the xPON boards

The MA5600T/MA5603T/MA5608T, functioning as an integrated optical-copper access equipment, provides the integrated broadband and narrowband access and FTTx optical access services that feature high rate, high bandwidth, and high quality. It can function as an OLT, MSAN, or IP DSLAM. The MA5600T is a large-capacity device, the MA5603T is a mediumcapacity
device and the MA5608T is a small-capacity device.

  • Supports the 10G GPON and GPON access service. All the three can function as an optical line terminal (OLT) in the GPON system, working with the optical network terminal (ONT) or other optical network units (ONUs).
  • Supports the point-to-point (P2P) FE/GE optical access. The P2P board is mainly used for cascading, and it can also provide users with P2P FTTH access by cooperating with ONTs.
  • Provides the voice service solution based on the Session Initiation Protocol (SIP) and H. 248, supports the POTS port to implement the voice service, fax service, narrowband modem service, and various supplementary services.
  • Provides the E1/N*64k private line service through the TDM SHDSL board. And H802EDTB board supports the TDM SHDSL feature.
  • Supports broadband access services such as ADSL2+, VDSL2, and SHDSL, enhancing the xDSL function.

In the upstream direction, the device is generally connected to the IP/MPLS network through the Ethernet (GE/10GE) port.

Boards supported by the MA5608T
Board Type Board Full Name Function
Control board H801MCUD Mini Control Unit Board
  • System control and management unit
  • Local and remote maintenance
  • Active/standby switchover
  • Load sharing
  • Synchronization with the Ethernet clock
  • GE or 10GE channel to the service board
  • Environmental monitoring parameters
  • Seven alarm digital inputs (DIs) and one alarm digital output (DO)
  • Temperature reading and high temperature alarming
  • Monitoring and management of the fan tray

Four SFP GE ports for upstream transmission or cascading
H801MCUD1 Mini Control Unit Board
  • System control and management unit
  • Local and remote maintenance
  • Active/standby switchover
  • Load sharing
  • Synchronous Ethernet
  • GE or 10GE channel to the service board
  • Environmental monitoring parameters
  • Seven inputs of alarm digital parameters and one output of alarm digital parameters
  • Temperature reading and high-temperature alarm
  • Fan tray monitoring and management
  • Two SFP+ 10GE ports and two SFP GE ports for upstream transmission or cascading
  • One input of BITS clock signals and one output of BITS clock signals
  • One input of 1PPS+TOD time signals and one output of 1PPS+TOD time signals

Stratum-3 clock
Power interface board H801MPWC Double DC power board
  • Two -48 V DC inputs
  • Filtering and current-limiting for the power input port
  • Detection of input undervoltage, power supply availability, and power supply faults
  • Reporting of the protection alarm together with board ready status

Indication of power status
H801MPWD AC power board
  • Input AC voltage: -100 V to -240 V
  • Input AC frequency: 50 Hz to 60 Hz
  • Single-phase three-wire AC power input
  • Battery port, a 3V3 terminal socket, supporting DC input power
  • Lead-acid battery input, reverse polarity protection, and fuse protection
  • Output DC power voltage: -48 V (adjustable from -42 V to -57.6 V)
  • Rated output power: 400 W
  • Alarm monitoring
  • Enabling and disabling of the rectifier module; equalized and float charging for the rectifier module

Battery low voltage disconnection; charge and discharge management of storage batteries
Service board GPON interface board H805GPBD 8-port GPON OLT interface board
  • Eight GPON SFP ports (one-fiber bi-directional port)
  • A maximum of 128 ONTs for each GPON port
  • Class B+ and class C+ optical modules
  • Received signal strength indicator (RSSI) detection and controlled optical signal transmission of the optical module
  • ONU-based shaping

Temperature query and board power-off in case of a high temperature
H802GPFD 16-port GPON OLT Interface Board
  • Sixteen GPON SFP ports
  • A maximum of 1:128 split ratio
  • Class B+ and Class C+ optical modules
  • Received signal strength indicator (RSSI) detection and controlled optical signal transmission of the optical module
  • ONU-based queque shaping
  • Temperature query and high temperature alarm

Automatic power shutdown in case of a high temperature
SPU board H801SPUB service processing unit board
  • 10 Gbit/s (unidirectional 10 Gbit/s, bidirectional 5 Gbit/s) MPLS switching capability
  • One 10GE attachment unit interface (XAUI) to each control board

Active/standby switchover of the control boards
Voice board H802EDTB 16-port T1 service board
  • 16 channels of E1/T1 access services
  • Independent upstream and downstream transmission of each channel of E1/T1 clock signals
  • Configuration of the Tx clock source of an E1/T1 port
  • Specifying the line clock of an E1/T1 port as the system clock source
  • Timeslot binding
  • TDM PWE3 service

CPE mode
P2P interface board H802OPGD 48-port GE/FE optical interface board
  • 48 (CSFP) or 24 (SFP) channels of GE/FE P2P optical access services
  • Cascading and aggregation of DSLAMs or MxUs
  • Synchronous Ethernet clock issuing

Two-channel one-fiber bi-directional CSFP, one-channel two-fiber bi-directional SFP, and one-channel one-fiber bi-directional SFP optical modules
Ethernet service access board H801ETHB Ethernet service access board
  • Ethernet upstream transmission
  • Ethernet cascading
  • Eight SFP GE optical modules

Intra-board aggregation

FTTH MA5608T MCUD1 MPWD GPBH GPFD GPBD 10ge Mini GEPON OLTFTTH MA5608T MCUD1 MPWD GPBH GPFD GPBD 10ge Mini GEPON OLT

Packaging & Shipping

Packing

1. All products will be packed in carton, so the product can get effective protection to avoid damage.

2. Packaging according to customer requirement.

Shipping

1. We shipping via DHL / FedEx / TNT etc for samll orders. Yow can get your packages in about 3-5 days all over the world.

2. For big order, we will arrange Air cargo for your shipment, so it will be much cheaper than DHL, UPS etc.

3. You can choose your own shipping agent, we will provide good cooperation for it.
