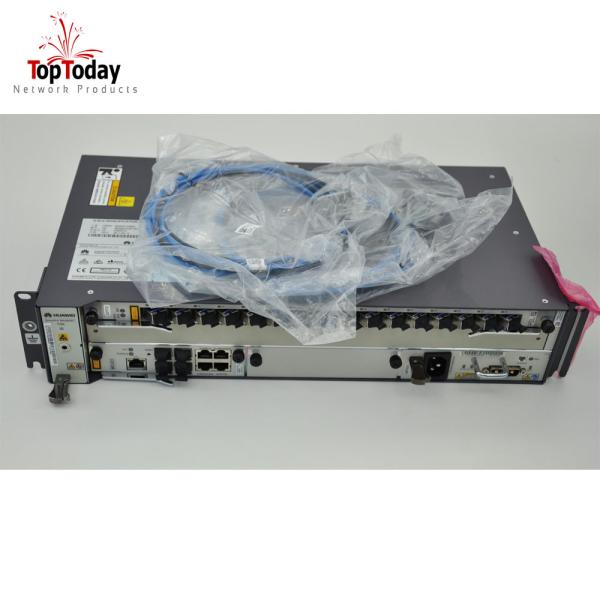

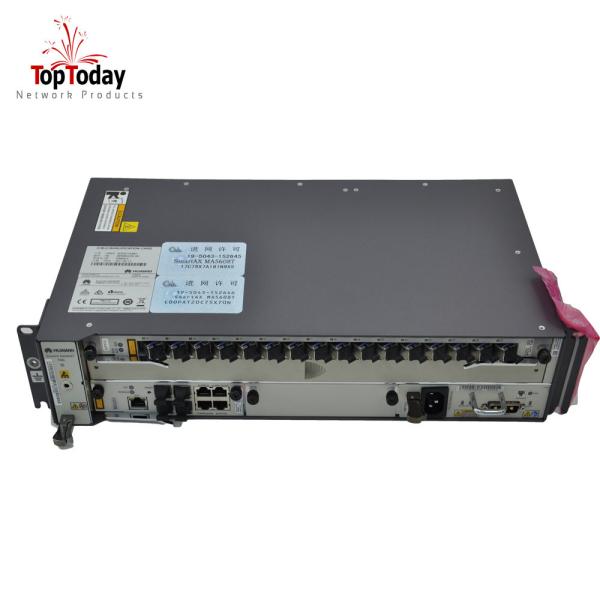

Original 1550nm 16 Ports MA5608T Mini OLT Huawei for FTTH
Original 1550nm 16 Ports MA5608T Mini OLT Huawei for FTTH
Original 1550nm 16 Ports MA5608T Mini OLT Huawei for FTTH
Original 1550nm 16 Ports MA5608T Mini OLT Huawei for FTTH
Original 1550nm 16 Ports MA5608T Mini OLT Huawei for FTTH
Original 1550nm 16 Ports MA5608T Mini OLT Huawei for FTTH
Original 1550nm 16 Ports MA5608T Mini OLT Huawei for FTTH
Original 1550nm 16 Ports MA5608T Mini OLT Huawei for FTTH
Specifications
Place of Origin :
Guangdong, China
Brand Name :
HuaWei
Model Number :
MA5608T
Certification :
FCC,CCC,CE
MOQ :
Negotiable
Price :
Negotiable
Product name :
MA5608T
Wavelength :
1310/1550nm
Color :
Black
Application :
FTTH FTTB FTTX Networ
Material :
Stainless Steel
Selling Units :
Single item
Single package size  :
85X15X45 cm
Single gross weight :
13.000 kg
Package Type :
NEW IN THE BOX.
Description

Original MA5608T Mini OLT Huawei
Specifications
Dimensions
MA5600T Chassis (10U): 530mm×275.8mm×447.2 mm
MA5603U Chassis (8U): 352.8mm×305mm×536mm
MA5608T Chassis (2U): 442mm×233.5mm×88.1mm
Power Supply
MA5600T/MA5603U: -48V or -60V DC powering via redundant power feeds, working voltage range: -38.4V to -72V
MA5608T supports both DC/AC power supply mode and supports dual power protection and battery backup while using the AC power; DC: -38.4VDC to -72VDC; AC: 100V to 240V
Running Environment
MA5600T ambient working temperature : -25C to +55C
MA5603U/MA5608T ambient working temperature : -40C to +65C; -40º F to +149º F
GPON Features of MA5608T
• 16 ports per card or 8 ports per card
• Robust Compliance to G.984 Series standards with 2.5/1.2 Gbps downstream and 1.2Gbps line
speed performance
• Support for B+ or C+ optical modules (SFPs) with max 40km differential distance
• Up to 1:128 split ratio per GPON port
• Optical Power Monitoring, Real Time Rogue ONT detection/isolation
XG-PON1 Features of MA5608T
• 4 ports per card
• Fully compatible with GPON - compliance G.987 Series standards with 10/2.5 Gbps line speed
performance
• Supports XFP optical modules
VDSL2+POTS Combo of MA5608T
• 48 VDSL2 and POTS integrated ports with up to 17a profile
• Two-pair bonding for maximum speed
• G.INP (G.998.4) support for re-transmission at the physical layer
• Built-in support for SELT, DELT, and MELT
• POTS line Loop-Start Operation
• Ringing Mode – Balanced ringing with -15VDC offset on “Ring”
• Multiple CODECs – G.711 (µ-Law and A-Law), G.729, G.723, G.726

Powering Options: AC: 100V to 240V

Dimensions (Height x Width x Depth):3.47in x 17.4in x 9.63in

Operating Temperature:-40º F to +149

Storage Temperature:-40º F to +158º

The MA5608T Mini OLT is designed to address Fiber to the premise (FTTP) or deep fiber deployment scenarios where a large OLT chassis may not be the best fit for a variety of reasons. Huawei's mini OLT MA5608T is designed to be the perfect complement to the other MA5600 series larger OLTs and offers the same carrier grade features and performance.

MA5608T's compact and front access design make it an ideal solution for deployments in locations such as space-constrained huts, outdoor cabinets or building basements. It has AC and DC powering options,extended temperature range, and offers easy installation.

Designed to support ever-increasing bandwidth demand, MA5608T has 200 Gbps backplane. The combination of the high-capacity and line interfaces with best-in-class performance allows the operators to deliver a range of services for maximum revenue at highly competitive cost points.

Original 1550nm 16 Ports MA5608T Mini OLT Huawei for FTTH

Cooling:Two multispeed fans, providing left to right forced air f

Weight:12 kg (3.55 kg) emp

Operating Humidity:5% to 85%, non-condensing, Altitude: 197 ft (60 m)below sea level to 13,123 ft (4,000 m) above sea leRegulatory and Safety:UL listed, FCC, N
