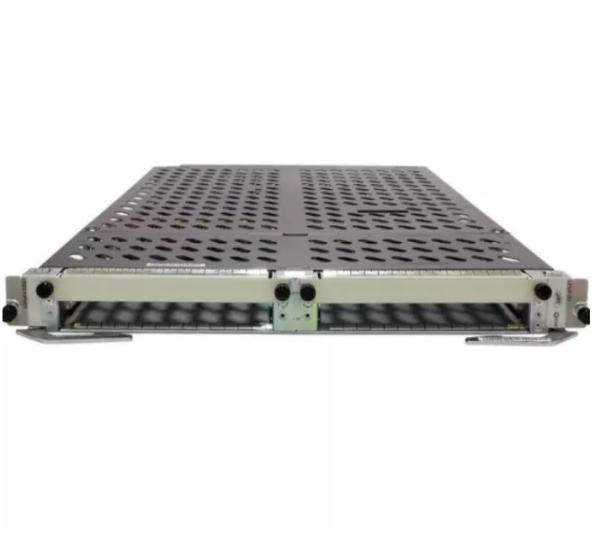

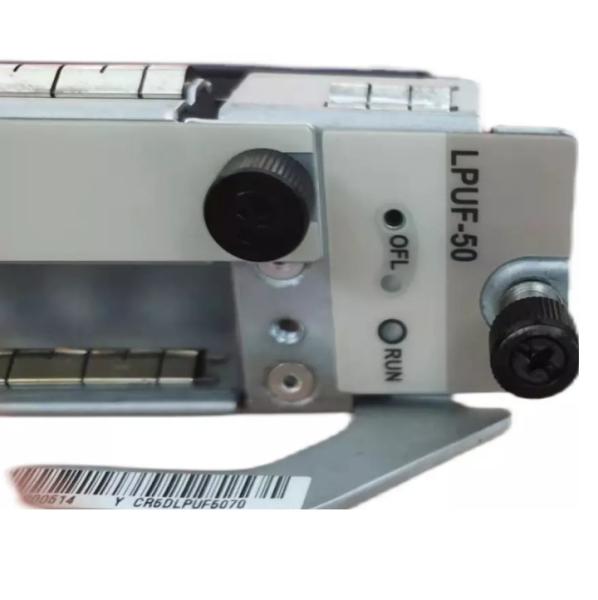

CR5DLPUF5070 LPUF 50 Line Processing Unit HuaWei NE40E Bandwidth Flexible Card
CR5DLPUF5070 LPUF 50 Line Processing Unit HuaWei NE40E Bandwidth Flexible Card
CR5DLPUF5070 LPUF 50 Line Processing Unit HuaWei NE40E Bandwidth Flexible Card
CR5DLPUF5070 LPUF 50 Line Processing Unit HuaWei NE40E Bandwidth Flexible Card
Specifications
Brand Name :
HuaWei
Model Number :
CR5DLPUF5070/LPUF-50
Certification :
FCC,CCC,CE
Place of Origin :
Guangdong, China
MOQ :
Negotiable
Price :
Negotiable
Model number :
CR5DLPUF5070/LPUF-50
Weight(kg) :
8.2kg
Net Dimension(D*W*H mm) :
40.1(H) x 399.2(W) x 535.6(D)
Power consumption (typical value)(W) :
169W
Long-term ambient temperature: :
0°C to 45°C(32°F to 113°F)
Storage temperature :
-40°C to +70°C(-40°F to 158°F)
Warranty :
1 Year
Product Family :
Router
Description

CR5DLPUF5070 LPUF 50 Line Processing Unit HuaWei NE40E Bandwidth Flexible Card

CR5DLPUF5070 HuaWei NE40E 50Gbit/s Bandwidth Flexible Card Line Processing Unit(LPUF-50 four sub-slots)

Overview

CR5DLPUF5070/LPUF-50 is a flexible line processing card applied to HuaWei NE40E, supports a maximum bandwidth of 50 Gbit/s.

CR5DLPUF5070 comes with original box, if purchase together with router, it will be will inserted into the router by default when delivery, to economical volume weight; If need delivery separately with original box, please contact Thunder-link.com sales team in advance.

Feature

* 50Gbit/s bandwidth flexible card line processing unit(LPUF-50,four sub-slots) on HW NE40E.

* Provides four slots that can hold two full-height FPICs or four half-height FPICs.

* Supports a maximum bandwidth of 50 Gbit/s.

* Automatic recovery of configurations.

* Mixed use of different types of FPICs.

Tech Specs

Specifications
Reliability and availability

Software featuresNonstop Forwarding (NSF)

MPLS Fast Reroute (FRR)

Hardware featuresThe LPUF-50 or

LPUF-50-L supports hot swap.

The FPIC of the LPUF-50 or

LPUF-50-L supports hot swap
NMS

Enhanced command-line interface

SNMP and MIB support
Operating conditions

Long-term ambient temperature:

0°C to 45°C(32°F to 113°F)

Short-term ambient temperature:

-5°C to +55°C(23°F to 131°F)

Long-term relative humidity: 5% to 85%

Short-term relative humidity: 5% to 95%
Storage conditions

Storage temperature:

-40°C to +70°C(-40°F to 158°F)

Storage humidity: 5% to 95%
Dimensions(mm) 40.1(H) x 399.2(W) x 535.6(D)
Weight(kg) 8.2kg
Power consumption (typical value)(W) 169W

CR5DLPUF5070 LPUF 50 Line Processing Unit HuaWei NE40E Bandwidth Flexible CardCR5DLPUF5070 LPUF 50 Line Processing Unit HuaWei NE40E Bandwidth Flexible Card

FAQ

1. what's the way to pay?

We support T/T, WESTERN UNION,Paypal

2.What's your shipping way?

Shopped by air sea express

3. What is the product used for packing?

We always use catron, Unless you have different packing needs
